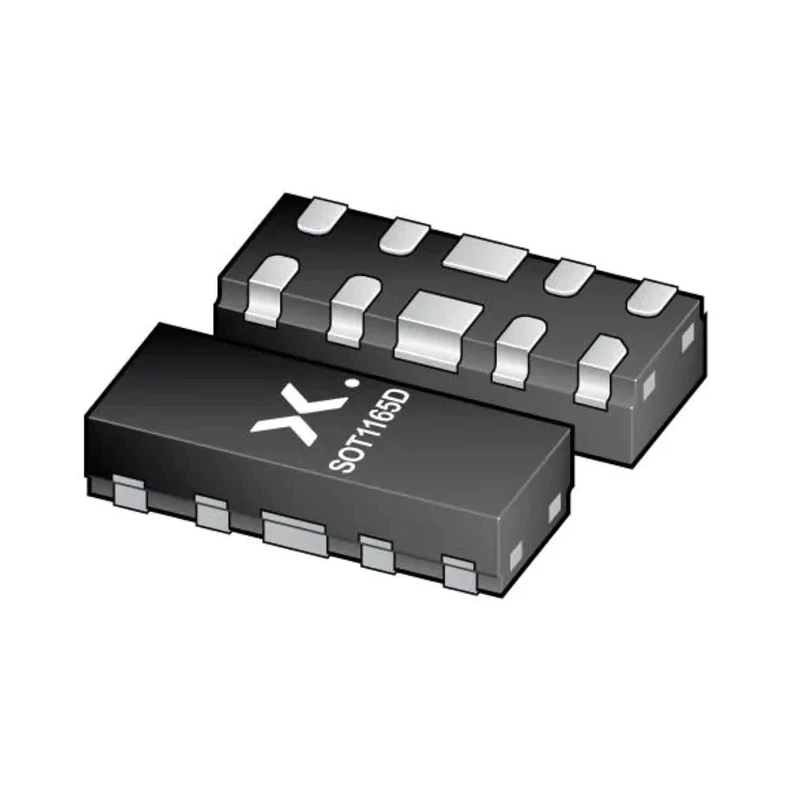

Nexperia Uni-Directional ESD Protection Diode 10-Pin DFN2510D Surface Mount 6V Breakdown Voltage PESD4USB5U-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB5U-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB5U-TTS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Protects high-speed interfaces from ElectroStatic Discharge.
- Uni-directional design suitable for USB 2.0 and SuperSpeed USB 3.2 at 10 Gbps.
- Compact dimensions of 2.5mm length, 1mm width, and 0.75mm height.
- Maximum reverse stand-off voltage of 5V and clamping voltage of 3.5V.
- Rated for maximum peak pulse current of 7A for strong surge protection.
- Supports automotive applications meeting AEC-Q101 standard.
- Operates across wide temperature range from -55°C to 150°C.
- Designed with very low line capacitance of 0.5 pF per channel for signal integrity.
Product Description
Nexperia PESD4USB5U-TTSX uni-directional ESD Protection Diode is a surface mount semiconductor designed to protect sensitive high-speed electronic interfaces such as USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, and other digital video and data interfaces from electrostatic discharge (ESD) and transient voltage surges.
This device comes in a compact 10-pin DFN2510D package measuring 2.5mm in length, 1mm in width, and 0.75mm in height. It offers a minimum breakdown voltage (Vbr) of 6V, maximum reverse stand-off voltage (Vwm) of 5V, and a clamping voltage (Vc) of 3.5V to efficiently clamp voltage spikes and protect connected electronics. The diode supports a peak pulse current (Ippm) rating of 7A and has an exceptionally low line capacitance of 0.5 pF per channel, ensuring preservation of signal integrity in high-frequency applications.
Designed to meet automotive-grade quality under the AEC-Q101 standard, it is suitable for use in automotive A/V monitors, displays, cameras, and infotainment systems. The device operates reliably in a wide temperature range from -55°C to 150°C and complies with ESD protection standards ISO10605 and IEC61000-4-2 Level 4, providing robust protection against ESD events up to ±15 kV.
Its surface mount construction simplifies integration into circuit boards with matched 0.5 mm trace spacing and side-wettable flanks (SWF) ideal for assembly. This diode is ideal for industrial, automotive, laboratory, and consumer electronics circuits requiring reliable ESD protection for high-speed data communication lines.
Protects high-speed signal lines from electrostatic discharge. Uni-directional design for data interfaces like USB and HDMI. Compact DFN2510D surface-mount package. 6V breakdown and 5V maximum reverse voltage ratings. 7A peak pulse current capability.
Automotive AEC-Q101 compliant. Operational temperature range from -55°C to 150°C. Standards compliant: ISO10605, IEC61000-4-2 Level 4. Low capacitance preserves signal integrity.
Explore the range of Nexperia semiconductors and electronic components at EnvMart, designed for industrial, automotive, and consumer electronic applications requiring high reliability and performance.
