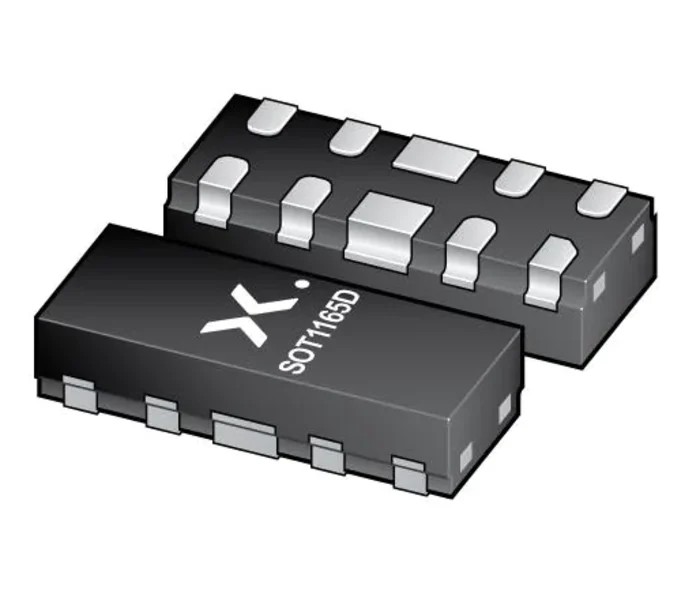

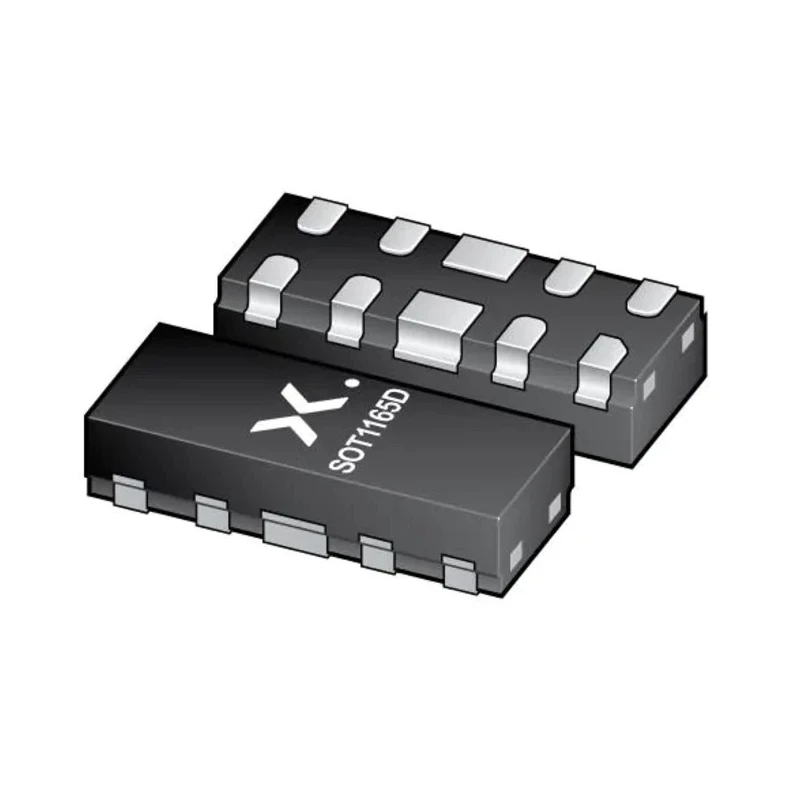

Nexperia Bi-Directional ESD Protection for High Speed Interface 10-Pin DFN2510D PESD4USB3B-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3B-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Protects sensitive electronics from electrostatic discharge up to ±15 kV.
- Features low line capacitance of 0.5 pF per channel for high-speed data integrity.
- Extremely low clamping voltage of 5.5 V ensures reliable surge protection.
- Supports automotive standards including AEC-Q101 for robustness.
- Compact 10-pin DFN2510D surface mount package with 2.5 mm length and 1 mm width.
- Operates reliably in temperature range from -55°C to 150°C.
- Clamping current maximum rating of 7 A handles transient surges effectively.
- Matched 0.5 mm trace spacing and side-wettable flanks optimized for PCB assembly.
Product Description
Nexperia PESD4USB3B-TTSX is a bi-directional ESD Protection Diode designed to safeguard high-speed interface circuits. This device supports technologies including SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, Display Port, eSATA, LVDS, and GMSL SerDes links, protecting against damaging electrostatic discharge events.
Featuring a very low line capacitance of 0.5 pF per channel, it ensures signal integrity without degrading high-frequency performance. The device offers an outstanding ESD protection level of up to ±15 kV according to IEC 61000-4-2 standards, making it highly reliable for industrial, automotive, and consumer electronics applications.
Constructed in a compact 10-pin DFN2510D surface mount package (dimensions 2.5 mm x 1 mm x 0.75 mm), it is ideal for high-density PCB layouts. It operates over a wide temperature range from -55°C to 150°C, suitable for harsh automotive and industrial environments.
The device has a maximum peak pulse current rating of 7 A and a clamping voltage of 5.5 V, providing effective suppression of transient voltage spikes. Side-wettable flanks and matched 0.5 mm trace spacing facilitate automated assembly processes.
This component meets automotive AEC-Q101 standards, confirming its suitability for automotive A/V monitors, displays, cameras, and infotainment systems, including USB 2.0, USB 3.2, and HDMI 2.0 interfaces.
Bi-directional ESD protection ensures robust signal line safety. Low capacitance minimizes impact on high-speed data transfer. High peak pulse current and clamping voltage ratings for transient suppression. Compact DFN2510D package supports space-saving PCB designs.
Wide operating temperature range for automotive and industrial use. Complies with industry standards ISO10605 and IEC61000-4-2. Suitable for high-speed interface protection including USB 3.2, HDMI, and LVDS. Side-wettable flanks enhance soldering reliability in manufacturing.
AEC-Q101 automotive qualified for enhanced quality and durability. Explore more semiconductor and ESD protection components on EnvMart to ensure optimal circuit protection and device longevity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
The clamping voltage of this ESD protection diode is 5.5 V.
This model has a pin count of 10.
It comes in a compact 10-pin DFN2510D surface mount package.
The minimum breakdown voltage for this device is 6 V.
This ESD protection diode complies with the AEC-Q101 automotive standard.
The maximum peak pulse current rating is 7 A.
This device supports USB 2, USB 3.2, HDMI 2.0, Display Port, eSATA, LVDS, and GMSL SerDes links.
The operating temperature range is from -55°C to 150°C.
It complies with ISO10605 and IEC61000-4-2 standards for ESD protection.
The low line capacitance of 0.5 pF per channel ensures high-speed data integrity without degrading performance.
The side-wettable flanks enhance soldering reliability during automated assembly processes.
