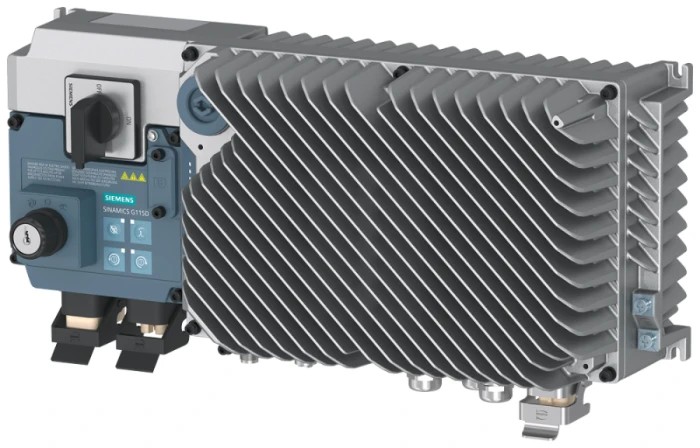

Siemens Inverter Drive, 4 kW Power Rating, 3 Phase, SINAMICS G115D Series, Panel Mount, IP66 IP65 6SL3520-3XD04-0AB0

Siemens 6SL3520-3XD04-0AB0 Inverter Drive is a high-performance 4 kW power device designed for industrial automation and control applications. This inverter drive, part of the SINAMICS G115D Series, supports 3 phase power and is optimized for horizontal conveyor system applications requiring simple speed control to advanced encoderless vector control.

The converter supports SIMOGEAR 2KJ8 geared motors and can be paired with three phase asynchronous motors of efficiency class IE3 or high efficiency synchronous reluctance motors of efficiency class IE4, enhancing energy efficiency across operations.

Featuring panel mount type installation and robust IP66 and IP65 ingress protection ratings, this inverter drive is suitable for harsh industrial environments. The drive incorporates integrated safety technologies, including the Safe Torque Off (STO) function with fail-safe digital input (F-DI) and PROFIsafe communication protocols, ensuring high safety standards during operation.

With a supply voltage range from 380V to 480V and a maximum output current of 20.4 A, the device supports versatile motor control up to an output frequency of 550 Hz. The temperature operating range spans from -30°C to 55°C, allowing reliable use in challenging conditions.

The compact overall width of 380 mm and depth of 129 mm mean the drive requires no control cabinet, enabling space-efficient machine installation with lower cooling demands. Conformance to international standards such as SEMI F47, REACH, KCC, EAC, C-Tick (RCM), and CE attests to the product’s reliability and regulatory compliance.

Supports panel mount installation for compact and easy setup. Ensures energy-efficient motor operation with IE3 and IE4 class compatibility. Incorporates Safe Torque Off (STO) safety function and fail-safe digital inputs.

Handles output frequency up to 550 Hz for flexible motor speed management. Operates reliably between -30°C and 55°C ambient temperatures. Designed without need for control cabinet to save machine space. IP66 and IP65 protection enables rugged use in industrial environments.

Manufactured in the United Kingdom, ensuring rigorous quality standards. Complies with SEMI F47, REACH, KCC, EAC, C-Tick (RCM), and CE certifications.

This inverter drive is ideal for industrial, manufacturing, conveyor system, automation, and process control applications requiring a robust, efficient, and safe variable speed motor controller. Explore EnvMart’s selection of Siemens Inverter Drives and automation products to find compatible components and engineered solutions for optimized operations.
