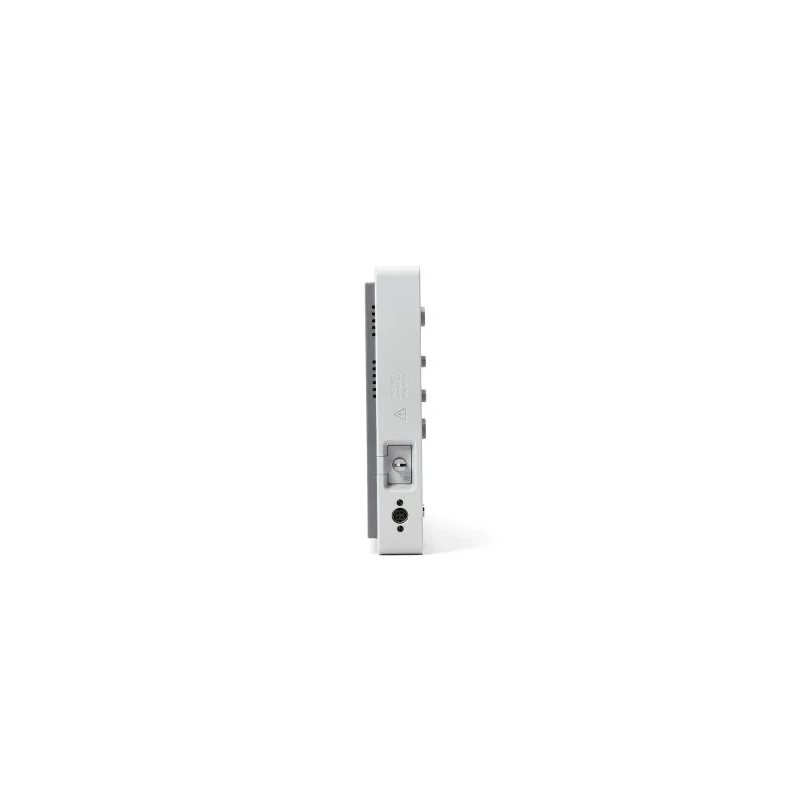

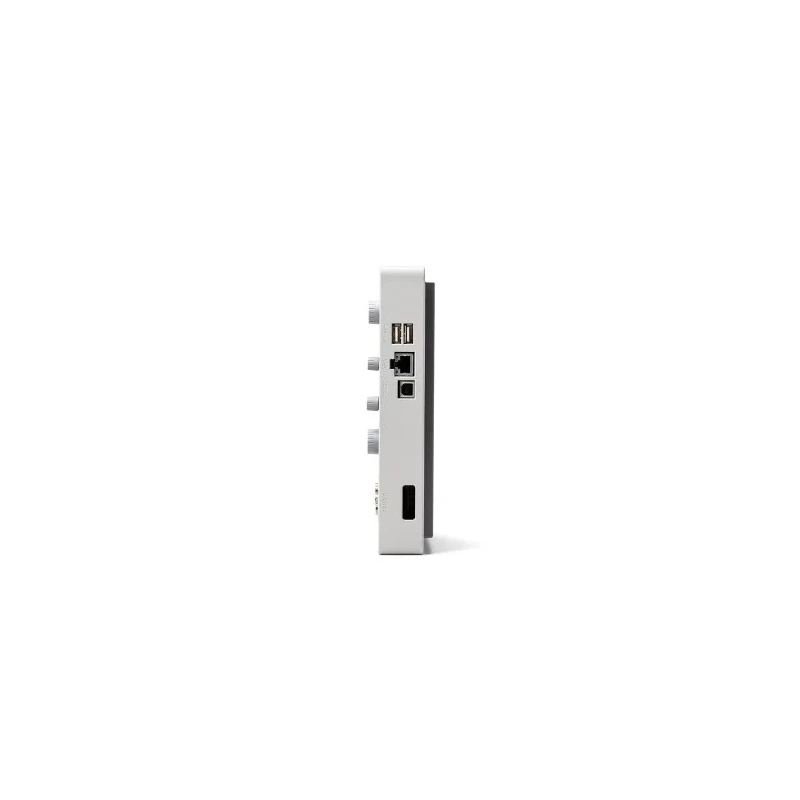

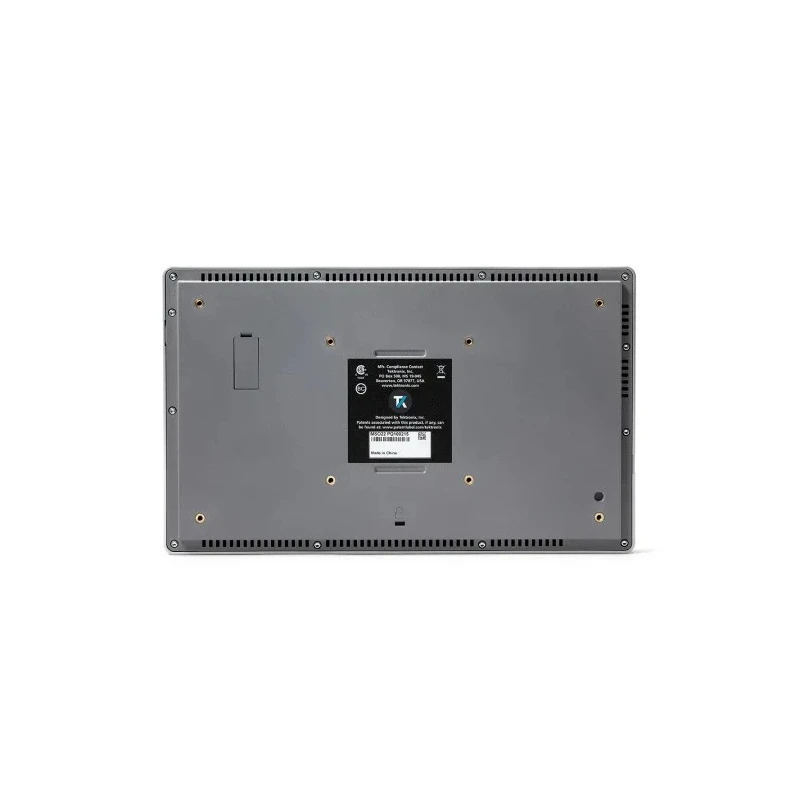

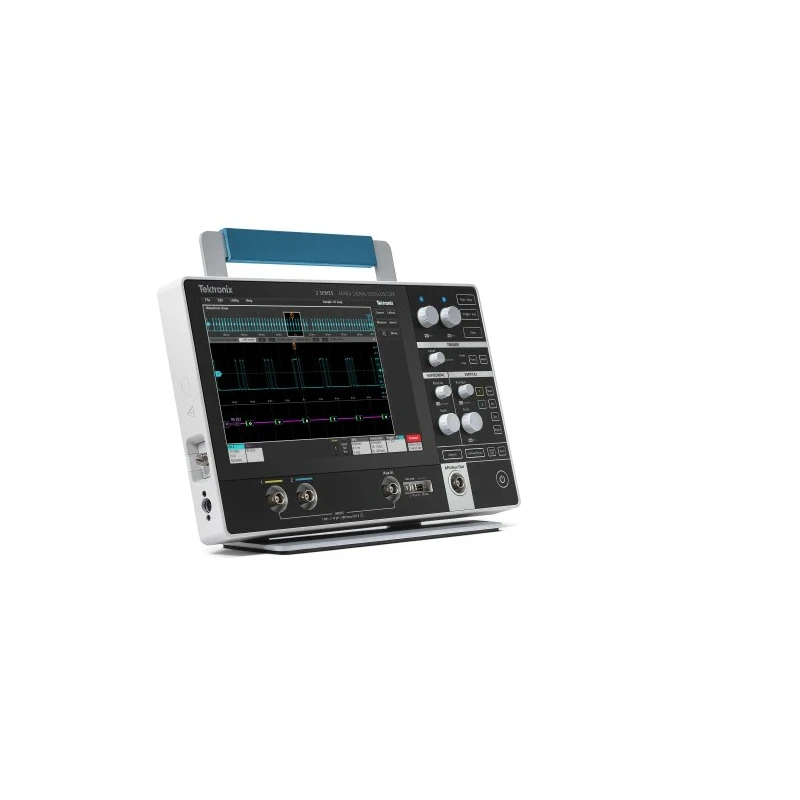

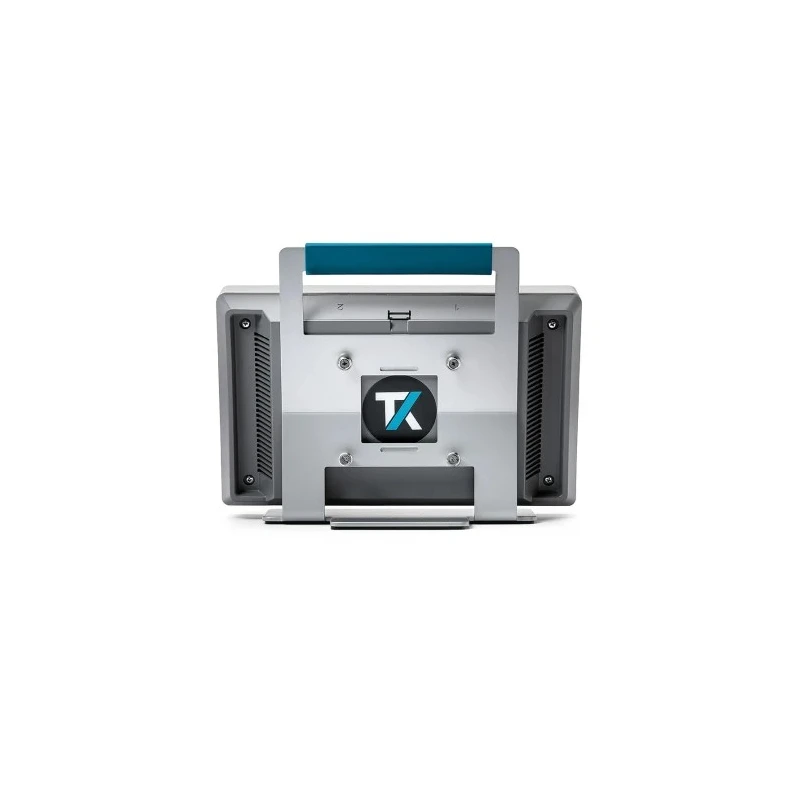

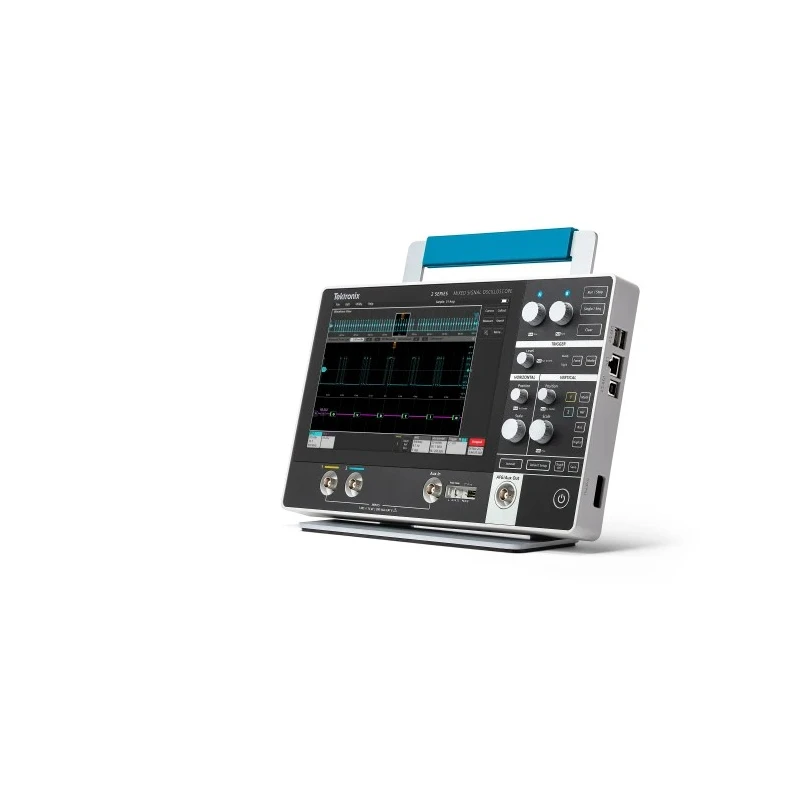

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 2 Channel 200 MHz Bandwidth 10.1-inch MSO22 2-BW-200
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO22 2-BW-200 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 200MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 2 |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | CE, RoHS, UL |
| Safety Category Level | CAT II |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |

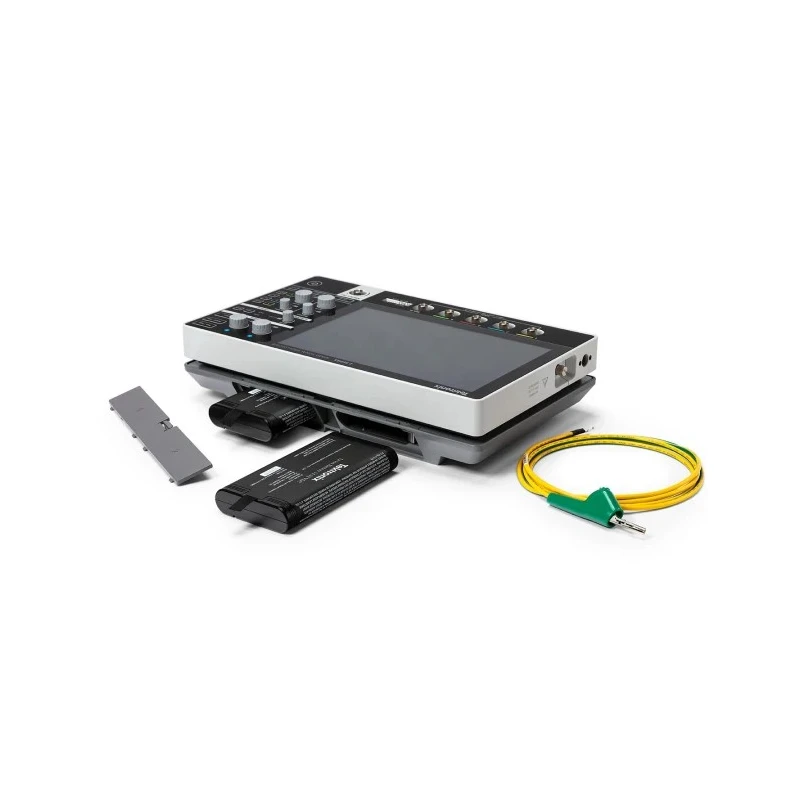

| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Compact and lightweight design enables easy bench and field use.
- 10.1-inch capacitive touchscreen with a simplified user interface.
- Optional battery pack supports up to two hot-swappable Lithium-ion batteries.
- Mixed signal capability with CAN, I2C, SPI, UART, USB interfaces for versatile testing.
- VESA mount compatibility saves bench space and enables flexible installation.
- Built-in VNC server for remote viewing and control from PC, tablet, or phone.
- Includes 200 MHz, 10x passive probes, instrument stand, and calibration certificate.
- Safety rated CAT II with CE, RoHS, and UL standards compliance.
Product Description
Tektronix MSO22 2-BW-200 Ultra Compact Mixed Signal Oscilloscope is designed for electronic debugging and testing with 2 analog channels and 200 MHz bandwidth. Featuring a 10.1-inch intuitive capacitive touchscreen, it combines portability with advanced functionality suitable for laboratory, industrial, and field test applications.
The oscilloscope supports mixed signal measurements with interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB. Optional battery packs with Lithium-ion technology allow for up to 8 hours of unplugged testing, ensuring mobility for on-site diagnostics.
Its compact form factor (210 mm height, 344 mm width, 40.4 mm depth) and lightweight design (1.8 kg instrument only) enable efficient bench space usage. Compatibility with VESA mounts allows integration with standard mounting accessories.
Additional features include a built-in VNC server to remotely view and control the oscilloscope from external devices. The product complies with safety standards CE, RoHS, and UL, and holds a CAT II safety category rating.
Compact and lightweight for portable diagnostics. Large 10.1-inch capacitive touch screen enabling easy operation. Mixed signal capabilities with broad interface support. Battery-powered with optional hot-swappable packs for field usage.
VESA mount compatible for flexible installation options. Built-in VNC server for remote access and control. Includes probes, instrument stand, external power supply, and calibration certification.
This oscilloscope is ideal for industrial, laboratory, manufacturing, and electronics development test environments. It offers performance without compromising space, meeting the needs of versatile test and measurement applications.
Explore more Oscilloscopes and test instruments to enhance your instrumentation suite on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix MSO22 2-BW-200 has a bandwidth of 200 MHz.
This model supports 2 analog channels and includes 16 digital channels.
The dimensions of this unit are 210 mm in height, 344 mm in width, and 40.4 mm in depth.
It features a 10.1-inch capacitive touch display.
The instrument weighs 1.8 kg without the battery pack.
It supports CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB interfaces.
Yes, it is VESA mount compatible, allowing for flexible installation options.
It complies with CE, RoHS, and UL safety standards and has a CAT II safety category rating.
Included accessories are 200 MHz, 10x passive probes, an instrument stand, and a calibration certificate.
It is suitable for laboratory, industrial, manufacturing, and electronics development test environments.
Yes, it has a built-in VNC server that allows remote viewing and control from a PC, tablet, or phone.
