Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 2 Channels 350 MHz Bandwidth MSO22 2-BW-350
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 8h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO22 2-BW-350 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 350MHz |
| Series | 2 Series MSO |
| Screen Size | 10.1 in |
| Number Of Channels | 2 |
| Vertical Resolution | 1 (Digital) bit, 8 (Analogue) bit |
| Interface Type | CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB |
| Oscilloscope Type | Ultra Compact |
| Digital Channels | 16 |
| Standards/Approvals | CE, RoHS, UL |
| Safety Category Level | CAT II |
| Calibrated | UKAS |
| Oscilloscope Form | Mixed Signal |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |

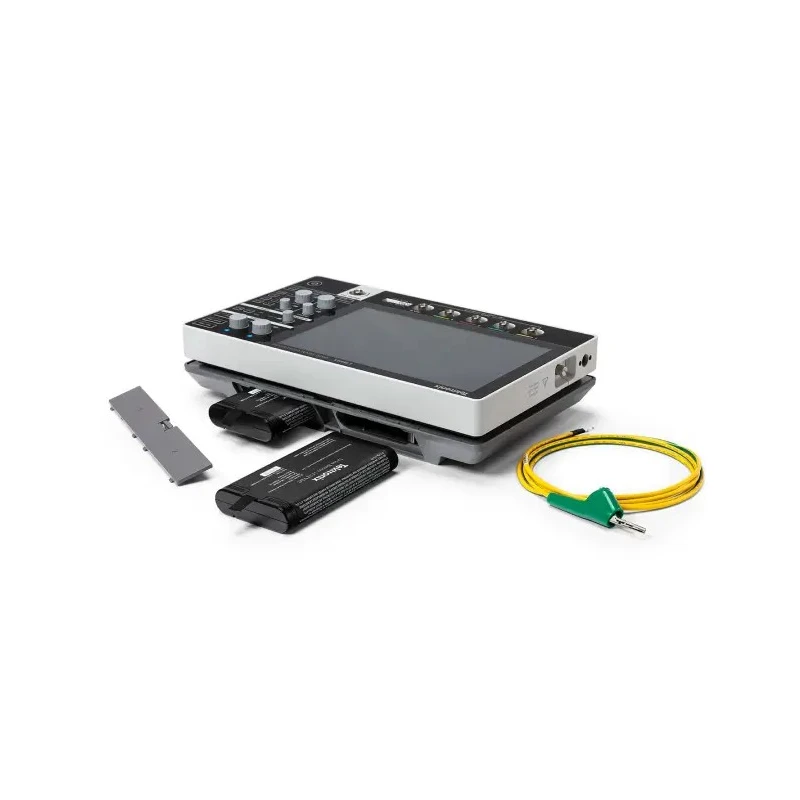

| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |

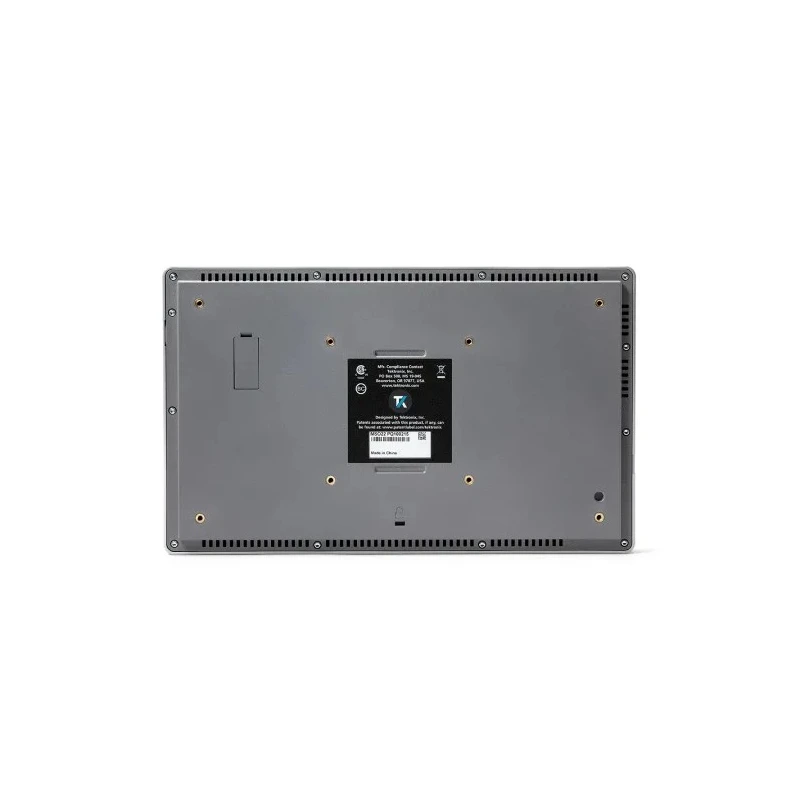

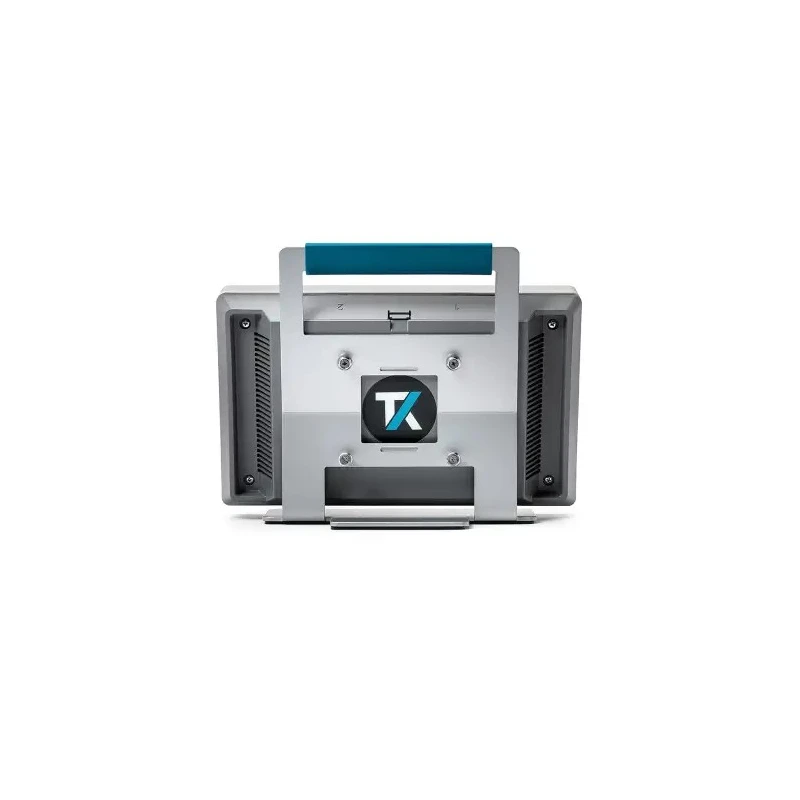

| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Compact and lightweight instrument ideal for bench and field use.
- Features 2 mixed-signal channels and 16 digital channels for versatile testing.
- Battery powered with optional hot-swappable lithium-ion batteries for up to 8 hours of unplugged operation.
- Includes advanced interface protocols such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
- Calibrated with UKAS traceability and certified with CE, RoHS, and UL standards.
- Includes TPP0200 200 MHz 10x probe for each channel, instrument stand, and external power supply.
- Equipped with VESA mount compatibility to save bench space.
- Built-in VNC server enables remote control from PC, tablet, or phone.
Product Description

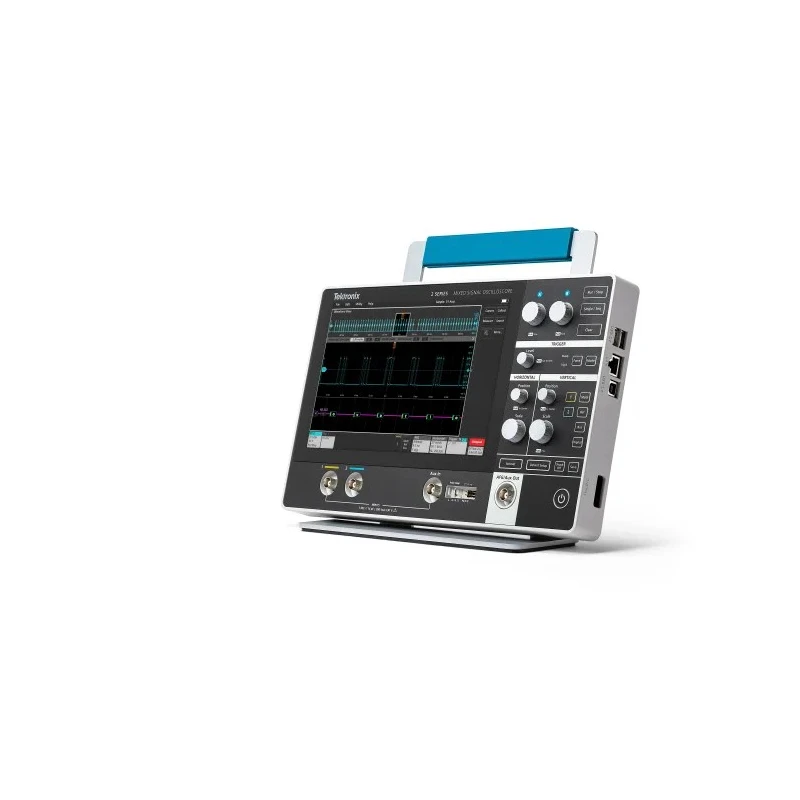

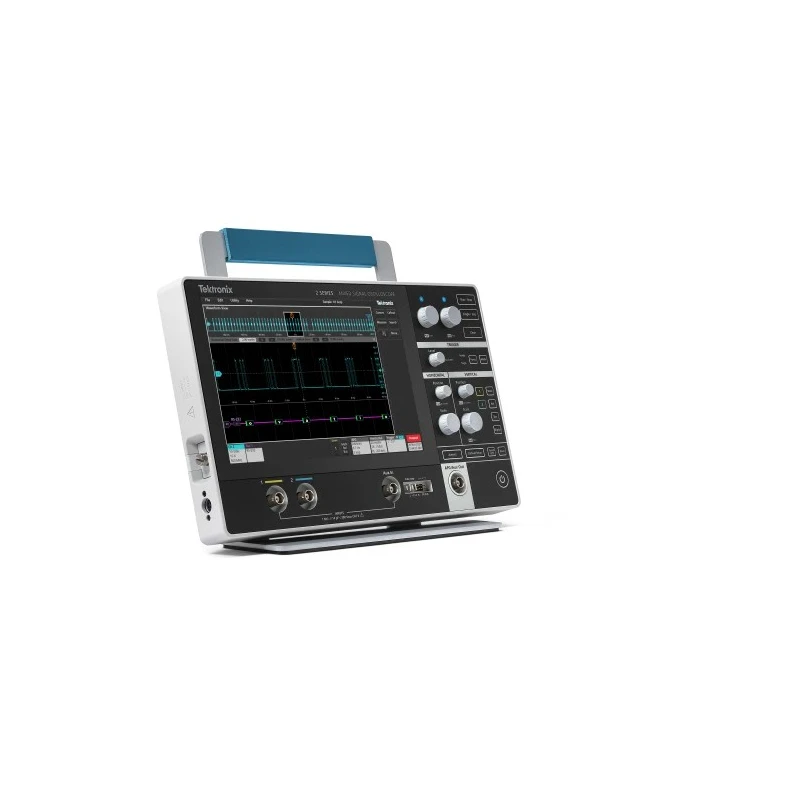

Tektronix MSO22 2-BW-350 is a 2 Series MSO Ultra Compact Mixed Signal Oscilloscope designed for advanced electronic debugging and testing. It features a bandwidth of 350 MHz across 2 analog channels and supports 16 digital channels, offering comprehensive mixed-signal analysis.
This oscilloscope comes with a high-resolution 10.1-inch capacitive touch display for intuitive control and simplified user interface, improving workflow efficiency in both laboratory and industrial environments.
Portable and lightweight, the instrument weighs 1.8 kg without battery and supports optional lithium-ion battery packs allowing up to 8 hours of battery life with hot-swappable capabilities. Its compact dimensions (344 mm width × 210 mm height × 40.4 mm depth) make it ideal for bench-top use and field testing.

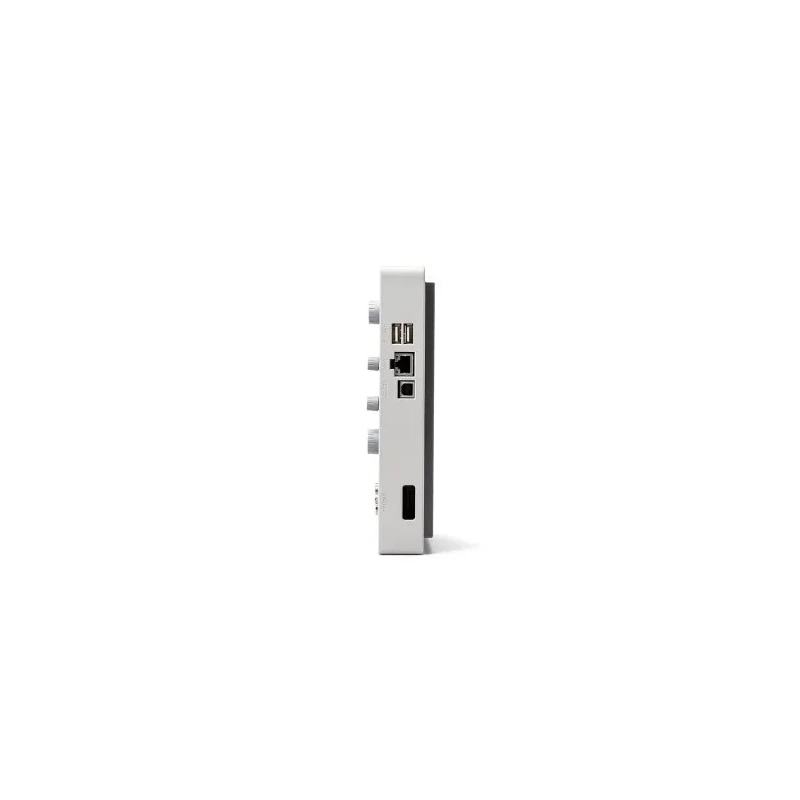

Connectivity options include multiple interface protocols such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, enabling broad device compatibility. The oscilloscope is certified to meet CE, RoHS, and UL safety standards and includes UKAS calibration certificates for assured measurement accuracy.
The package includes TPP0200 200 MHz 10x probes, instrument stand, external power supply, embedded help, installation and safety manuals in multiple languages, and a one-year warranty covering parts and labor. The instrument also features VESA mount compatibility for space-efficient mounting solutions.
Compact and portable design with optional battery power for field use. Advanced mixed-signal capabilities with 2 analog and 16 digital channels. High bandwidth of 350 MHz with 2.5 GS/s sample rate for detailed signal analysis.
Intuitive 10.1-inch capacitive touchscreen user interface for easy operation. Multi-protocol decode and advanced triggering options for complex signal inspection. Includes comprehensive calibration and safety certifications (UKAS, CE, RoHS, UL).
Built-in VNC server facilitates remote device control and monitoring. Supports a wide range of optional accessories including probes, protective cases, and software extensions.
This Oscilloscope is suited for a variety of environments including industrial research and development, manufacturing testing, HVAC system diagnostics, and electronic education and training. Its combination of portability, comprehensive features, and certified accuracy makes it an essential tool for professionals requiring precise and flexible mixed-signal measurement.
Explore additional Tektronix product categories and accessories at EnvMart for comprehensive measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a bandwidth of 350 MHz, allowing for detailed signal analysis across its channels.
It supports 2 analog channels and 16 digital channels for comprehensive mixed-signal analysis.
The compact dimensions are 344 mm in width, 210 mm in height, and 40.4 mm in depth.
It features a 10.1-inch capacitive touch display for intuitive control and user interaction.
It supports multiple protocols including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB.
The instrument weighs 1.8 kg without the battery, making it lightweight and portable.
Yes, it is certified with CE, RoHS, and UL standards, ensuring compliance with safety regulations.
The package includes TPP0200 200 MHz 10x probes, an instrument stand, and an external power supply.
Yes, it is VESA mount compatible, allowing for efficient mounting solutions and space-saving setups.
The vertical resolution is 1 bit for digital channels and 8 bits for analog channels.
