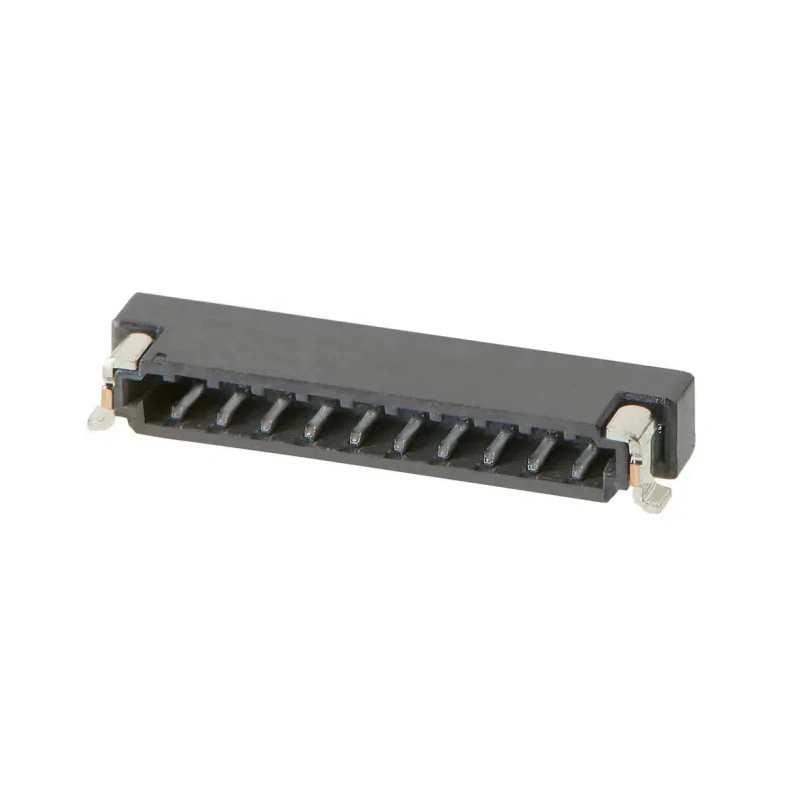

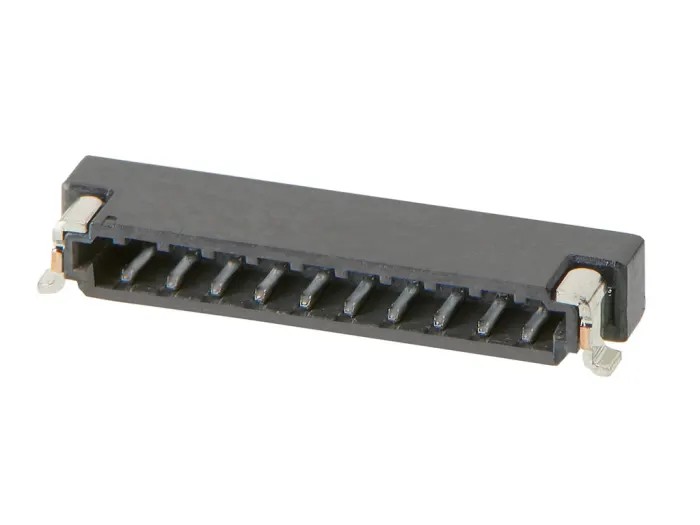

Molex Zero-Hachi Series Right Angle Surface PCB Header, 10 Contacts, 0.8 mm Pitch, 1 Row, Shrouded 214721-0100

Molex 214721-0100 Zero-Hachi Series Right Angle Surface PCB Header is a precision-engineered connector designed for demanding electronic applications requiring compact, reliable wire-to-board connections. This shrouded header features 10 male contacts arranged in a single row with a fine 0.8 mm pitch, supporting current ratings up to 1A. The wire-to-board connector system provides robust PCB retention and is optimized for space-constrained device designs across industrial, commercial, and communication equipment sectors.

The housing is made of high-quality thermoplastic, ensuring excellent durability and insulating properties suitable for operating temperatures from -20°C to 105°C. Contact surfaces made of copper alloy with matt tin plating deliver consistent electrical performance and resist corrosion.

The right angle orientation of the header facilitates efficient installation on PCBs where vertical space is limited. Dual-point contact design enhances electrical contact reliability and mechanical mating retention, minimizing signal interruptions and mechanical failures in critical environments.

Termination is solder type, ensuring strong and reliable attachments to PCB pads. The header includes a 2 mm mating pin length and 3 mm row pitch, allowing precise mechanical and electrical interfacing compliant with industry standards such as RoHS and UL for safety and environmental assurance.

This PCB header is manufactured in the Republic of Korea, reflecting stringent quality control and manufacturing excellence. Its compact size and high reliability make it a preferred choice for applications in industrial electronics, instrumentation, communication equipment, and embedded systems.

This connector uses a wire-to-board connector system designed for compact electronic assemblies. It features a thermoplastic housing making it durable and suitable for various applications. The contact material is made of copper alloy with matt tin plating for reliable conductivity.

The connector supports 1A current carrying capacity and operates at temperatures ranging from -20°C to 105°C. Its dual-point contact design offers excellent mating retention and electrical reliability. The right angle orientation allows efficient PCB assembly in tight spaces.

Rated for solder termination, it ensures stable mechanical and electrical connection. With a mating pin length of 2 mm and 3 mm row pitch, it suits precise PCB layouts. The product complies with RoHS and UL standards, ensuring environmental and safety compliance.

Made in Republic of Korea, reflecting high manufacturing standards. Explore Molex products and PCB Headers at EnvMart for efficient, high-quality electronic assembly solutions.
