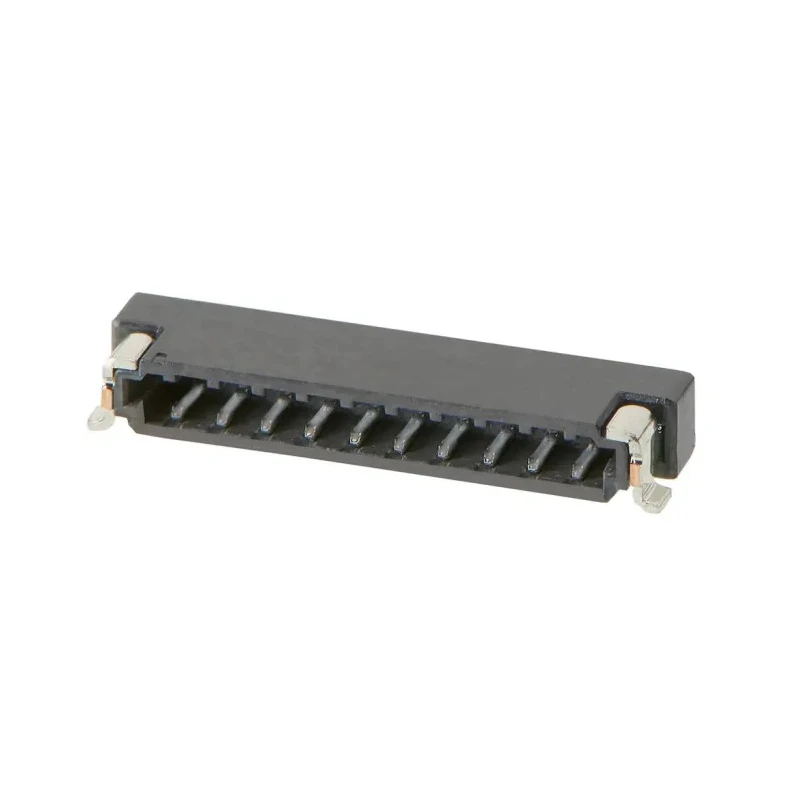

Molex Zero-Hachi Series Right Angle Surface PCB Header, 10 Contacts, 0.8 mm Pitch, 1 Row, Shrouded 214721-0100

Free Delivery in India | Lowest Global Shipping Charges

Molex Zero-Hachi Series Right Angle Surface PCB Header, 10 Contacts, 0.8 mm Pitch, 1 Row, Shrouded 214721-0100

Name: Molex Zero-Hachi Series Right Angle Surface PCB Header, 10 Contacts, 0.8 mm Pitch, 1 Row, Shrouded 214721-0100
Brand: Molex
SKU: 297632
Price: 0.93 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Korea
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	Zero-Hachi
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
Number of Rows	1
Pitch	0.8mm
Standards/Approvals	RoHS, UL
Contact Plating	Matt Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2mm
Row Pitch	3mm

Key Features

Features a shrouded, right angle orientation with 1 row of contacts for robust PCB retention.
Constructed with thermoplastic housing and copper alloy contacts plated with matt tin.
Rated for 1A current and operates between -20°C and 105°C temperature range.
Mating pin length is 2 mm with surface mount termination type ensuring secure soldering.
Complies with RoHS and UL standards, suitable for reliable electronic assemblies.
Protects the connector from damage during wire strain with a dual-point contact design.
Enables engineers to design slimmer devices with improved mating retention and reliability.

Product Description

Molex 214721-0100 Zero-Hachi Series Right Angle Surface PCB Header is a high-quality PCB connector featuring a 0.8 mm pitch and 10 contacts arranged in a single shrouded row. This wire-to-board connector system is designed for compact electronic devices requiring reliable and robust electrical connections.

The header's thermoplastic housing ensures durability while the copper alloy contacts with matt tin plating offer excellent conductivity and corrosion resistance. Rated for a current of 1A, this connector supports operation in temperatures ranging from -20°C to 105°C, making it suitable for varied industrial and commercial electronic applications.

Its right angle orientation and surface mount design provide sturdy PCB retention, preventing breakage when wires are subjected to force. The dual-point contact design secures electrical contact and improves mating retention, enhancing overall reliability to withstand harsh usage conditions.

This connector complies with RoHS and UL standards, ensuring environmental safety and quality. The mating pin length of 2 mm facilitates secure and precise solder joints. The 3 mm row pitch suits dense PCB layouts while addressing space-saving needs in modern electronics.

Ideal for applications in industrial automation, telecommunications, consumer electronics, and more, the Zero-Hachi series header enables engineers to design slimmer, more compact devices without sacrificing connection integrity.

Features a shrouded, right angle orientation with 1 row of contacts for robust PCB retention. Constructed with thermoplastic housing and copper alloy contacts plated with matt tin. Rated for 1A current and operates between -20°C and 105°C temperature range.

Mating pin length is 2 mm with surface mount termination type ensuring secure soldering. Complies with RoHS and UL standards, suitable for reliable electronic assemblies. Protects the connector from damage during wire strain with a dual-point contact design.

Enables engineers to design slimmer devices with improved mating retention and reliability. Explore more Molex connectors and high-quality PCB Headers in the Electronics & Electricals category at EnvMart.
