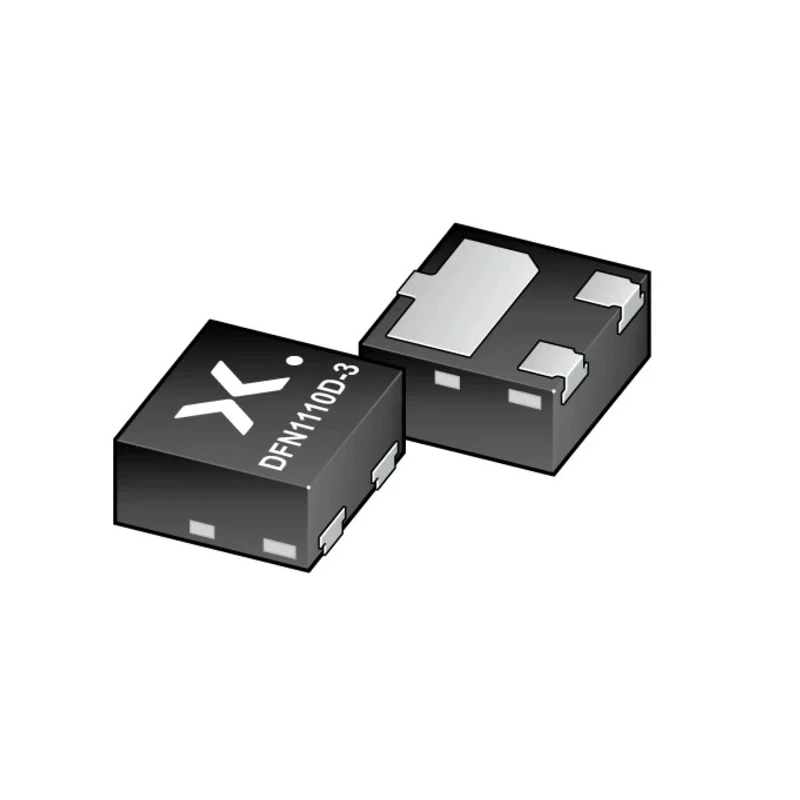

Nexperia Bi-Directional ESD Protection Diode 3-Pin Surface Mount DFN1110D-3 PESD2CANFD27U-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD27U-QBZ |
| Width | 0.47mm |
| Mount Type | Surface |
| Series | PESD2CANFD27U-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 45V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 1.8A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Features bi-directional ESD protection for automotive network bus lines.
- Supports a maximum reverse stand-off voltage of 27 V with a minimum breakdown voltage of 28 V.
- Offers a maximum peak pulse current of 1.8 A and low clamping voltage of 45 V.
- Operates reliably between -65°C and 150°C across automotive grade conditions.
- Constructed in a leadless DFN1110D-3 package with ultra-low capacitance of 4.0 pF.
- Complies with AEC-Q101 automotive standards and IEC 61000-4-2 for ESD robustness up to 15 kV.
- Designed with side wettable flanks for improved solderability in surface mount applications.
- Compact dimensions of 1.1 mm length, 1 mm height, and 0.47 mm width allow space-efficient PCB layouts.
Product Description
Nexperia PESD2CANFD27U-QBZ is a bi-directional ESD protection diode designed to safeguard two automotive in-vehicle network bus lines from electrostatic discharge damage. Encased in an ultra-compact 3-pin DFN1110D-3 surface-mount plastic package with side-wettable flanks, this device suits high-density automotive and electronic circuits requiring robust ESD protection.
It features a maximum reverse stand-off voltage of 27 V and a minimum breakdown voltage of 28 V to ensure circuit reliability under voltage stress. Its clamping voltage reaches 45 V at a peak pulse current of 1.8 A, providing effective pulse suppression. The device maintains low reverse leakage current of 50 nA, minimizing power loss.
Engineered to operate within a wide temperature range from -65°C to 150°C, it meets the stringent requirements of automotive environments, supported by AEC-Q101 qualification and IEC 61000-4-2 compliance for 15 kV ESD protection. The ultra-low capacitance of 4.0 pF ensures minimal signal interference, making it ideal for communication bus systems.
The diode's minimal package size (1.1 mm length, 1 mm height, and 0.47 mm width) enables compact PCB designs while its side wettable flanks enhance solder joint quality. It is RoHS compliant, reinforcing its suitability for modern electronic and automotive industry standards.
Bi-directional ESD protection for automotive network bus lines. 27 V maximum reverse stand-off voltage and 28 V minimum breakdown voltage. Peak pulse current rating of 1.8 A with a clamping voltage of 45 V. Wide operating temperature range from -65°C to 150°C.
Small DFN1110D-3 package with side wettable flanks for surface mount. Low capacitance of 4.0 pF suitable for high-speed data lines. AEC-Q101 and IEC 61000-4-2 certified for automotive ESD standards. RoHS compliant and environmentally friendly design.
This Nexperia ESD Protection Diode is ideal for automotive electronics, industrial control systems, telecommunications equipment, and other applications requiring high-reliability transient voltage suppression. Its compact packaging and advanced protection features offer circuit designers robust solutions for minimizing downtime and enhancing device longevity.
Explore more Nexperia semiconductor components and related products available through EnvMart for comprehensive protection and performance optimization in your embedded system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage is 27 V.
The minimum breakdown voltage is 28 V.
It has a peak pulse current rating of 1.8 A.
The clamping voltage is 45 V.
It operates reliably between -65°C and 150°C.
This model has 3 pins.
It features an ultra-low capacitance of 4.0 pF.
It is constructed in a DFN1110D-3 package.
It complies with AEC-Q101 automotive standards and IEC 61000-4-2 for ESD robustness.
The dimensions are 1.1 mm in length, 1 mm in height, and 0.47 mm in width.
It is designed for automotive electronics, industrial control systems, and telecommunications equipment requiring high-reliability transient voltage suppression.
Yes, it is RoHS compliant, reinforcing its suitability for modern electronic and automotive industry standards.
