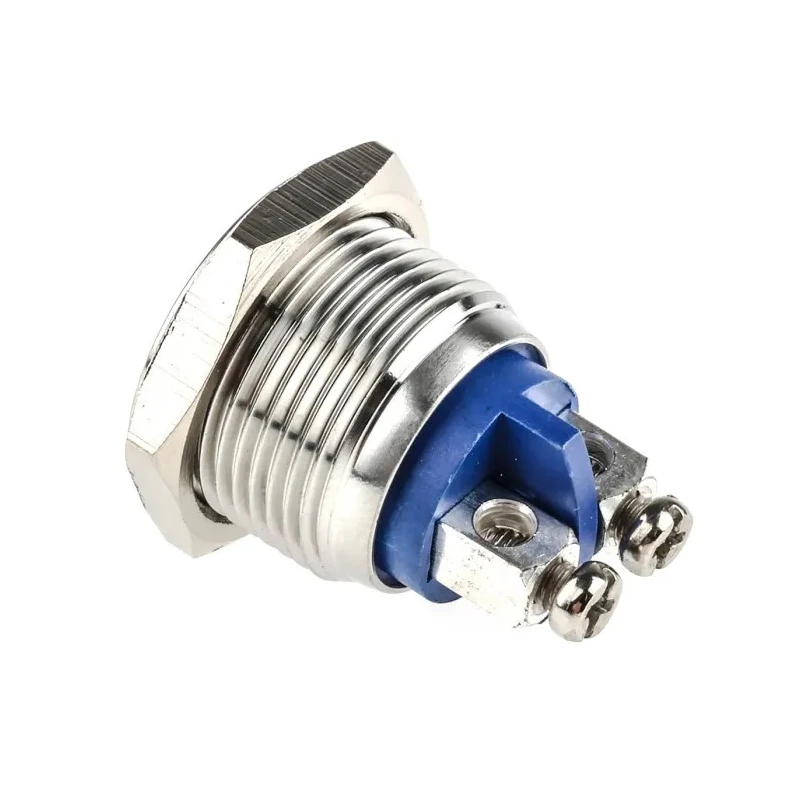

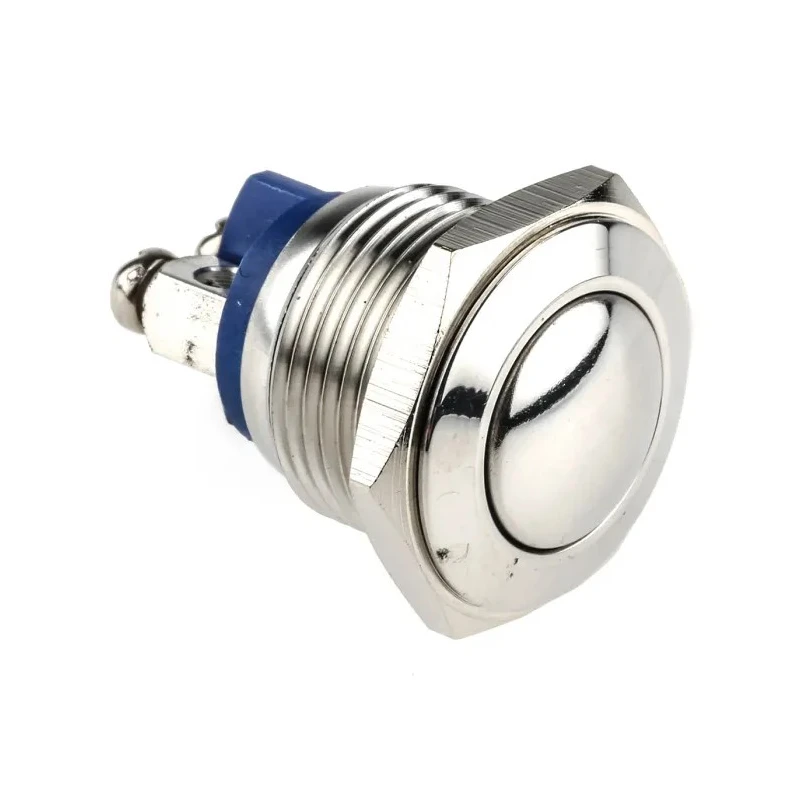

EOZ R Series Push Button Switch Momentary Panel Silver Actuator 16.2 mm Cutout SPST IP65 48 V dc 250 V ac R16DFSSTAG
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R16DFSSTAG |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 690-3258Brand: EOZManufacturers Part No.: R16DFSSTAG |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 2A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver domed shape actuator that resists corrosion, heat, and chemical damage.
- It is non-illuminated and operates momentarily, making contact only while pressed.
- Screw terminals provide secure and reliable connections.
- The switch supports 48 V dc and 250 V ac contact voltages with a 2A contact current rating.
- It has an operating temperature range from -20°C to 55°C, suitable for harsh environments.
- Designed for vandal resistance with IK08 rating, ensuring shock resistance against 5 joules impact.
- Ideal for use in access control systems, machinery, factory equipment, and exposed public installations such as ticket machines and kiosks.
- Complies with RoHS standards for environmental and safety compliance.
Product Description
EOZ R16DFSSTAG is a high-quality R Series push button switch designed for industrial and commercial applications requiring durability and reliability. This momentary push button switch features a stainless steel silver domed actuator, allowing it to resist corrosion, heat, and chemical damage in demanding environments.
The switch has a panel mounting design, requiring a 16.2 mm cutout, and offers a single pole single throw (SPST) contact configuration. It operates momentarily, making electrical contact only while the button is pressed. The device is equipped with screw terminals for secure wiring connections.
With an IP65 rating, the switch is fully protected against dust ingress and can withstand low-pressure jets of water from any direction, making it ideal for outdoor or exposed installations. Its robust shock resistance rating of IK08 protects it against impacts up to 5 joules, roughly equivalent to a 1.7 kg mass dropped from 300 mm above the switch surface.
The R16DFSSTAG supports contact voltages up to 48 V dc and 250 V ac with a contact current rating of 2 amperes. It can operate within a wide temperature range from -20°C to 55°C, suitable for typical industrial and commercial ambient conditions.
Silver stainless steel actuator resists corrosion and damage. Momentary electrical contact operation only while pressed. Panel mount design for 16.2 mm hole installation. Protection rating IP65 ensures dust and water resistance.
Shock resistance to IK08 rating for impact durability. Suitable for access control, machinery, and public-facing equipment. RoHS compliant for environmental safety.
This push button switch is well-suited for applications in industrial automation, manufacturing machinery, public kiosks, and access control systems where vandal resistance and reliable momentary switching are critical.
Explore more EOZ Push Button Switches and other industrial electrical components on EnvMart for reliable and certified products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, allowing it to make contact only while the button is pressed.
It supports contact voltages of 48 V dc and 250 V ac, with a maximum contact current rating of 2 amperes.
The switch operates within a temperature range of -20°C to 55°C, making it suitable for various industrial and commercial environments.
The switch has an IP65 rating, ensuring it is protected against dust ingress and low-pressure water jets from any direction.
This model requires a panel cutout size of 16.2 mm for proper installation.
It is equipped with screw terminals, providing secure and reliable connections for wiring.
The actuator style is a button, and it features a silver color, made from stainless steel for enhanced durability.
It is designed for harsh environments, making it ideal for applications in access control systems, machinery, and public installations.
The switch has an IK08 shock resistance rating, which protects it against impacts up to 5 joules.
Yes, it complies with RoHS standards for environmental and safety compliance.
This model operates as a momentary switch, making electrical contact only while the button is pressed.
The switch is manufactured in France, ensuring adherence to quality standards.
