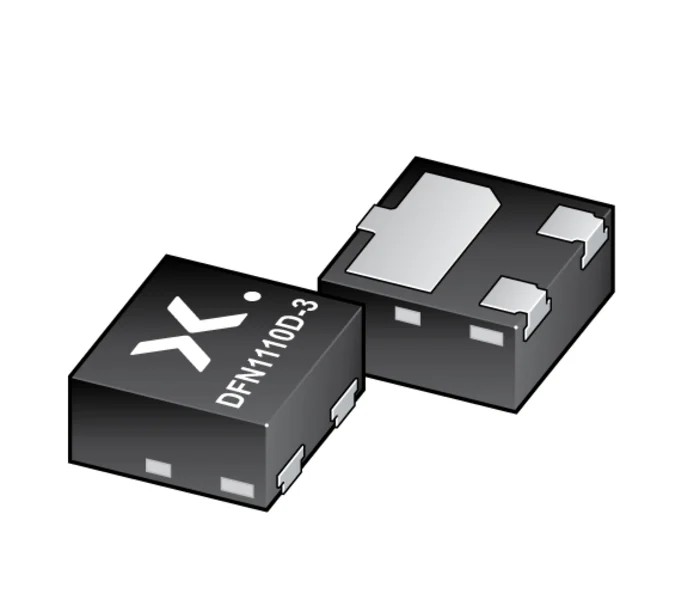

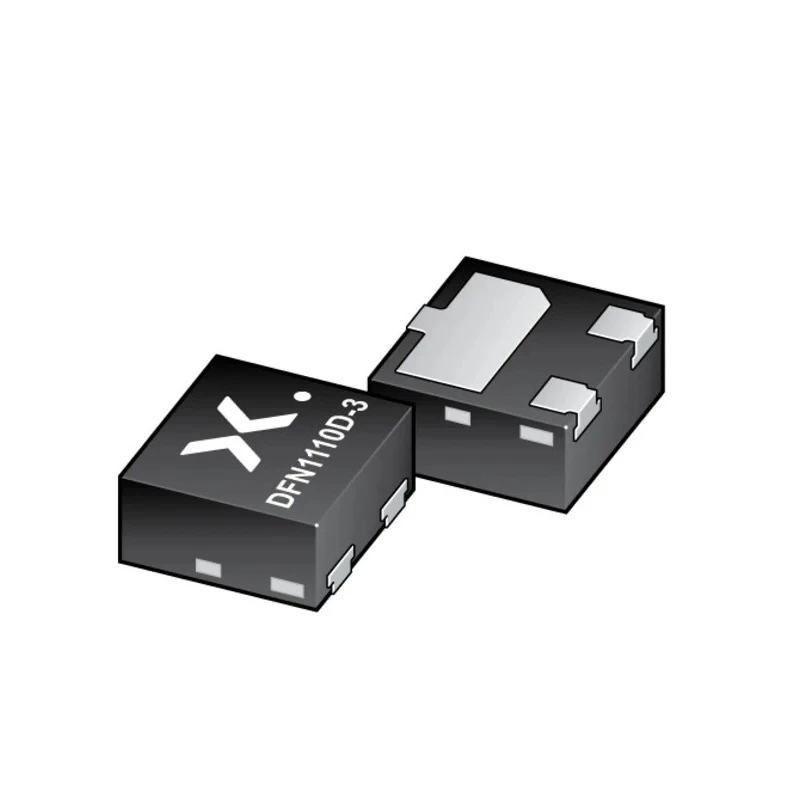

Nexperia Bi-Directional ESD Protection Diode, 3-Pin DFN1110D-3 Package, 27V Reverse Stand-off, 2.5A Peak PESD2CANFD27V-QBZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 1.1mm |
| Model | PESD2CANFD27V-QBZ |
| Width | 0.48mm |
| Mount Type | Surface |
| Series | PESD2CANFD27V-QB |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 61000-4-2, RoHS |
| Pin Count | 3 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28V |
| Maximum Reverse Stand-off Voltage Vwm | 27V |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- This diode provides a maximum reverse stand-off voltage of 27 volts.
- It supports a peak pulse current of up to 2.5 amperes.
- The device features a low clamping voltage of 44 volts for effective ESD suppression.
- The package size is ultra-compact with dimensions of 1.1 mm by 0.48 mm by 1 mm.
- Qualified to automotive standard AEC-Q101 for enhanced reliability.
- Operates across a wide temperature range from -65°C to 150°C.
- Provides ESD protection up to 20 kV according to IEC 61000-4-2 standards.
- Low capacitance of 6 pF minimizes signal distortion in high-speed data lines.
Product Description
Nexperia PESD2CANFD27V-QBZ Bi-Directional ESD Protection Diode in a compact 3-Pin DFN1110D-3 (SOT8015) surface-mount package is engineered to protect automotive and industrial electronic circuits against Electrostatic Discharge (ESD) damage. This device is designed specifically to safeguard two in-vehicle network bus lines, making it ideal for automotive applications requiring high reliability and compact footprints.
The diode exhibits a maximum reverse stand-off voltage of 27 V, with a robust clamping voltage of 44 V at peak pulse current, ensuring effective suppression of transient voltage spikes. With an impressive maximum peak pulse current capacity of 2.5 A and low capacitance of 6 pF, it minimizes signal degradation on sensitive data lines.
The device complies with international standards including IEC 61000-4-2 and RoHS, and it meets the stringent AEC-Q101 automotive qualification, confirming its durability under aggressive operating conditions. Operating temperature ranges from -65°C up to 150°C, enhancing suitability for harsh environments.
The leadless DFN1110D-3 package features side wettable flanks for improved solderability on automotive PCBs, supporting high-volume manufacturing and assembly efficiency. Typical applications include automotive communications and industrial network line protection.
Compact 3-pin DFN1110D-3 package ensures space-saving on PCBs. Bi-directional ESD protection up to 20 kV secures sensitive electronic components. Low leakage current supports low power consumption and reliability. Automotive-grade qualification AEC-Q101 enhances reliability in vehicle systems.
Compliance with RoHS and IEC 61000-4-2 ensures standard adherence and environmental compliance.
This ESD diode is integral for automotive, industrial, and electronic design engineers seeking robust line protection in compact form factors. Explore more Nexperia semiconductor products and components through the EnvMart platform for your next project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 27 volts.
It supports a peak pulse current of up to 2.5 amperes.
The package dimensions are 1.1 mm in length, 0.48 mm in width, and 1 mm in height.
The clamping voltage is 44 volts, ensuring effective suppression of transient voltage spikes.
It operates across a wide temperature range from -65°C to 150°C.
This model is qualified to the automotive standard AEC-Q101 for enhanced reliability.
It provides ESD protection up to 20 kV according to IEC 61000-4-2 standards.
The diode features a low capacitance of 6 pF, which minimizes signal distortion in high-speed data lines.
It is designed for surface mounting, making it suitable for compact PCB layouts.
The maximum reverse leakage current is 50 nA.
It complies with RoHS and IEC 61000-4-2 standards, ensuring environmental compliance and ESD protection.
This diode is suitable for automotive communications and industrial network line protection.
