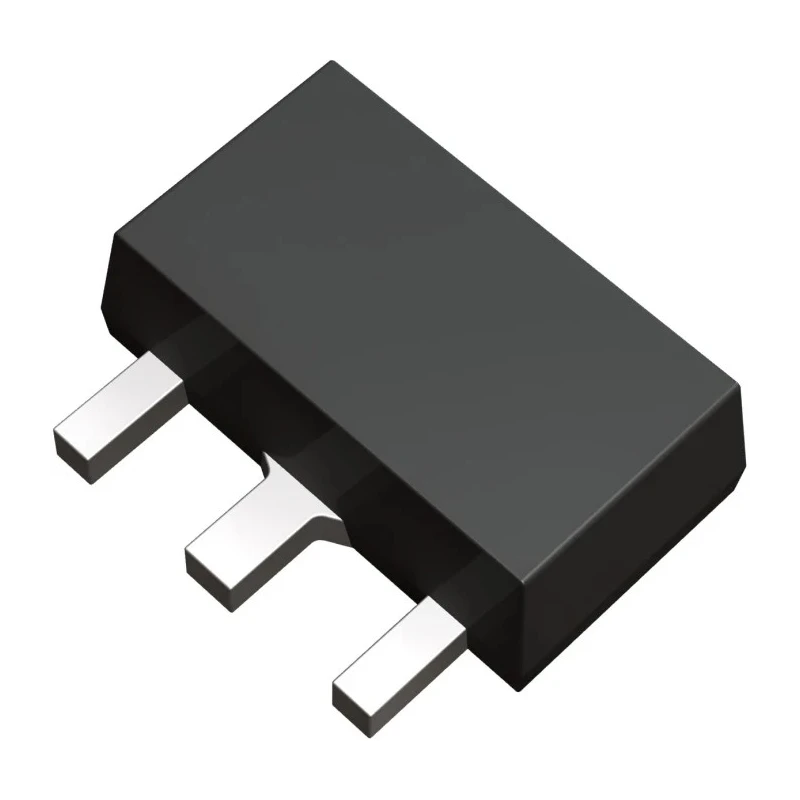

ROHM Bipolar NPN Transistor 2 A, 30 V, 0.5W Power Dissipation, 3-Pin SOT-89 2SCR293PHZGT100
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 2.3mm |
| Length | 4.7mm |
| Model | 2SCR293PHZGT100 |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | 2SCR293P HZG |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 30V |
| Minimum DC Current Gain hFE | 680 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 6V |
| Maximum Collector Base Voltage VCBO | 30V |
| Maximum Power Dissipation Pd | 0.5W |
| Maximum DC Collector Current Idc | 2A |
| Maximum Transition Frequency ft | 320MHz |
Key Features
- Supports maximum DC collector current of 2 amperes for reliable operation.
- Maximum collector-emitter voltage rated at 30 volts ensuring efficient switching.
- Compact and low-profile 3-pin SOT-89 package for surface mount applications.
- High minimum DC current gain (hFE) of 680 for amplification efficiency.
- Maximum power dissipation up to 0.5 watts suitable for middle power applications.
- Operating temperature range from -55°C to 150°C for wide industrial use.
- Designed primarily for low frequency amplifier and automotive applications.
- 3-pin configuration supporting easy PCB layout and soldering.
Product Description
ROHM 2SCR293PHZGT100 is a high-quality bipolar NPN transistor designed for middle power and low frequency amplifier applications. It supports a maximum DC collector current of 2 A and a maximum collector-emitter voltage of 30 V, making it suitable for a range of industrial and automotive electronics.
Encapsulated in a compact 3-pin SOT-89 surface mount package, this transistor offers convenience in PCB assembly and space-saving design. It features a high minimum DC current gain (hFE) of 680 and can dissipate up to 0.5 W of power, ensuring efficient performance in amplification tasks.
The device operates reliably in temperatures ranging from -55°C to 150°C, broadening its applicability in harsh environments including automotive electronics and industrial control systems. Its physical dimensions are 2.3 mm in height, 4.7 mm in length, and 1.6 mm in width, facilitating easy integration into compact electronic circuits.
This component is non-automotive standard, but it is highly reliable and meets specific quality standards required for many electronics applications. Its maximum collector base voltage is 30 V with a maximum emitter base voltage of 6 V, aligning well with diverse circuit requirements.
Applications for this transistor include general-purpose amplification, switching in middle power circuits, industrial equipment, automotive electronics, and other semiconductor-based designs where surface mount technology is required.
Supports maximum DC collector current of 2 amperes for reliable operation. Compact and low-profile 3-pin SOT-89 package for surface mount applications. High minimum DC current gain (hFE) of 680 for amplification efficiency.
Operating temperature range from -55°C to 150°C for wide industrial use. Maximum power dissipation of 0.5 watts suitable for middle power applications. Explore our extensive category of high-quality Bipolar Transistors for various industrial and commercial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for this model is 2 amperes, ensuring reliable operation in various applications.
It has a maximum collector-emitter voltage rating of 30 volts, which allows for efficient switching in circuits.
The minimum DC current gain (hFE) is 680, which contributes to its amplification efficiency.
This transistor can dissipate up to 0.5 watts, making it suitable for middle power applications.
It operates reliably in temperatures ranging from -55°C to 150°C, suitable for a wide range of industrial uses.
The transistor is encapsulated in a compact 3-pin SOT-89 surface mount package, facilitating easy PCB assembly.
The dimensions are 2.3 mm in height, 4.7 mm in length, and 1.6 mm in width, allowing for integration into compact electronic circuits.
The maximum emitter-base voltage (VEBO) is 6 volts, aligning with various circuit requirements.
This model is designed primarily for low frequency amplifier and automotive applications, as well as general-purpose amplification and switching in middle power circuits.
The maximum transition frequency (ft) is 320 MHz, which is relevant for its performance in high-speed applications.
This transistor has a 3-pin configuration, which supports easy PCB layout and soldering.
The transistor is of NPN polarity, suitable for various electronic circuit designs.
