Nexperia Bi-Directional ESD Protection Diode 2-Pin Surface Mount DFN1006BD-2, 27V VRWM, 3A IPP, AEC-Q101 PESD1IVN27-LSYL

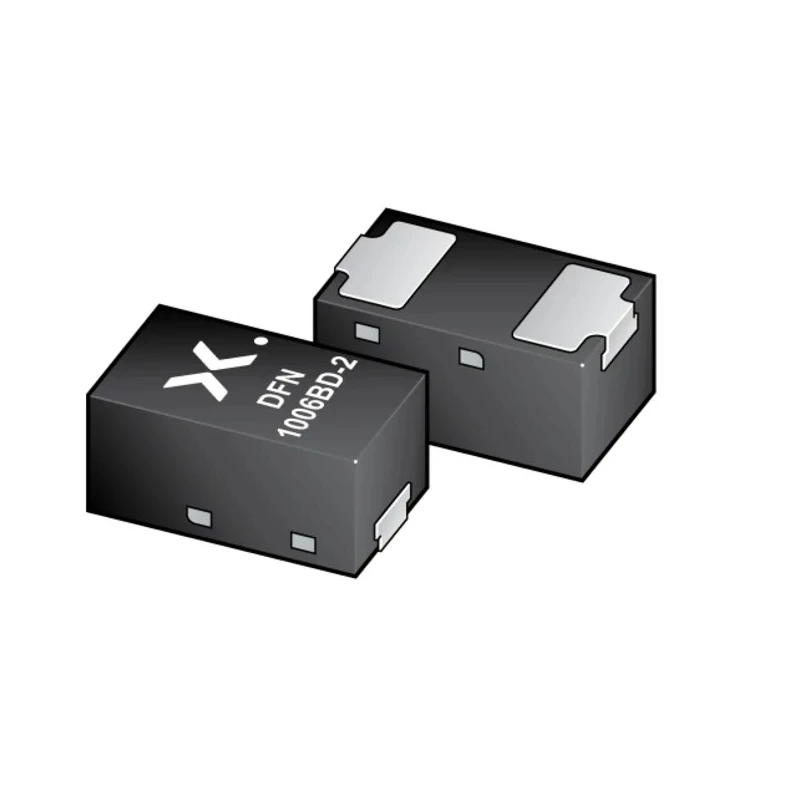

The Nexperia PESD1IVN27-LSYL is a bi-directional ESD Protection Diode designed for safeguarding sensitive electronic circuits, especially in automotive in-vehicle network bus lines. Housed in a leadless ultra-small DFN1006BD-2 surface-mount device package with side-wettable flanks, it facilitates automatic PCB assembly while ensuring mechanical robustness.

With a maximum reverse stand-off voltage (VRWM) of 27 volts and a minimum breakdown voltage (VBR) of 28 volts, this diode efficiently clamps voltage spikes with a maximum clamping voltage (VC) of 45 volts at a peak pulse current (IPP) of 3 amperes. It operates reliably across a wide temperature range from -65°C to 150°C, making it suitable for harsh automotive and industrial environments.

The device features ultra-low leakage current of 50 nanoamperes, reducing standby power consumption. Its compliance with the automotive standard AEC-Q101 certifies suitability for critical vehicle applications, while adherence to RoHS and IEC 61000-4-2 standards guarantees environmental safety and high ESD immunity up to 30 kV.

The compact dimensions of 1.0 mm length, 0.47 mm width, and 0.6 mm height allow for space-saving designs in high-density electronic assemblies. This makes the PESD1IVN27-LSYL an ideal choice for protecting data and power lines from destructive transient voltage events.

Bi-directional ESD protection for automotive and industrial electronics. Compact DFN1006BD-2 surface-mount package with side-wettable flanks. Maximum reverse stand-off voltage of 27 volts and breakdown voltage of 28 volts.

Maximum peak pulse current capacity of 3 amperes for surge protection. Low clamping voltage of 45 volts at peak pulse current to prevent damage. Wide operating temperature range from -65°C to 150°C for harsh conditions. Extremely low leakage current reduces power consumption.

Automotive grade certification (AEC-Q101) ensuring high reliability. RoHS compliant with ESD immunity standards (IEC 61000-4-2 up to 30 kV).

Applicable in automotive electronics, industrial control systems, communication equipment, and general electronic devices requiring high-level ESD protection. This diode enhances device longevity by preventing damage from electrostatic discharges and voltage transients.
