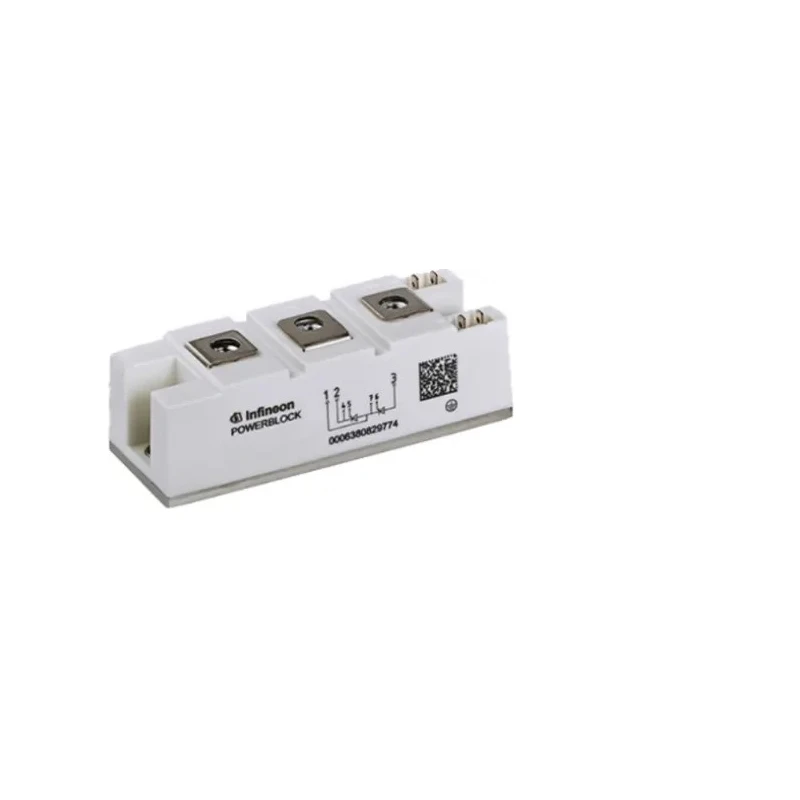

Infineon Thyristor Module 1600 V Rated Average On-State Current 190 A Surge Current 5.2 kA TT190N16SOFHPSA2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TT190N16SOFHPSA2 |
| Maximum Operating Temperature | 125°C |
| Package Type | Tray |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 190A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 5.2kA |
| Maximum Gate Trigger Current Igt | 145mA |
| Maximum Holding Current Ih | 200mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.52V |
| Repetitive Peak Off-State Current | 30mA |
Key Features
- Repetitive peak reverse voltage of 1600 V ensures robust voltage blocking capability.
- Supports rated average on-state current of 190 A for continuous heavy load operation.
- High surge current rating of 5.2 kA withstands transient inrush events effectively.
- Peak on-state voltage of 1.52 V provides reduced conduction losses.
- Maximum gate trigger current of 145 mA allows for low-level gate drive requirements.
- Operating temperature range from -40 °C to 125 °C for diverse environmental conditions.
- Maximum holding current of 200 mA guarantees stable turn-off characteristics.
- 7-pin tray package format designed for system integration and automated assembly.
Product Description
Infineon TT190N16SOFHPSA2 Thyristor Module is designed for high-power switching applications requiring robust voltage blocking and controlled conduction. It features a repetitive peak reverse voltage rating of 1600 V and a rated average on-state current of 190 A, supporting sustained heavy-load switching in harsh thermal environments.
This SCR-type module withstands surge currents up to 5.2 kA, offering protection against large transient inrush events. With a peak on-state voltage of just 1.52 V, it minimizes conduction losses, enhancing overall efficiency.
The device requires a maximum gate trigger current of 145 mA, facilitating compatibility with low-level gate drive circuits, while a maximum holding current of 200 mA ensures reliable turn-off behavior. Its broad operating temperature range from -40 °C to 125 °C suits demanding industrial and commercial environments.
Supplied in a 7-pin tray package, the module is optimized for automated handling and system integration. It is well-suited for applications including industrial motor control, phase-angle switching, power supplies with high surge tolerance, and bulk power switching in inverter stages.
Repetitive peak reverse voltage: 1600 V. Rated average on-state current: 190 A. Surge current rating: 5.2 kA. Peak on-state voltage: 1.52 V. Maximum gate trigger current: 145 mA. Maximum holding current: 200 mA. Operating temperature range: -40 °C to 125 °C.
Pin count: 7. Package type: Tray.
This Infineon Thyristor Module is engineered to provide reliable, efficient power control in industrial, manufacturing, and power conversion systems. Its robust ratings make it suitable for a wide range of high-voltage rectification and controlled power conversion needs.
Explore our extensive inventory of semiconductor modules at EnvMart for your industrial and electronic components requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The repetitive peak reverse voltage of this thyristor module is 1600 V, ensuring robust voltage blocking capability.
This model supports a rated average on-state current of 190 A for continuous heavy load operation.
The thyristor module has a surge current rating of 5.2 kA, which allows it to withstand transient inrush events effectively.
The peak on-state voltage is 1.52 V, which helps in reducing conduction losses during operation.
The maximum gate trigger current required is 145 mA, facilitating compatibility with low-level gate drive circuits.
The operating temperature range for this model is from -40 °C to 125 °C, suitable for diverse environmental conditions.
The maximum holding current is 200 mA, ensuring stable turn-off characteristics.
It is supplied in a 7-pin tray package, designed for system integration and automated assembly.
The thyristor type of this module is SCR (Silicon Controlled Rectifier).
The pin count for this model is 7, allowing for various connection configurations.
This thyristor module is well-suited for industrial motor control, phase-angle switching, and bulk power switching in inverter stages.
The maximum repetitive peak off-state current is 30 mA, which is important for ensuring reliable operation.
