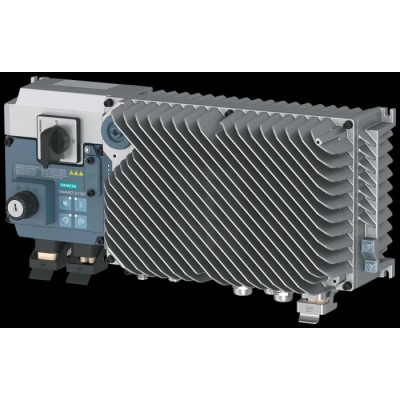

Siemens Inverter Drive, 3 kW, 1 & 3 Phase, SINAMICS G115D Series, 480V, 15.4A, Wall Mount 6SL3520-1XE43-0AF0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-1XE43-0AF0 |
| IP Rating | IP66, IP65 |
| Mount Type | Wall |
| Overall Length | 180mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 3kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 1, 3 |
| Maximum Output Current | 15.4A |
| Standards/Approvals | CE, C-Tick (RCM), cUL, EAC, KCC, REACH, SEMI F47, UL |
| Maximum Supply Voltage | 480V |
| Overall Depth | 134mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Supports asynchronous and high-efficiency synchronous reluctance motors up to IE4 efficiency class.
- Pre-configured modular system simplifies installation and commissioning.
- Wall mount design reduces space requirements and cooling needs.
- Suitable for wide operating temperatures from -30°C to 55°C.
- Equipped with advanced protection including IP66 and IP65 ratings for harsh environments.
- Compatible with SIMOGEAR 2KJ8 geared motors globally.
- Maximum output current of 15.4 A ensures reliable motor control.
- Meets multiple international standards including CE, UL, cUL, EAC, KCC, and more.
Product Description
Siemens 6SL3520-1XE43-0AF0 inverter drive is a robust power electronic device delivering 3 kW suitable for 1 and 3 phase AC motors, designed primarily for wall mounting in industrial and automation applications. Operating at supply voltages between 380V and 480V, it supports motors with maximum output currents up to 15.4 A, ensuring precise speed and torque control.
This SINAMICS G115D series product offers a modular, pre-configured solution integrating converter, motor, and gearbox compatibility to optimize machine performance. Its wall-mounted design eliminates the need for control cabinets, reducing the overall footprint and cooling requirements in manufacturing or HVAC systems.
Designed for use in harsh industrial environments, the inverter drive carries IP66 and IP65 ratings, protecting against dust and water ingress. It accommodates a broad temperature range from -30°C up to 55°C, making it well-suited for varied environmental conditions.
The system is compatible with high-efficiency synchronous reluctance motors conforming to IE4 efficiency class and asynchronous motors up to IE3, contributing to energy savings and reduced operational costs. Its worldwide compatibility with SIMOGEAR 2KJ8 geared motors makes it a flexible choice for global machinery applications.
Standards and approvals such as CE, C-Tick (RCM), cUL, EAC, KCC, REACH, SEMI F47, and UL certify the product's safety and regulatory compliance, providing assurance for integration in industrial automation, water treatment, manufacturing lines, HVAC systems, and other commercial uses.
Supports asynchronous and synchronous reluctance motors with high efficiency. Pre-configured, ready-to-install modular inverter system. Wall mount design for space efficiency and reduced cooling load. IP66/IP65 protection for harsh industrial environments.
Wide operating temperature range from -30°C to 55°C. Compatible with global geared motors for versatile applications. High maximum output current rating of 15.4 A. Conforms to a wide range of international standards. Manufactured in the United Kingdom.
Siemens inverter drives are extensively used in industrial automation, manufacturing, HVAC controls, water treatment plants, and energy management systems. The SINAMICS G115D series offers reliable and energy-efficient motor drives suitable for varied commercial, laboratory, and industrial environments.
Find more advanced inverter drives and motor control solutions under the Inverter Drives category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens inverter drive has a power rating of 3 kW.
It has a maximum output current of 15.4 A, ensuring reliable motor control.
This model operates at supply voltages between 380V and 480V.
It supports asynchronous and high-efficiency synchronous reluctance motors up to IE4 efficiency class.
The unit is rated IP66 and IP65, providing protection against dust and water ingress in harsh environments.
It can operate in a wide temperature range from -30°C to 55°C.
The overall dimensions are 180 mm in length, 425 mm in width, and 134 mm in depth.
It features a wall mount design, which reduces space requirements and cooling needs.
This inverter drive meets multiple international standards including CE, UL, cUL, EAC, and KCC.
This model belongs to the SINAMICS G115D series.
It is suitable for various applications including industrial automation, manufacturing, HVAC systems, and water treatment.
The inverter drive is manufactured in the United Kingdom.
