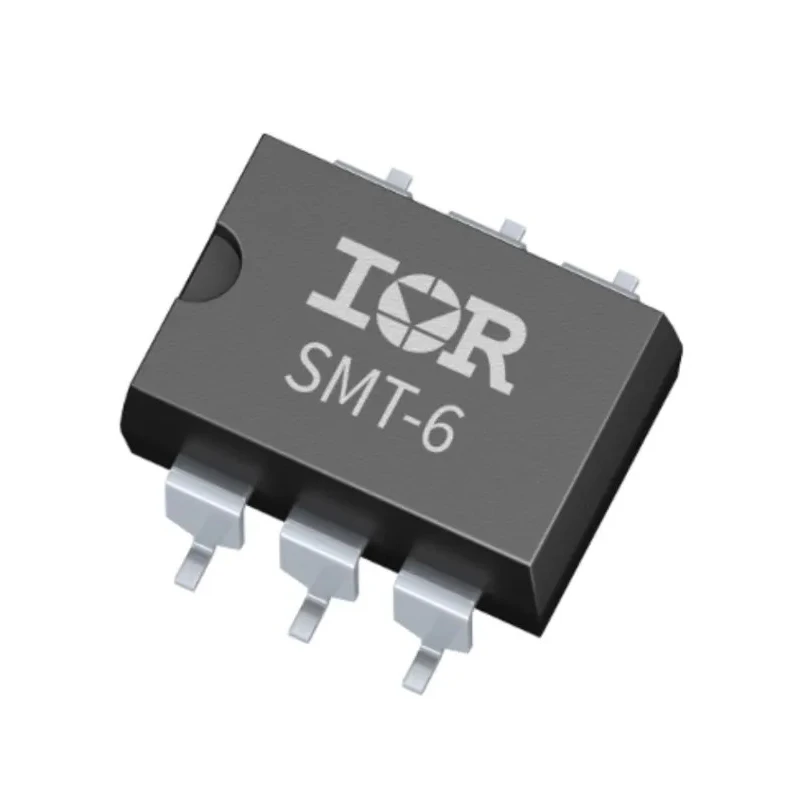

Infineon PVT312 Series Solid State Relay 320 A Load Current 250 V Load Surface Mount PVT312
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | PVT312 |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PVT312 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | DIP-6 |
| Capacitance | 1pF |
| Minimum Operating Temperature | -40°C |
| Switching Function | No zero cross |
| Maximum Load Current | 320A |
| Standards/Approvals | UL recognised and BABT certified |
| Maximum Load Voltage | 250V |
| Minimum Load Voltage | 0V |
| Off State Leakage Current | 1μA |
| On State Resistance | 3Ω |
Key Features
- The relay utilizes MOSFET output for efficient switching performance.
- It features a single-pole single-throw (SPST) normally open contact configuration.
- Operating temperature range from -40°C to 85°C ensures reliability in diverse environments.
- The relay provides low on-state resistance of 3Ω and minimal off-state leakage current of 1μA.
- Compliance with UL recognition and BABT certification guarantees safety and standards adherence.
- Package type is DIP-6, facilitating easy integration into surface-mounted circuit boards.
- Designed mainly for general switching, ground start, and dial out relay applications.
- The solid state design delivers enhanced reliability by replacing electromechanical relays.
Product Description
Infineon PVT312 Series Solid State Relay model PVT312 is a high-performance relay designed for switching loads up to 320 A at a maximum load voltage of 250 V. This surface mount relay uses MOSFET output to ensure efficient and reliable operation ideal for industrial, automation, and electrical applications.
It features a single-pole single-throw (SPST) normally open contact configuration without zero-cross switching functionality, providing fast and controlled switching. With low on-state resistance of 3Ω, it minimizes power loss during operation.
The relay supports a wide operating temperature range from -40°C to 85°C, making it suitable for harsh environments. Its off-state leakage current is as low as 1μA and capacitance of 1pF, ensuring minimal interference in sensitive circuits.
Compliant with UL recognition and BABT certification, the PVT312 relay meets essential safety and quality standards. The DIP-6 package type supports easy surface mounting on PCBs, facilitating compact and efficient design integration.
This solid state relay replaces traditional electromechanical relays, offering greater reliability by eliminating mechanical wear components. It is mainly used in switching applications such as ground start, dial out relay, and general electrical switching in industrial and automation systems.
The relay utilizes MOSFET output for efficient switching performance. Single-pole single-throw normally open contact configuration. Wide operating temperature: -40°C to 85°C. Low on-state resistance of 3 ohms reduces power dissipation.
Low off-state leakage current ensuring minimal energy loss. Complies with UL and BABT certifications. DIP-6 package for surface mount applications. Ideal for use in automation, manufacturing, and electrical switching systems.
Explore more in the Solid State Relay category at EnvMart for reliable electrical and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 320 A.
It operates within a temperature range of -40°C to 85°C.
This relay utilizes a MOSFET output for efficient switching performance.
The contact configuration is single-pole single-throw (SPST) normally open.
The maximum load voltage for the PVT312 is 250 V.
The on-state resistance is 3Ω, which helps minimize power loss during operation.
It is UL recognized and BABT certified, ensuring compliance with safety standards.
The off-state leakage current is as low as 1μA, ensuring minimal energy loss.
The relay comes in a DIP-6 package type, suitable for surface mounting.
It is mainly designed for general switching, ground start, and dial out relay applications in industrial and automation systems.
The capacitance is 1pF, which helps in minimizing interference in sensitive circuits.
No, this model does not support zero-cross switching functionality.
