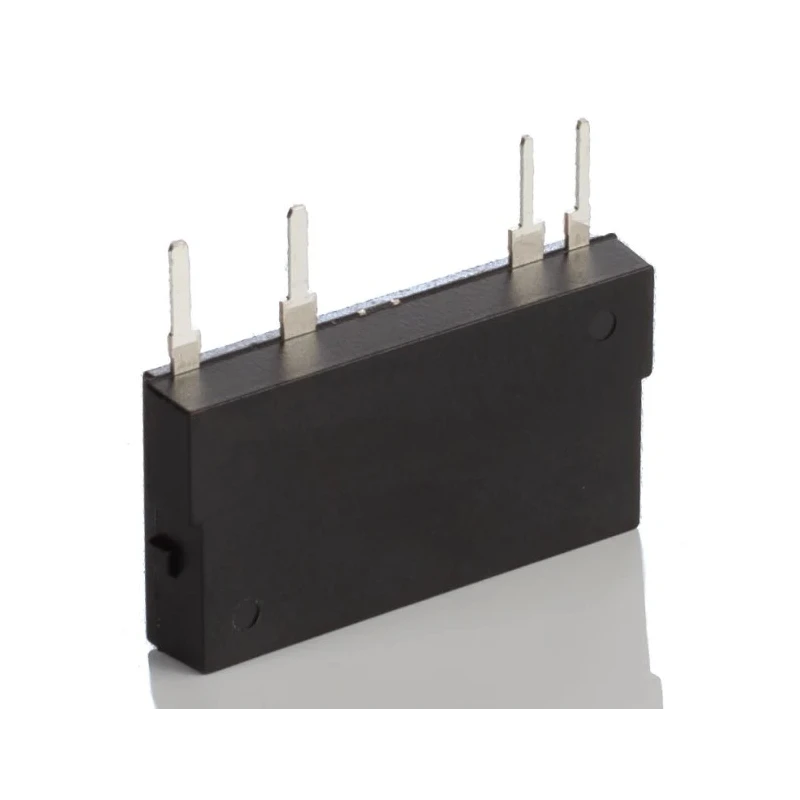

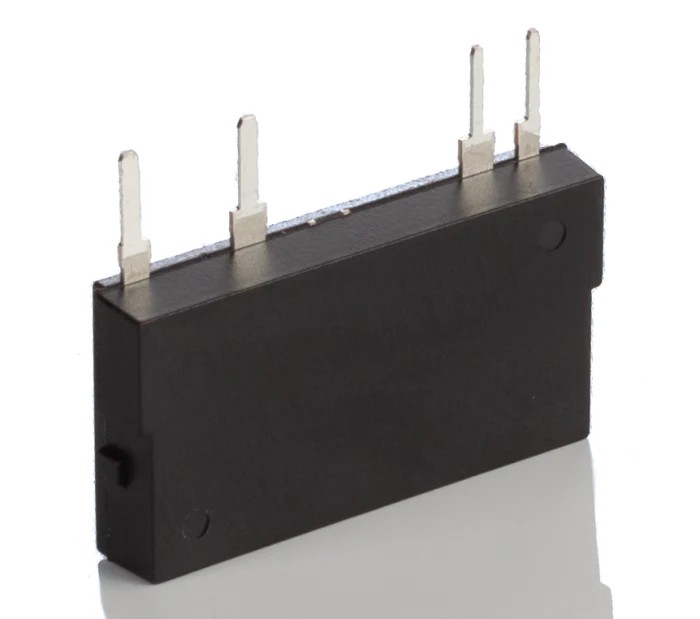

Panasonic Solid State Relay AQZ204, 0.5 A Load Current, 400 V Load Voltage, PCB Mount, 5V DC Control

Panasonic AQZ204 solid state relay is a highly reliable photoMOS relay equipped with a MOSFET output and a compact SIL-4 casing designed for PCB mounting. It supports a maximum load current of 0.5 A and a load voltage up to 400 V, making it suitable for diverse electrical control applications.

This relay features an on-state resistance of 0.18Ω, ensuring efficient conduction with minimal power loss, and maintains a low off state leakage current of 10μA for optimal performance. It operates under a broad temperature range between -40°C to 85°C, catering to demanding industrial environments.

The AQZ204 incorporates PCB terminals and complies with UL standards, highlighting its safety and quality assurance. Its MOSFET output stage allows high-speed switching, making it ideal for use in telecommunications equipment, measuring devices, industrial robots, and high-speed communication systems.

The device holds an IP20 rating which provides protection against solid objects but requires appropriate housing for full environmental protection. The SIL-4 package design allows for compact placement on PCB layouts, optimizing space utilization in electronic assemblies.

This Panasonic solid state relay is manufactured in Japan, exemplifying stringent quality controls and durability. Its wide control voltage range from 1.5V DC minimum to 5V DC maximum allows flexible integration with digital control circuitry.

Operates with maximum load current of 0.5 A for efficient switching. Supports maximum load voltage of 400 V ensuring compatibility with various circuits. Compact SIL-4 package type with secure PCB terminal mounting. MOSFET output stage enhances fast switching and low on state resistance of 0.18Ω.

Features IP20 rating, suitable for protected indoor environments. Wide operating temperature from -40°C to 85°C for robust industrial use. Low off state leakage current at 10μA minimizes power loss in control circuits. Compliance with UL standards ensures safety and quality.

Designed for use in telecommunication, high-speed communications, and industrial robotic systems.

For professional electronics, automation, and industrial control system applications, the Panasonic AQZ204 offers proven performance and reliability. Explore additional Panasonic Solid State Relays and related products in our comprehensive category at EnvMart.
