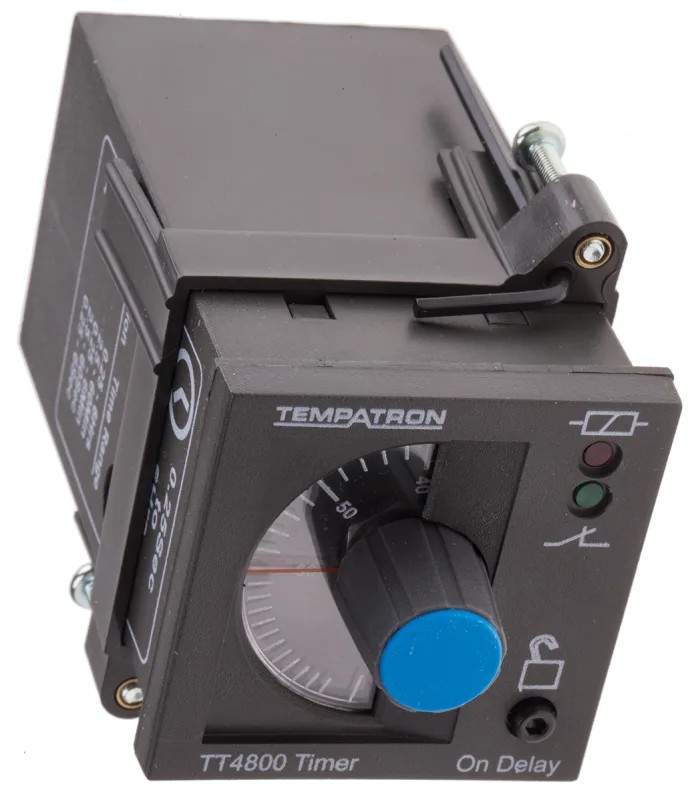

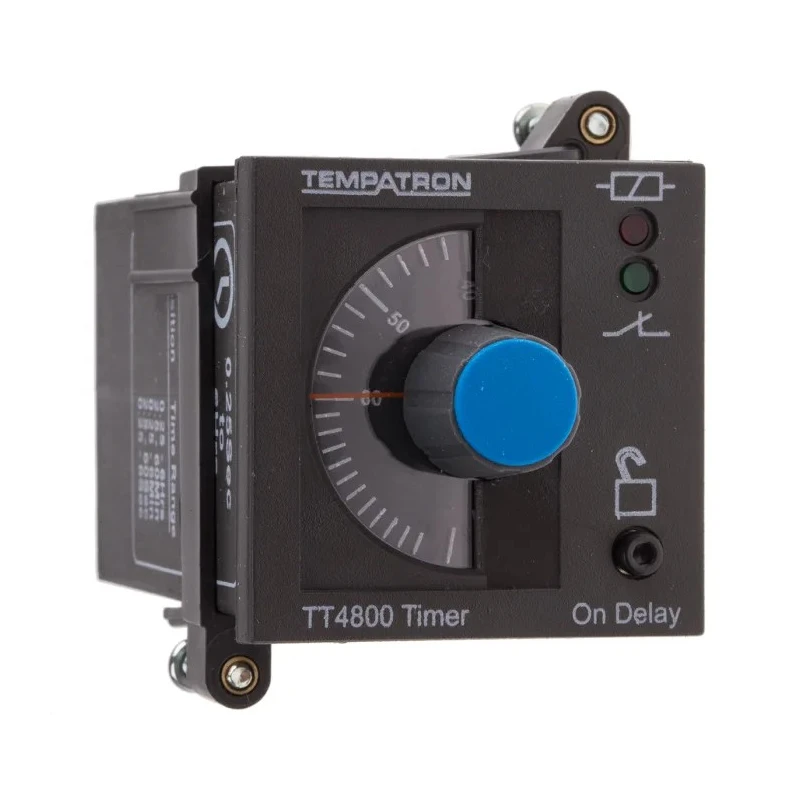

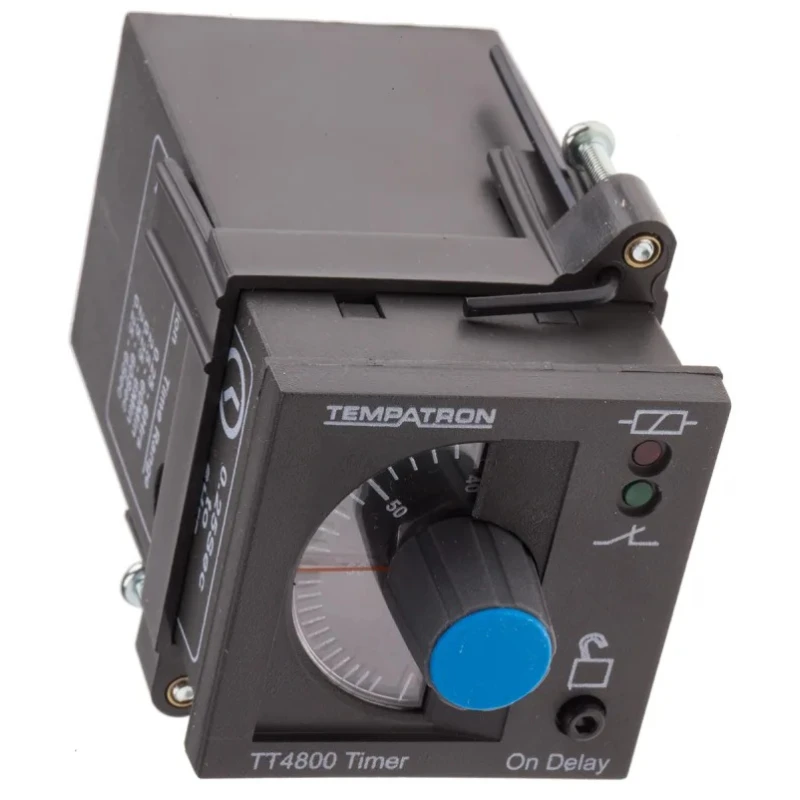

Tempatron DIN Rail Panel Mount Timer Relay, 2-Contact DPDT, 230V AC, ON Delay, 6s to 6h, 1-Function TT4801
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 106mm |
| Function | ON Delay |
| Length | 48mm |
| Model | TT4801 |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 48mm |
| Mount Type | DIN Rail, Panel Mount |
| Series | TT4801 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 6s to 6 h |
| Terminal type | 11-Pin |
| Standards/Approvals | EN/IEC |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Contact Current | 5A |
| Timing Adjustment | Knob |
| Supply AC Voltage | 230V ac |
Key Features
- Equipped with an 11-pin terminal type for easy DIN rail or panel mounting installation.
- Lockable dial ensures tamper-proof timing adjustment using a screwdriver rotary switch.
- Compact dimensions of 106mm height, 48mm width, and 48mm length for space-efficient mounting.
- Rated for contact current up to 5A with AgCdO contact material ensuring reliable performance.
- Operates precisely within a temperature range of -10°C to 60°C for diverse industrial environments.
- IP40 rated casing provides protection against solid objects over 1mm in size.
- Conforms to international standards EN 50081-1, EN 50082-1, and EN 61010-1 for safety and electromagnetic compatibility.
- Ideal for automation, electrical control panels, industrial machinery, and process control applications.
Product Description
Tempatron TT4801 Series Timer Relay is a robust and versatile DIN rail and panel mount device tailored for industrial automation and control applications. It features a 2-contact DPDT switching mechanism with an ON delay timing function adjustable from 6 seconds up to 6 hours.
The unit is designed for reliable and secure operation, with a lockable rotary dial on the side that prevents unauthorized tampering, allowing time range selection via screwdriver. Its 11-pin terminal simplifies connection and installation in electrical panels or control cabinets.
Built to withstand demanding environments, TT4801 operates within a temperature range of -10°C to 60°C, protected to IP40 standards against dust and solid intrusions. The AgCdO contact materials ensure longevity and stable contact current up to 5A.
This timer relay's compact form factor, with dimensions of 106mm (height) by 48mm (width and length), suits tight mounting spaces and DIN rail setups commonly found in industrial automation systems.
Lockable dial for tamper-proof timing adjustment. Time range selectable by screwdriver between 6 seconds and 6 hours. Suitable for plug-in or panel mounting. DPDT 2-contact configuration with reliable AgCdO contacts. Rated contact current of 5A at 230V AC.
IP40 rated protection for indoor electrical equipment. Operational temperature range from -10°C to 60°C. Conforms to EN 50081-1, EN 50082-1, and EN 61010-1 standards.
Designed for use in electrical automation, manufacturing equipment, HVAC control, and other industrial applications requiring precise time delay functions, the Tempatron TT4801 timer relay provides dependable performance and ease of integration.
Explore the Tempatron range of Timer Relays and related automation components at EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable time range from 6 seconds to 6 hours.
It features a 2-contact DPDT (Double Pole Double Throw) configuration.
The rated contact current is up to 5A.
The dimensions are 106mm in height, 48mm in width, and 48mm in length.
It operates within a temperature range of -10°C to 60°C.
Timing adjustment is made using a lockable rotary dial that requires a screwdriver.
This model supports DIN rail and panel mounting.
It has an IP40 rating, providing protection against solid objects larger than 1mm.
The timer relay conforms to the EN 50081-1, EN 50082-1, and EN 61010-1 standards.
The supply voltage for this model is 230V AC.

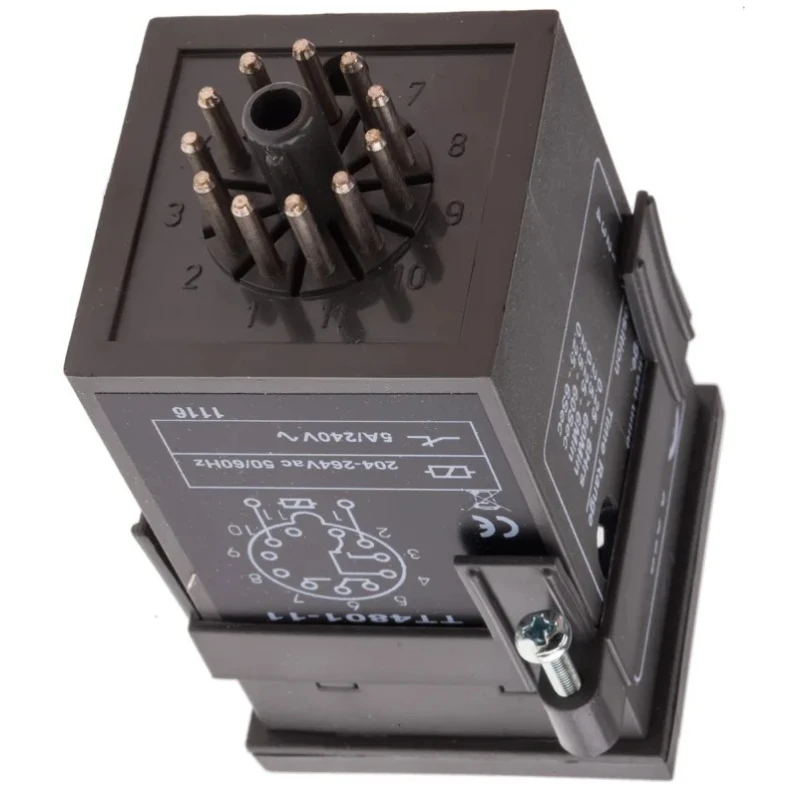

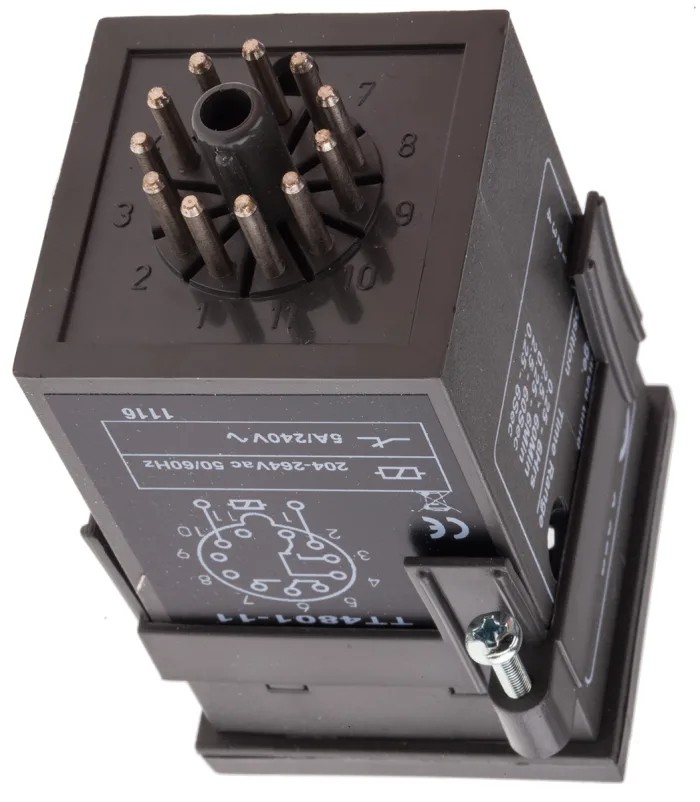

It is equipped with an 11-pin terminal type for easy installation.
It is suitable for automation, electrical control panels, industrial machinery, and process control applications.
