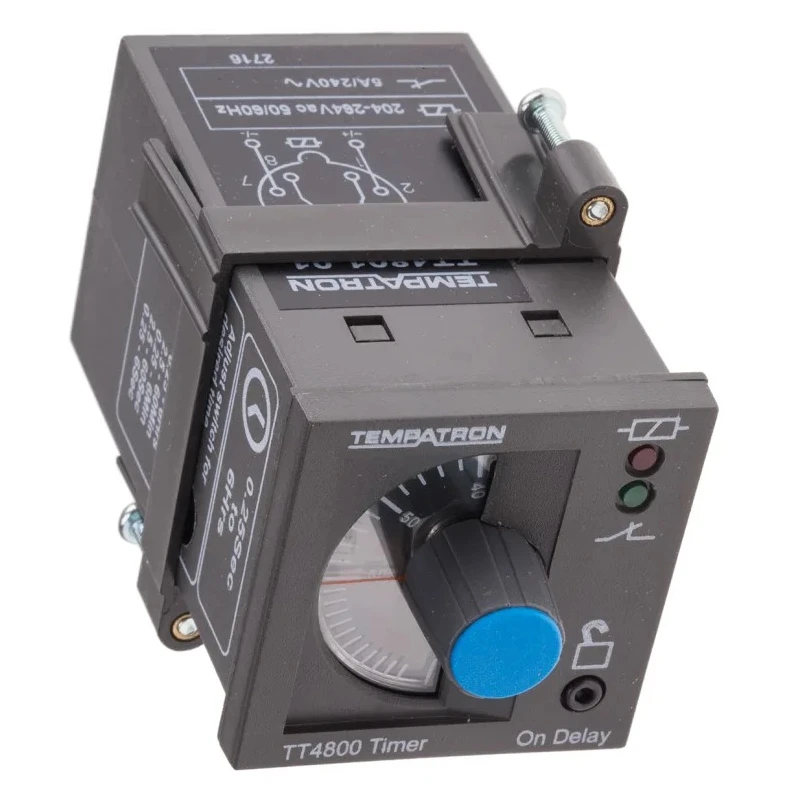

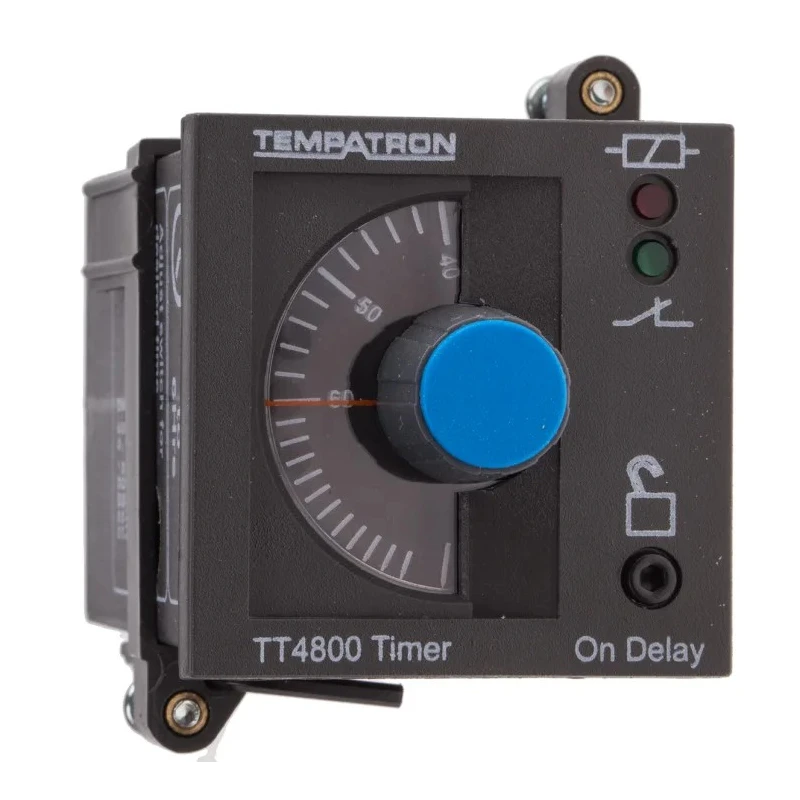

Tempatron TT4801 Series DIN Rail, Panel Mount Timer Relay 230V AC 6 s to 6 h ON Delay DPDT Switch TT4801
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 106mm |
| Length | 48mm |
| Model | TT4801 |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 48mm |
| Mount Type | DIN Rail, Panel Mount |
| Series | TT4801 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 6 s to 6 h |
| Terminal type | 8-Pin |
| Standards/Approvals | EN/IEC |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Contact Current | 5A |
| Timing Adjustment | Knob |
| Supply AC Voltage | 230V ac |
Key Features
- Suitable for industrial automation and electrical control panels.
- Time range is adjustable via screwdriver-controlled rotary switch.
- Lockable dial prevents unauthorized tampering.
- DPDT contact uses AgCdO contact material for durability.
- Operates reliably within -10°C to 60°C ambient temperature range.
- Compact 48mm width and 106mm height for DIN rail or panel mounting.
- 8-pin terminal configuration offers simple wiring integration.
- Complies with relevant EN and IEC standards for safety and performance.
Product Description
Tempatron TT4801 Series DIN Rail, Panel Mount Timer Relay, model TT4801, is designed for precise timing applications in industrial and electrical automation systems. Operating at 230V AC, this timer relay features a time range adjustable between 6 seconds and 6 hours, controlled by a screwdriver-operated rotary switch. The relay incorporates an ON Delay function with a durable DPDT (Double Pole Double Throw) contact configuration, utilizing AgCdO contact material for high conductivity and longevity.
This timer relay is suitable for mounting on DIN rails or panels, measuring 48mm in width and 106mm in height, allowing flexible installation options. The device operates reliably in ambient temperatures ranging from -10°C to +60°C, and its knob is lockable to prevent unauthorized adjustments, ensuring stable timing settings in demanding environments.
The timer relay includes 8-pin terminals to facilitate secure wiring and connection in control circuits. It has an IP40 rating, providing protection against solid objects and ensuring operational safety within enclosure setups. Compliance with EN 50081-1, EN 50082-1, and EN 61010-1 standards highlights its adherence to electromagnetic compatibility and safety requirements.
Tempatron TT4801 timer relays are widely used in industrial automation, manufacturing process control, electrical panel timing tasks, HVAC systems, and other applications requiring precise time delay control.
Suitable for industrial automation and electrical control panels. Time range is adjustable via screwdriver-controlled rotary switch. Lockable dial prevents unauthorized tampering. DPDT contact uses AgCdO contact material for durability.
Operating temperature range from -10°C to 60°C ensures reliability. Compact DIN rail and panel mounting design with 48mm width. 8-pin terminal type for easy installation. Conforms to EN and IEC safety and performance standards.
Explore comprehensive solutions in Timer Relays and automation devices with EnvMart’s extensive product categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TT4801 timer relay has an adjustable time range from 6 seconds to 6 hours, controlled via a screwdriver-operated rotary switch.
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
The timer relay operates reliably within an ambient temperature range of -10°C to +60°C.
The TT4801 can be mounted on DIN rails or panels, providing flexibility in installation.
This timer relay has an IP40 rating, offering protection against solid objects and ensuring operational safety within enclosures.
The TT4801 timer relay operates at a supply voltage of 230V AC.
This model features 2 contacts, suitable for various switching applications.
The dimensions of the TT4801 are 48mm in width and 106mm in height.

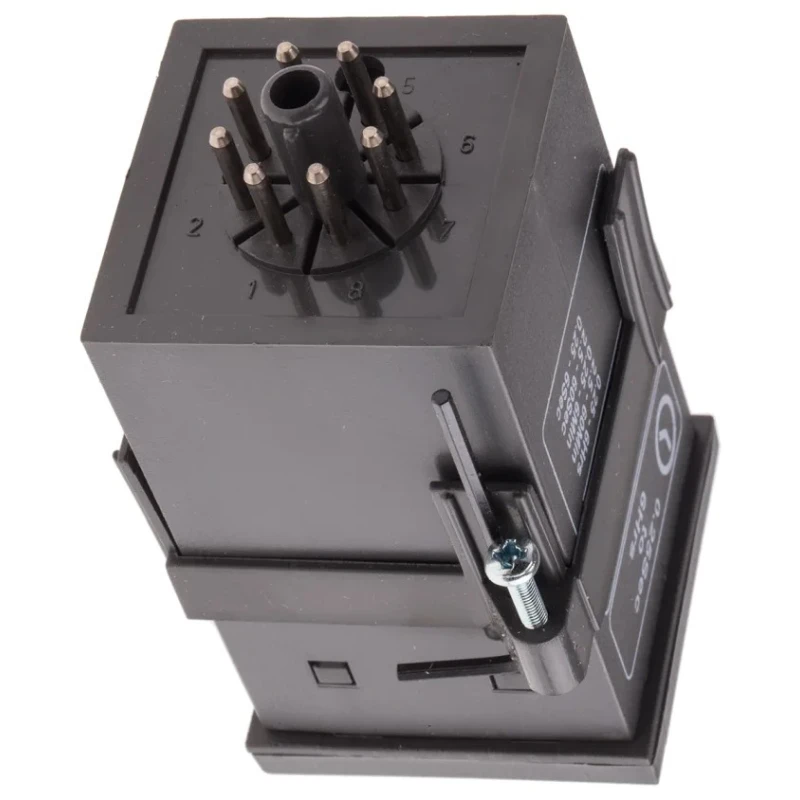

The timer relay includes 8-pin terminals, facilitating secure wiring and connection in control circuits.
The contacts utilize AgCdO contact material, which is known for its durability and high conductivity.
This timer relay complies with relevant EN and IEC standards, ensuring safety and performance in its applications.
Timing adjustment for the TT4801 is made using a knob, which allows for easy and precise setting of the time delay.
