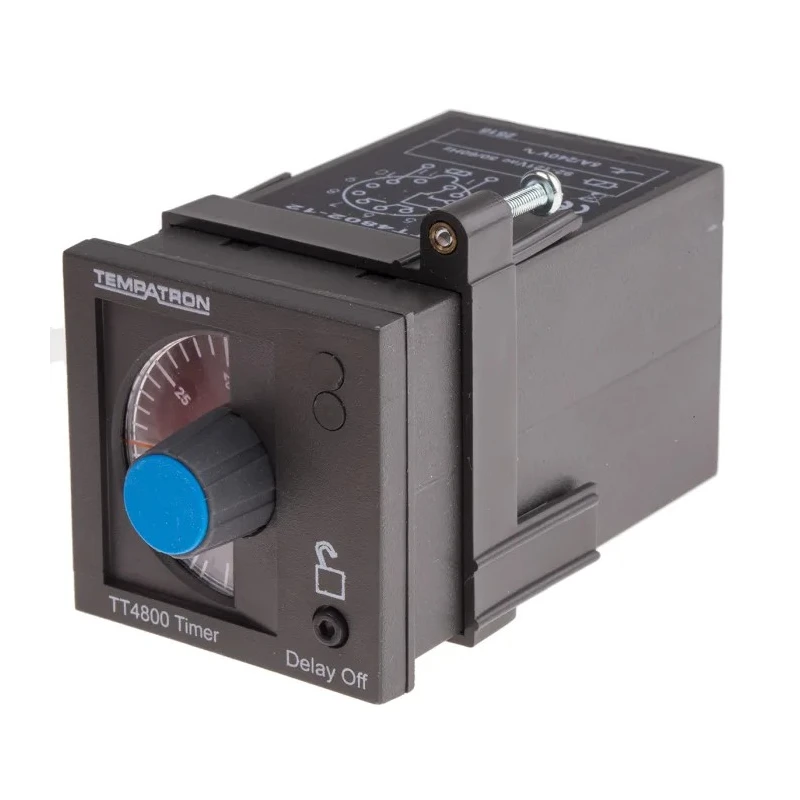

Tempatron TT Series DIN Rail, Panel Mount Timer Relay 2-Contact 110V AC 3 s to 30 min ON Delay DPDT TT4802-12

Tempatron TT4802-12 is a high-quality DIN rail and panel mount timer relay designed for electrical automation and control systems. Featuring dual contact points arranged in a double pole double throw (DPDT) configuration, this relay offers flexible switching capabilities on a 110V AC supply.

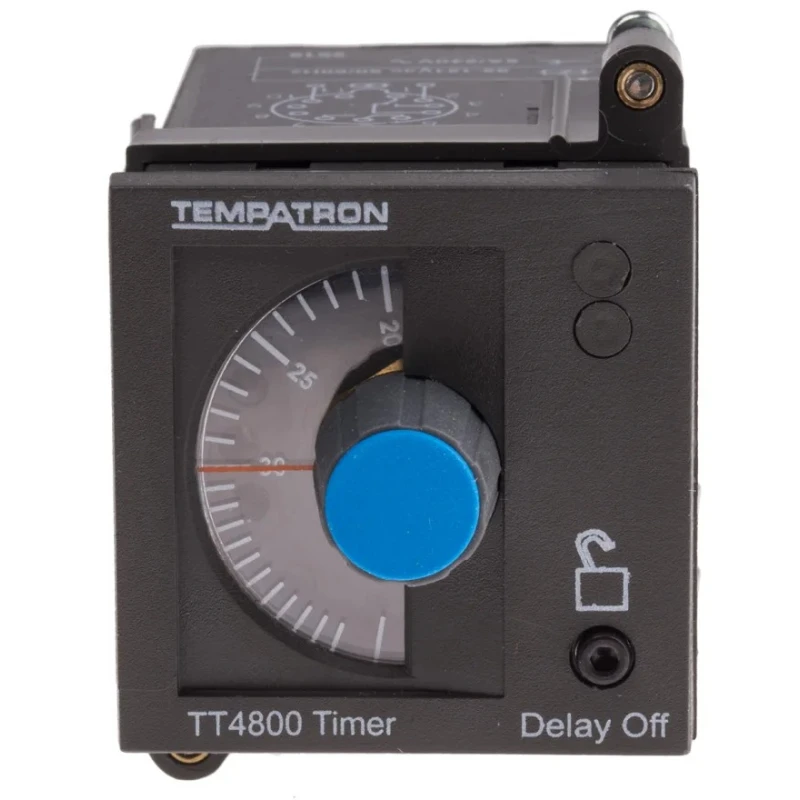

With a selectable time range from 3 seconds up to 30 minutes, the timing is easily adjusted via a screwdriver-operated rotary switch, which is secured by a lockable dial to prevent accidental adjustments. Its compact form factor with dimensions of 106 mm height by 48 mm width and length allows seamless integration into control panels and electrical enclosures.

The relay operates with an ON Delay mode making it ideal for sequencing applications where delayed activation is crucial. The contact current rating of 5A permits switching of moderate electrical loads with reliable performance. This timer relay also has an IP40 ingress protection rating, suitable for indoor uses where protection against solid objects is required but not against moisture.

Designed to meet stringent EN and IEC standards, this timer relay offers durability, safety, and precise performance in demanding industrial, manufacturing, and automation environments. The relay's operating temperature range from -10°C to 60°C ensures stable operation across typical workshop and factory conditions.

This timer relay features a DPDT contact configuration suitable for versatile circuit switching. Time range can be adjusted by a rotary switch using a screwdriver. A lockable dial prevents accidental tampering during operation.

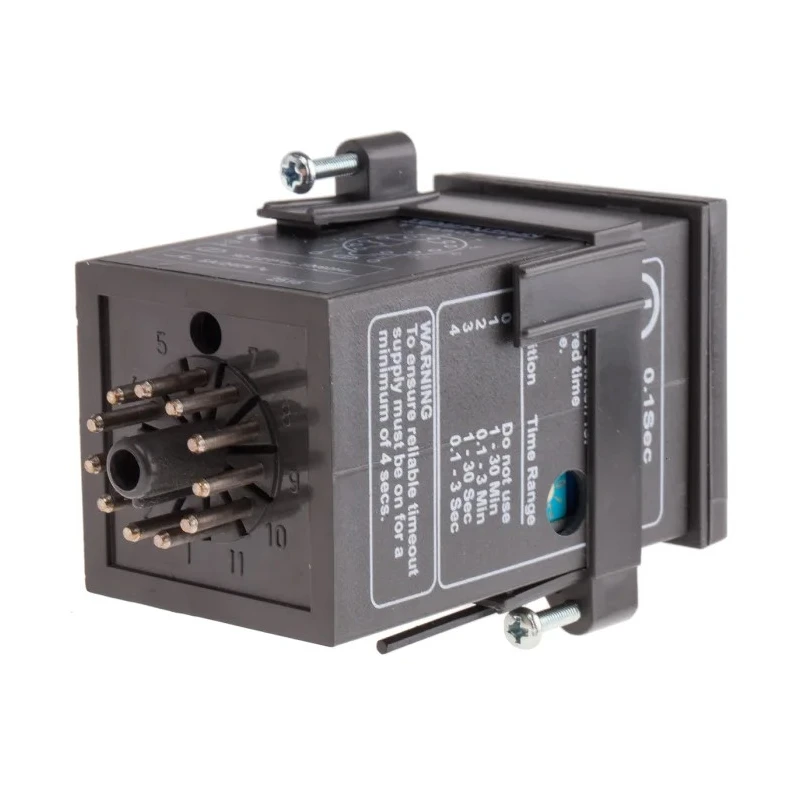

The unit uses an 11-pin terminal type for secure mounting and wiring. It operates within a temperature range of -10°C to 60°C for reliable functionality under varied conditions. The relay supports a contact current of 5A, ideal for moderate load switching.

IP40 rating provides basic protection against solid objects for indoor installations. The mode of operation is ON Delay, making it suitable for delayed power application scenarios. Dimensions are compact at 106 mm height, 48 mm width, and 48 mm length for easy panel integration.

Manufactured in the United Kingdom ensuring quality and compliance with EN/IEC standards.

This timer relay is suitable for use in industrial automation systems, electrical control panels, HVAC control, manufacturing process control, and similar applications requiring precise timing functions. It is also compatible with a wide range of DIN rail mounting systems for quick and secure installation.
