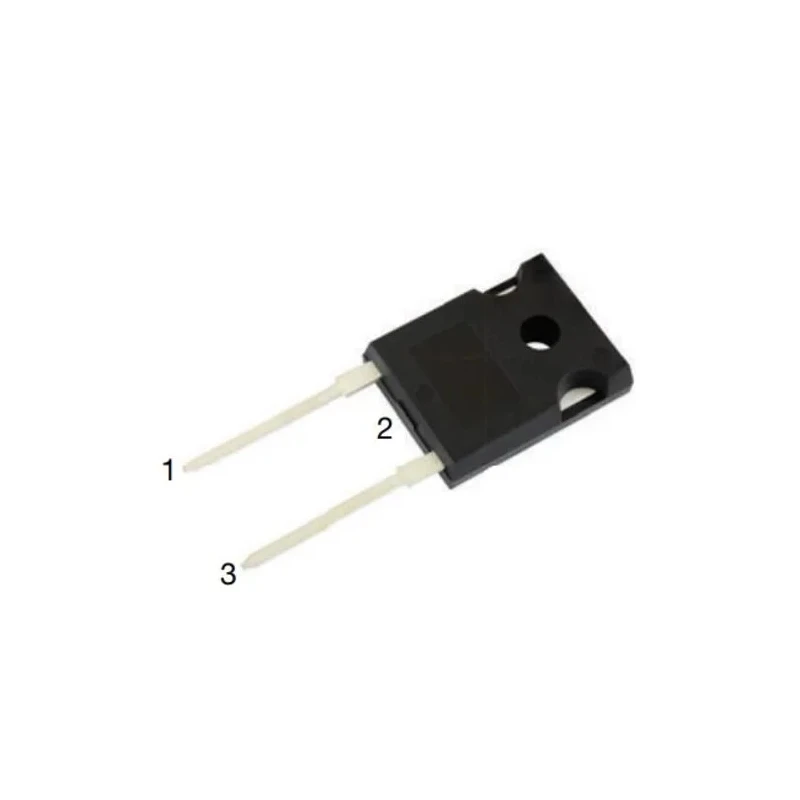

Vishay 600 V 60 A Rectifier & Schottky Diode General Purpose TO-247AD 2L VS-E5TH1506THN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5TH1506THN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.6V |
| Peak Reverse Recovery Time trr | 49ns |
Key Features
- Designed with TO-247AD 2L through hole package for easy mounting.
- Maximum continuous forward current of 60 amperes ensures robust current handling.
- Peak reverse repetitive voltage of 600 volts for reliability in high-voltage applications.
- Low forward voltage drop of 1.6 volts reduces conduction losses.
- Peak non-repetitive forward surge current capability of 200 amperes supports transient currents.
- Peak reverse current is limited to 500 microamperes ensuring minimal leakage.
- High maximum operating junction temperature up to 175°C suitable for demanding environments.
- Optimized for high-speed switching with 49 nanoseconds peak reverse recovery time.
Product Description
Vishay VS-E5TH1506THN3 Rectifier & Schottky Diode is an industrial-grade semiconductor device designed for general-purpose rectification with superior electrical performance. This diode integrates a TO-247AD 2L through hole package, facilitating reliable mechanical assembly and effective heat dissipation in power conversion systems.
With a maximum continuous forward current rating of 60 A and a peak reverse repetitive voltage of 600 V, it is capable of handling demanding power loads in industrial and automotive applications.
The device exhibits a low maximum forward voltage drop of 1.6 V, which contributes to enhanced efficiency by minimizing conduction losses. This Schottky diode also features a peak non-repetitive forward surge current rating of 200 A, ensuring resilience to transient overload conditions.
Its switch speed characteristics are optimized with a peak reverse recovery time of 49 ns, making it suitable for high-frequency switching applications including resonant and soft switched converters.
Constructed with polyimide passivation, it achieves high junction temperatures up to 175 °C, supporting robust operation in harsh thermal environments.
The diode is RoHS compliant, reflecting adherence to environmental standards, and an AEC-Q101 qualification supports automotive battery charger applications, specifically for EV and HEV on-board charger output rectification stages.
TO-247AD 2L through hole package provides mechanical and thermal stability. Efficient forward voltage and switching loss balance for high-speed switching applications. High temperature tolerance up to 175 °C junction temperature.
Certified for automotive applications with AEC-Q101 and JESD 201 class 1A whisker test. Ideal for industrial, automotive, renewable energy, and power management systems. Choose Vishay VS-E5TH1506THN3 for reliable and efficient rectification in demanding semiconductor applications.
Explore complete Vishay and other semiconductor diode selections and advanced power components on EnvMart for industrial and automotive solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 60 amperes.
This diode uses a TO-247AD 2L through hole package for mounting.
The maximum forward voltage drop is 1.6 volts, which helps reduce conduction losses.
It can handle a peak non-repetitive forward surge current of 200 amperes.
The maximum operating junction temperature is 175°C, while the minimum is -55°C.
Yes, the diode is RoHS compliant, indicating adherence to environmental standards.
This model is suitable for industrial, automotive, renewable energy, and power management systems.
It features a single diode configuration.
It meets the AEC-Q101 qualification and is certified for automotive applications, along with passing the JESD 201 class 1A whisker test.
