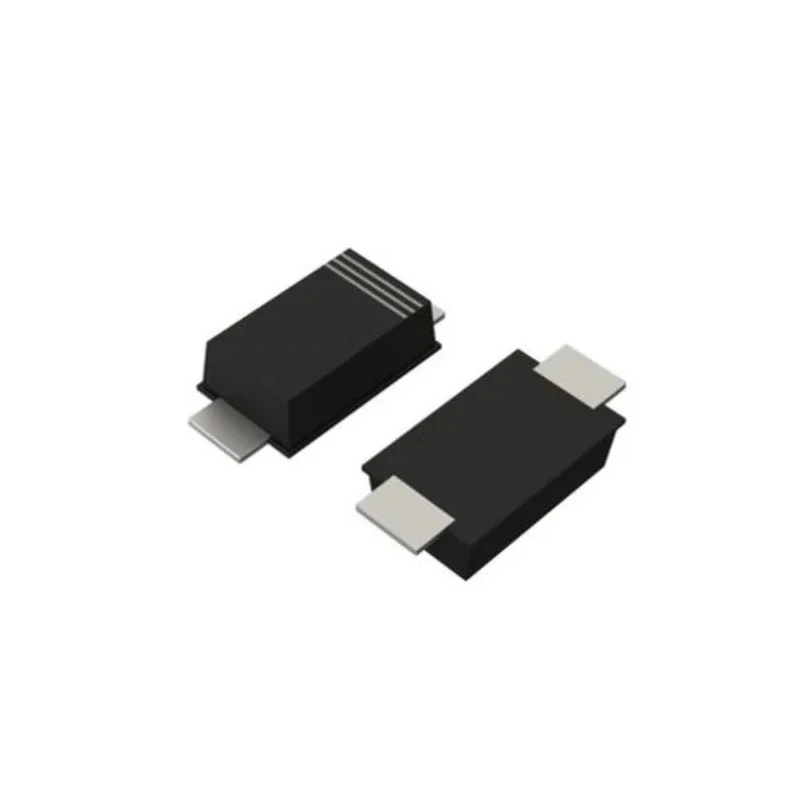

ROHM 60 V 3 A Schottky Diode Surface Mount SOD-123FL RBR3MM60ATFTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | RBR3MM60ATFTR |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- Compact SOD-123FL package suitable for space-saving PCB layouts.
- Supports maximum continuous forward current of 3 amperes.
- Peak reverse repetitive voltage rating of 60 volts for reliable switching.
- Low forward voltage drop of 0.58 volts to improve efficiency.
- Wide operating temperature range from -55°C to 150°C ensures versatility.
- Single diode configuration with 2 pins suitable for discrete semiconductor applications.
- Compliant with RoHS standards for environmental safety.
- Qualified to automotive standard AEC-Q101 for enhanced reliability.
Product Description
ROHM RBR3MM60ATFTR Schottky Diode is a high-reliability semiconductor component designed for power rectification in electronics and electrical systems. This diode features an epitaxial planar type structure within a compact SOD-123FL surface mount package, ideal for modern printed circuit board applications demanding space efficiency.
The diode supports a maximum continuous forward current of 3 amperes and withstands a peak reverse repetitive voltage of 60 volts. It has a low forward voltage (Vf) of 0.58 volts, which reduces power loss and improves circuit efficiency. Operating temperatures range from -55°C to 150°C, allowing use in a variety of industrial, automotive, and commercial electronic environments.
This device is a single configuration, 2-pin Schottky diode, suitable for use in rectification and switching applications requiring rapid recovery and low forward voltage. The product complies with RoHS directives ensuring environmental protection and meets AEC-Q101 automotive standards, making it suitable for automotive electronics.
Compact SOD-123FL surface mount package for space-constrained designs. Maximum continuous forward current: 3 A. Peak reverse repetitive voltage: 60 V. Low forward voltage at 0.58 V reduces power loss. Wide temperature range from -55°C to 150°C.
Single diode with 2-pin configuration. RoHS compliant and AEC-Q101 qualified.
This Schottky diode is widely utilized in industrial power supplies, automotive electronics, consumer products, and electronic rectification circuits. Its small form factor and high performance make it optimal for circuit designs prioritizing efficiency and reliability.
Explore more semiconductor components and Schottky Diodes suitable for electronic assembly and manufacturing at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 amperes.
It has a peak reverse repetitive voltage rating of 60 volts.
The dimensions of the SOD-123FL package are 2.7mm in length, 1.7mm in width, and 0.9mm in height.
The maximum forward voltage drop is 0.58 volts.
The operating temperature range is from -55°C to 150°C.
Yes, this diode is compliant with RoHS standards for environmental safety.
It is qualified to the automotive standard AEC-Q101.
This model features a single diode configuration with 2 pins.
The peak reverse current is 100 microamperes (100μA).
It is suitable for power rectification and switching applications in industrial, automotive, and consumer electronics.
This diode uses a surface mount type.
The country of origin for this diode is India.
