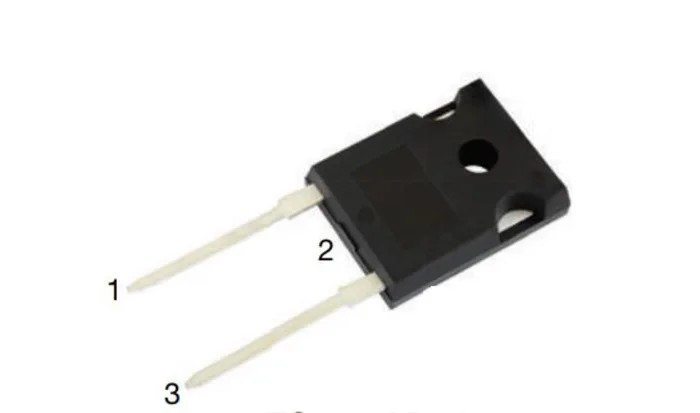

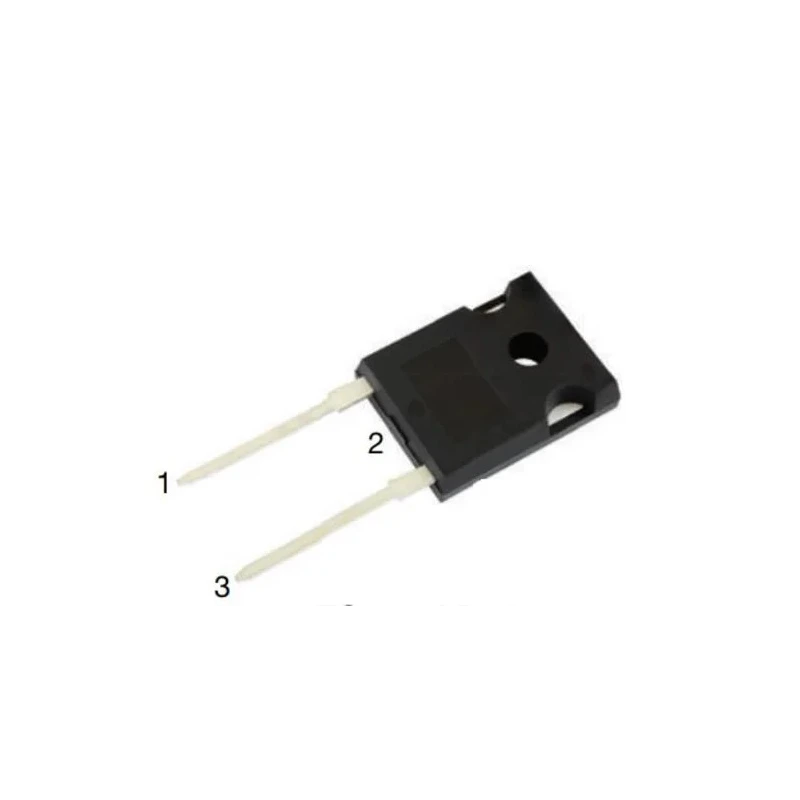

Vishay 600 V 120 A Rectifier & Schottky Diode General Purpose TO-247AD 2L VS-E5PX6006LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5PX6006LHN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 480A |
| Maximum Forward Voltage Vf | 2.2V |
| Peak Reverse Recovery Time trr | 67ns |
Key Features
- This diode features a maximum continuous forward current of 120 A and a peak reverse repetitive voltage of 600 V.
- It has a low forward voltage drop of 2.2 V, reducing conduction losses.
- Designed for efficient soft switched and resonant converters including EV and HEV battery chargers.
- The device can operate at temperatures ranging from -55°C to 175°C.
- It offers fast switching with a peak reverse recovery time of 67 ns and a peak non-repetitive forward surge current of 480 A.
- The diode is RoHS compliant and meets stringent automotive quality standards (AEC-Q101, JESD 201 class 1A whisker test).
- Its polyimide passivation enhances robustness and reliability.
- Ideal for medium frequency hard switching applications requiring low conduction and switching losses.
Product Description
Vishay VS-E5PX6006LHN3 is a high-performance general purpose rectifier and Schottky diode designed for through-hole mounting in a TO-247AD 2L package. It supports a maximum continuous forward current of 120 A and can withstand a peak reverse repetitive voltage of 600 V. This device operates effectively under a wide temperature range from -55°C minimum to 175°C maximum junction temperature, making it suitable for demanding industrial and automotive environments.
This diode is engineered to offer an excellent balance between low conduction losses and fast switching, achieved through its hyperfast technology and optimized charge recovery characteristics. The device exhibits a maximum forward voltage drop of 2.2 V and a peak reverse recovery time of only 67 ns, making it ideal for efficient power conversion in soft switched, resonant converters, and high-speed LLC output rectification stages.
Its robust construction includes polyimide passivation, ensuring enhanced durability and reliability under thermal and electrical stresses. The diode is RoHS compliant and has passed automotive-grade qualifications such as AEC-Q101 and the JESD 201 class 1A whisker test, confirming its suitability for electric vehicle (EV) and hybrid electric vehicle (HEV) battery charger applications.
The peak non-repetitive forward surge current rating of 480 A and a low peak reverse current of 500 μA further demonstrate the device's capability to handle transient conditions during operation.
Maximum Continuous Forward Current: 120 A. Peak Reverse Repetitive Voltage: 600 V. Maximum Forward Voltage: 2.2 V. Operating Temperature Range: -55°C to 175°C. Peak Reverse Recovery Time: 67 ns. Compliant with RoHS and automotive standards AEC-Q101.
Package Type: TO-247AD 2L. Optimized for medium frequency hard switching and EV/HEV battery charger applications.
This Vishay Schottky diode is an excellent choice for industrial, automotive, and power electronics applications where enhanced efficiency and reliability are crucial. Explore our wide range of semiconductor components to find compatible products for your system design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 120 A.
The peak reverse repetitive voltage rating is 600 V.
It operates effectively within a temperature range of -55°C to 175°C.
The maximum forward voltage drop is 2.2 V.
The peak reverse recovery time is 67 ns.
This diode is packaged in a TO-247AD 2L configuration for through-hole mounting.
The peak non-repetitive forward surge current rating is 480 A.
Yes, this diode is RoHS compliant.
It meets automotive standards AEC-Q101 and has passed the JESD 201 class 1A whisker test.
It is designed for efficient soft switched and resonant converters, including EV and HEV battery chargers.
The peak reverse current rating is 500 μA.
The diode configuration is single.
