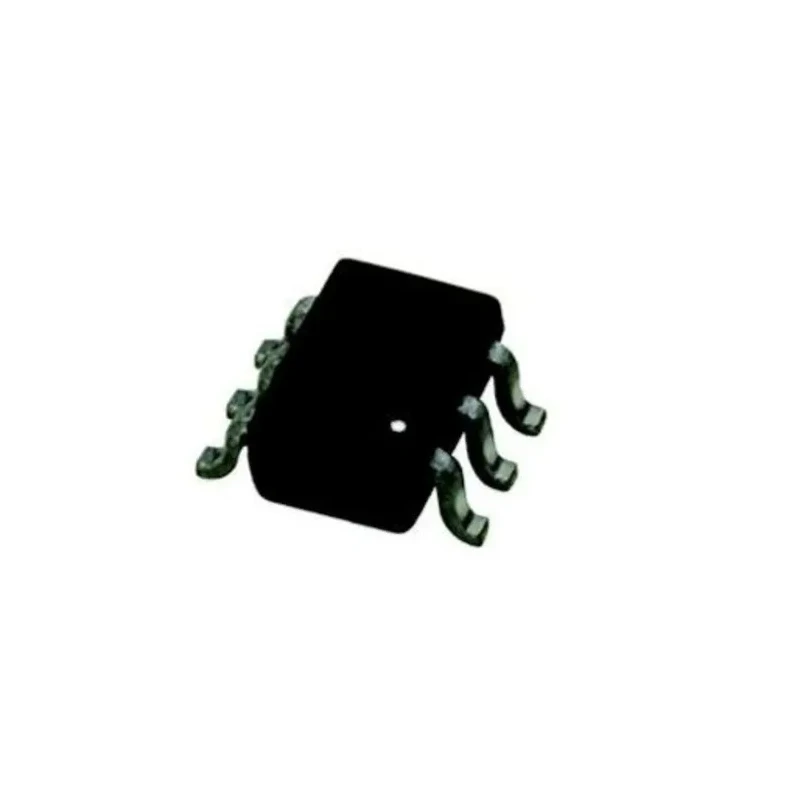

ROHM Transistor 150 mA NPN 50 V 6-Pin SOT-457 Dual Configuration IMX1T110

ROHM IMX1T110 Transistor is a dual NPN bipolar transistor designed with a voltage rating of 50 V and maximum DC collector current of 150 mA, packaged in a surface mount SOT-457 package. It is primarily used in general purpose small signal amplifier circuits where independent transistor elements in a compact module reduce mounting cost and PCB area requirements.

This transistor offers stable operation within an extensive temperature range of 0°C to 150°C, ensuring durability in industrial and commercial electronic applications. Its minimum current gain of 120 and high transition frequency of 180 MHz enable efficient amplification at high frequencies.

The compact form factor, with dimensions of 3 mm length, 1.3 mm width, and height, suits miniature electronic designs and densely populated circuit boards. The dual transistor configuration with 6 pins provides flexibility for various circuit designs.

Key applications for the ROHM IMX1T110 include industrial electronics, consumer devices, and telecommunications equipment requiring reliable small signal amplification with space-saving design.

Surface mount SOT-457 package for compact design. 150 mA maximum collector current for low power usage. Operating temperature range of 0°C to 150°C for industrial reliability. High current gain ensures effective amplification.

Suitable for high frequency operation up to 180 MHz. Compact size for space-efficient PCB layouts. Dual transistor element configuration in single package.

This transistor is compliant with standard industrial requirements, although it has no specific certification approvals. It represents a versatile component option for PCB designers focusing on compact, efficient amplifier circuits.
