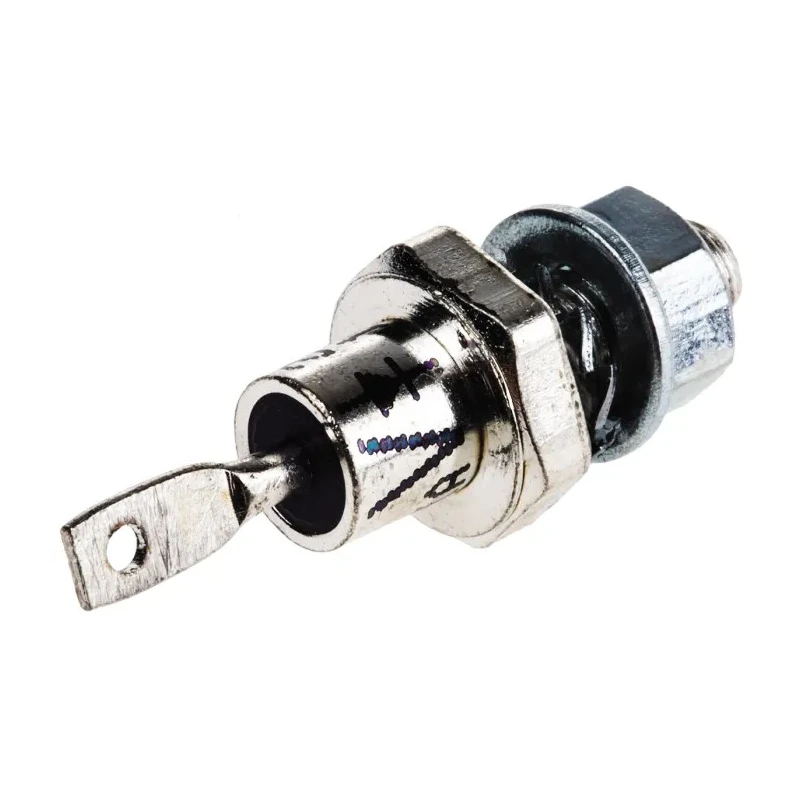

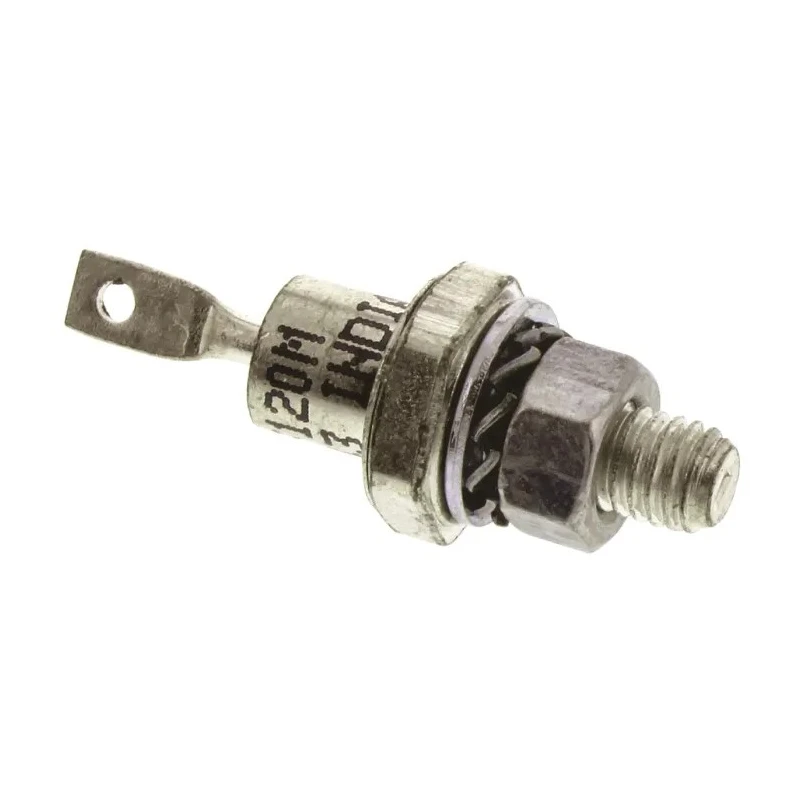

Vishay 1200 V 25 A Standard Recovery Switching Diode 2-Pin DO-203AA VS-25F120M

The Vishay VS-25F120M is a robust standard recovery switching diode rated at 1200 V peak reverse voltage and 25 A maximum continuous forward current, housed in a 2-pin DO-203AA package. This diode is constructed with a stud cathode configuration and designed for high efficiency and reliability in demanding electronic and power applications.

It features a maximum forward voltage of 1.3 V which ensures minimal power dissipation during operation and supports a peak non-repetitive forward surge current of 373 A, making it suitable for surge-prone environments. The operating temperature range of -65°C to 175°C allows this diode to perform reliably under harsh thermal conditions.

Physical dimensions include a height of 31.8 mm, length of 12.69 mm, and a diameter of 11 mm, packaged in industry-standard DO-203AA format suitable for screw mounting. The diode adheres to RoHS environmental standards and is free from hazardous substances.

This product is ideal for industrial, power electronics, semiconductor manufacturing, and laboratory applications where dependable switching diodes are required to manage voltage spikes and current flows. Its practical pin count of 2 and mounting type simplify integration into electronic circuits.

High peak reverse repetitive voltage of 1200 V supports demanding power handling needs. Standard screw mount design ensures mechanical stability in assemblies. Compliant with modern environmental regulations (RoHS certified).

Use cases include power management circuits, rectifiers, and switching devices in industrial and laboratory environments.

This Vishay diode is a trusted choice for engineers and technicians seeking durable and high-efficiency rectifiers. For more products and detailed semiconductor components, browse the Semiconductor category at EnvMart.
