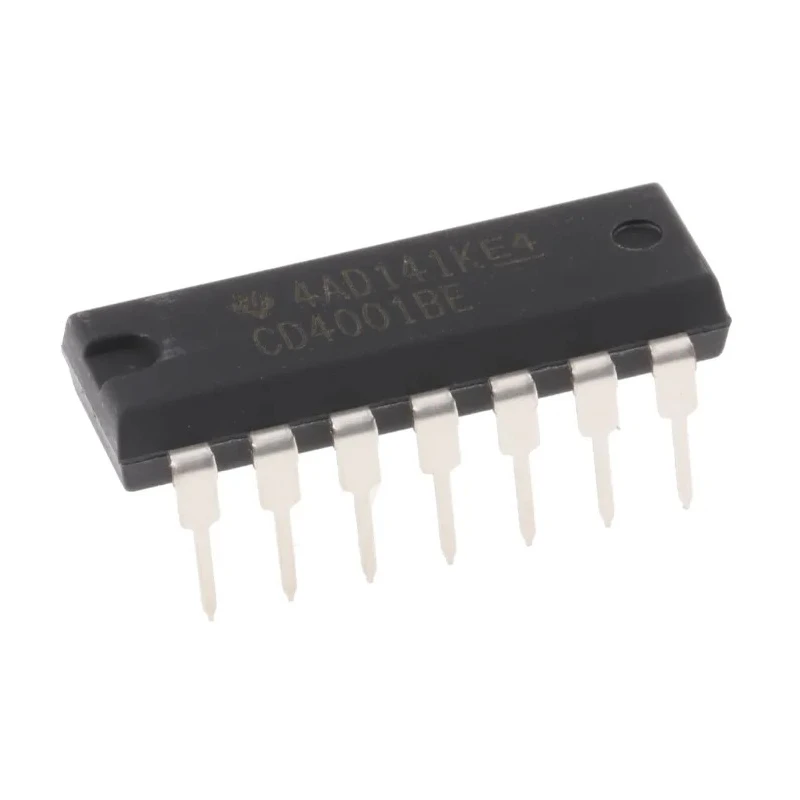

Texas Instruments 4 2-Input NOR Logic Gate, CMOS, 14-Pin PDIP CD4001BE

Texas Instruments CD4001BE is a 4 2-input NOR logic gate integrated circuit using CMOS technology, packaged in a 14-pin PDIP. It operates efficiently across a wide voltage range of 3V to 18V, making it suitable for varied electronic circuit designs and logic implementations.

The device contains four independent 2-input NOR gates, optimized for low power consumption and high noise immunity, characteristic of the 4000 series logic family. The IC supports operation between temperatures of -55°C to 125°C, providing reliable performance in industrial and demanding environments.

The maximum propagation delay time is rated at 90 nanoseconds under typical load capacitance, ensuring timely signal processing in digital circuits. It can source and sink a maximum current of approximately 4.2mA, enhancing output drive capabilities for interfacing with other digital components.

Its 14-pin PDIP package facilitates easy through-hole mounting on PCBs, favored in prototyping and educational setups. Dimensions measuring 19.3mm in length and 4.57mm in height make it a compact solution.

Texas Instruments CD4001BE is widely applied in electronic design, embedded systems, educational projects, and various semiconductor-based industrial applications requiring reliable NOR logic functionality. This component is new, ensuring the highest standards of quality and performance.

Comprises four independent 2-input NOR gates in a single package. Uses CMOS technology with low power consumption. Wide operating voltage range from 3V to 18V supports flexible design requirements. Operating temperature range of -55°C to 125°C supports harsh environments.

Maximum propagation delay time of 90ns allows efficient switching. 14-pin PDIP package for through-hole mounting. Ideal for industrial, educational, and prototyping electronic use cases. Maximum output current of ±4.2mA for effective interfacing.

Compatible with the 4000 series CMOS logic family. Compact dimensions suitable for space-constrained PCB layouts. Explore more semiconductor components and Logic Gates on EnvMart to complement your electronic projects with trusted brands and specifications.
