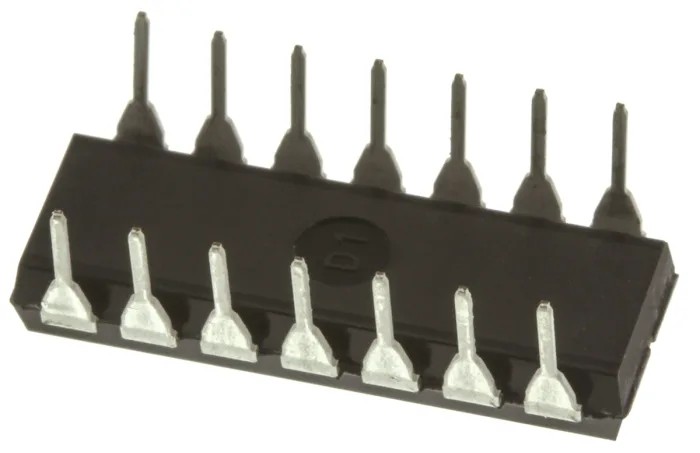

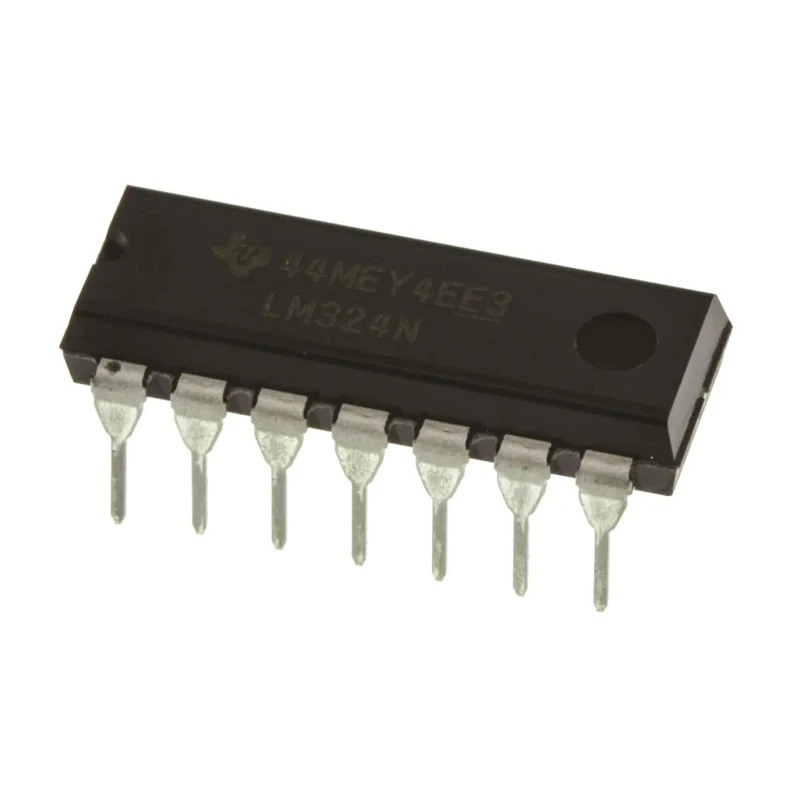

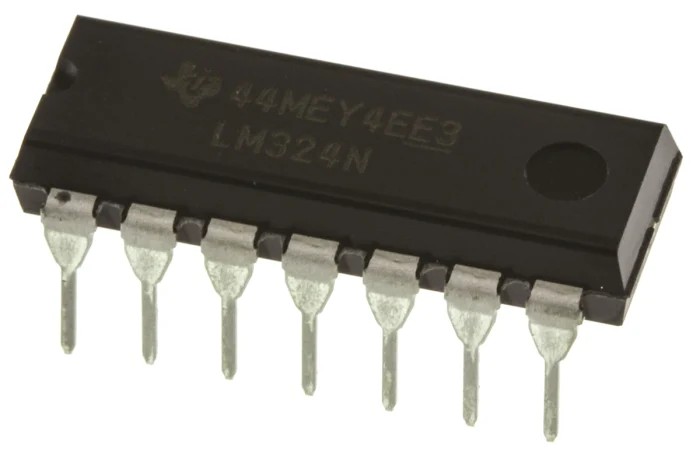

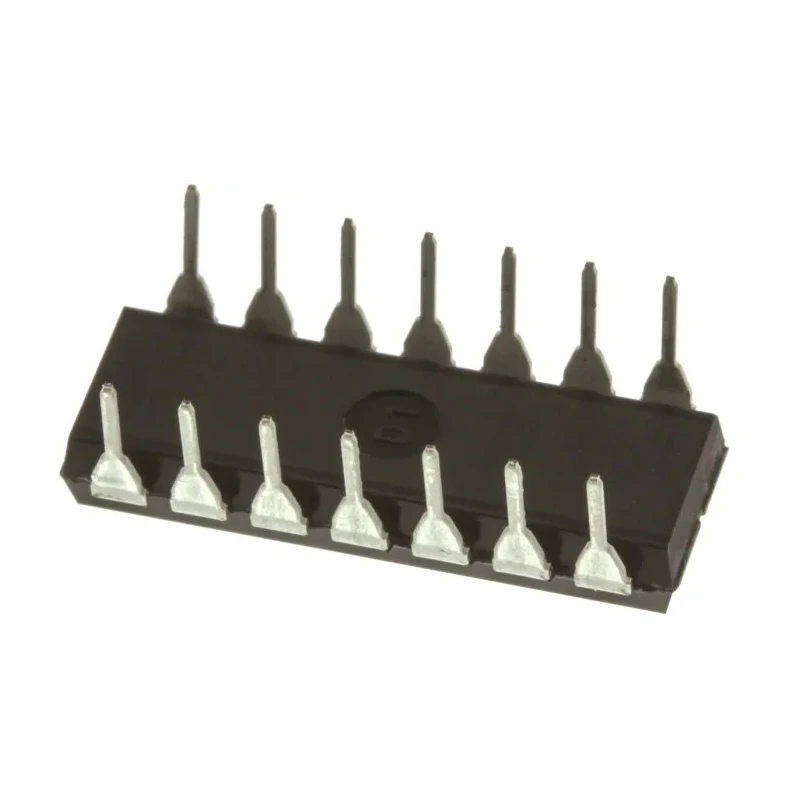

Texas Instruments Operational Amplifier 1.2 MHz 14-Pin 30V PDIP LM324N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LM324N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM324 |
| Output Current | -10mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -500 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 150 nA |
Key Features
- Features a 4-channel operational amplifier with a 1.2 MHz gain bandwidth product.
- Operates with supply voltages ranging from 5 V to 30 V for versatile use.
- Has a low input bias current of -500 nA and low input offset current of 150 nA.
- Includes a slew rate of 0.5 V/μs and an input offset voltage of 9 mV.
- Designed for operation in temperatures from 0°C up to 70°C.
- Package type is Through Hole PDIP with 14 pins and physical dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height.
- Complies with RoHS standards for environmental safety.
Product Description
Texas Instruments LM324N Operational Amplifier is a general purpose, 4-channel device housed in a 14-Pin PDIP through-hole package. It offers a gain bandwidth product of 1.2 MHz and is suitable for a wide range of industrial and laboratory electronic amplification applications. The device supports supply voltage from 5 V up to 30 V and operates reliably within a temperature range of 0°C to 70°C, making it suitable for diverse operating environments.
This operational amplifier features low input bias current and low input offset current, which contribute to its accuracy and stability in analog circuit designs. The slew rate of 0.5 V/μs ensures decent response time for moderate speed applications.
The LM324N comes in a standard 14-pin PDIP package with dimensions suitable for through-hole mounting on PCBs. It complies with RoHS environmental regulations, underlining its suitability for modern electronic designs where environmental impact is considered.
Typical applications of the LM324N include signal amplification in industrial controls, instrumentation, and consumer electronics. Its quad-channel configuration allows multiple amplification sections in a compact component footprint, increasing design efficiency. The product is widely used in prototyping and manufacturing in sectors such as industrial automation, audio amplification, and power management circuits.
Features a 4-channel operational amplifier with a 1.2 MHz gain bandwidth product. Operates with supply voltages ranging from 5 V to 30 V for versatile use. Has a low input bias current of -500 nA and low input offset current of 150 nA.
Includes a slew rate of 0.5 V/μs and an input offset voltage of 9 mV. Designed for operation in temperatures from 0°C up to 70°C. Package type is Through Hole PDIP with 14 pins and physical dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height.
Complies with RoHS standards ensuring environmentally safe manufacturing and disposal. Explore a wide range of Operational Amplifiers and semiconductor products at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM324N features a gain bandwidth product of 1.2 MHz, making it suitable for various amplification applications.
This operational amplifier operates with supply voltages ranging from 5 V to 30 V, providing versatility for different applications.
The LM324N is a 4-channel operational amplifier, allowing for multiple amplification sections in a compact design.
The LM324N comes in a 14-pin PDIP package with dimensions of 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The LM324N has a low input bias current of -500 nA, contributing to its accuracy in analog circuit designs.
This model is designed to operate within a temperature range of 0°C to 70°C, suitable for various environments.
The LM324N has a slew rate of 0.5 V/μs, which ensures decent response times for moderate speed applications.
The input offset voltage of the LM324N is 9 mV, which helps maintain stability in analog circuits.
This operational amplifier is designed for through-hole mounting, making it compatible with various PCB layouts.
The LM324N complies with RoHS standards, ensuring environmentally safe manufacturing and disposal practices.
The LM324N can handle an output current of -10 mA, suitable for various amplification tasks.
Typical applications for the LM324N include signal amplification in industrial controls, instrumentation, and consumer electronics.
