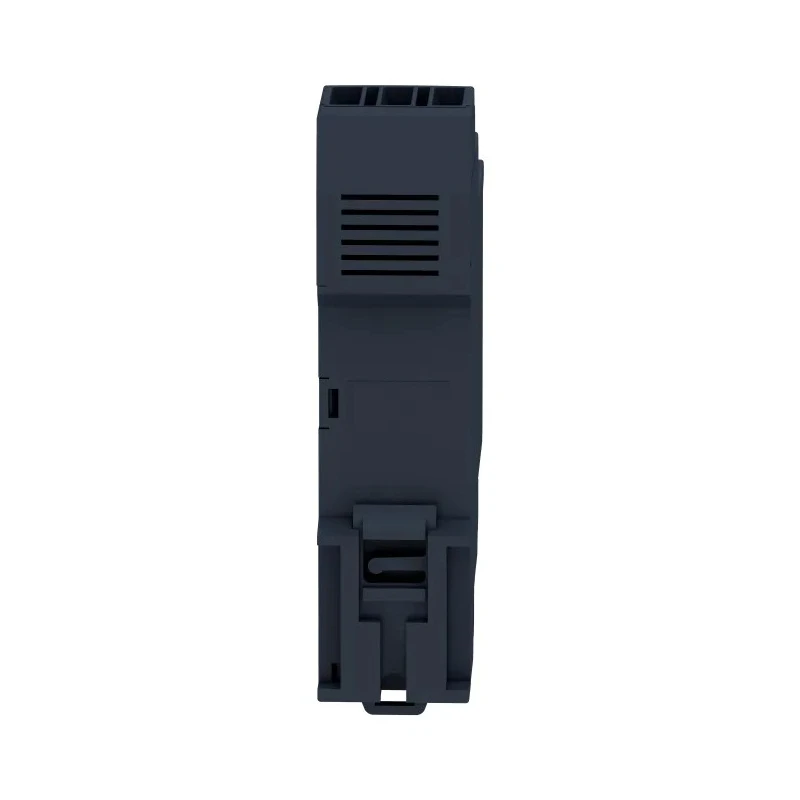

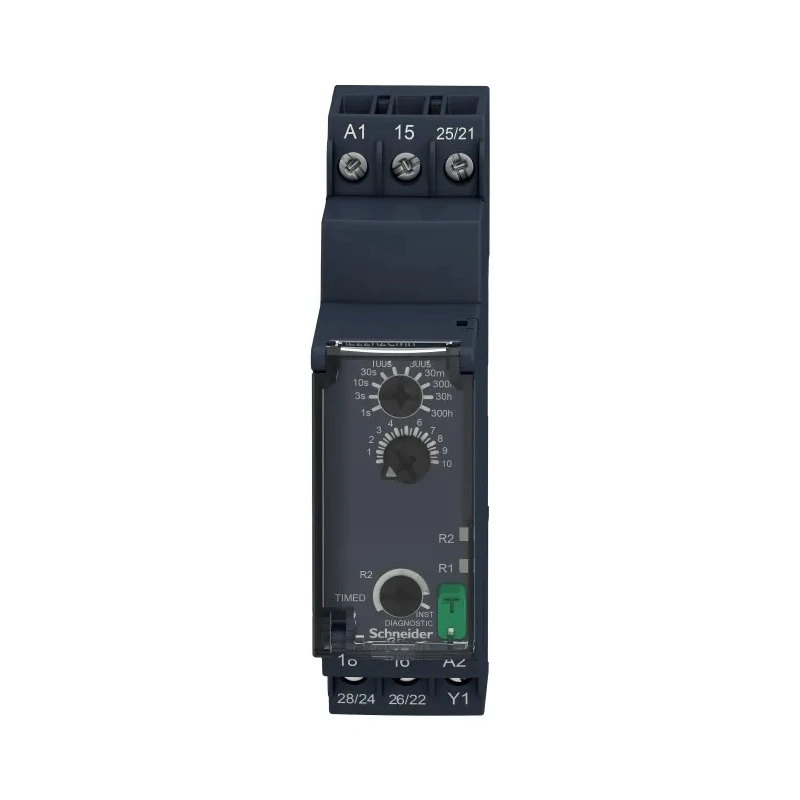

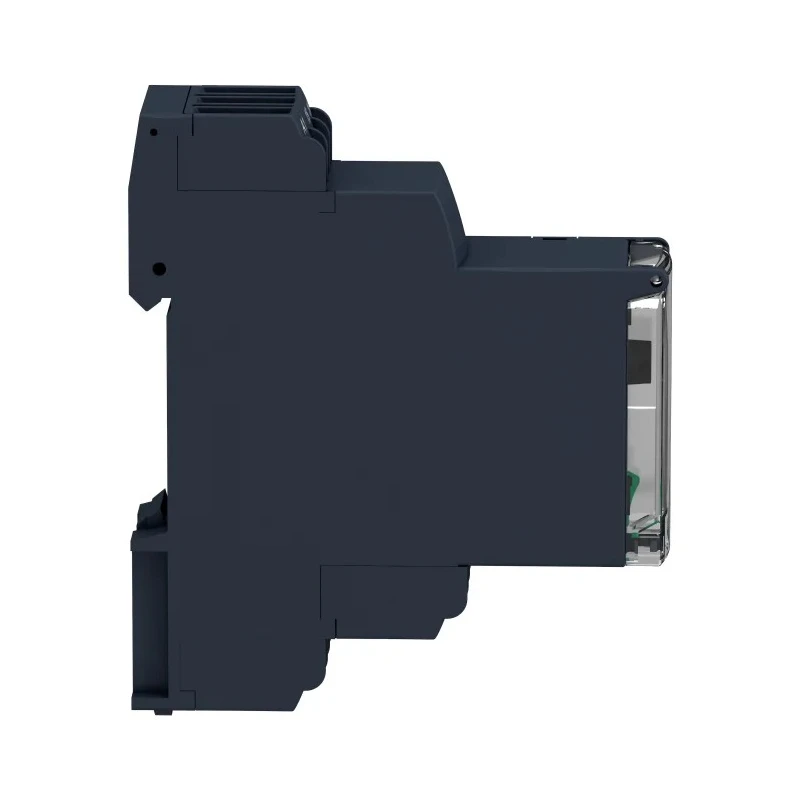

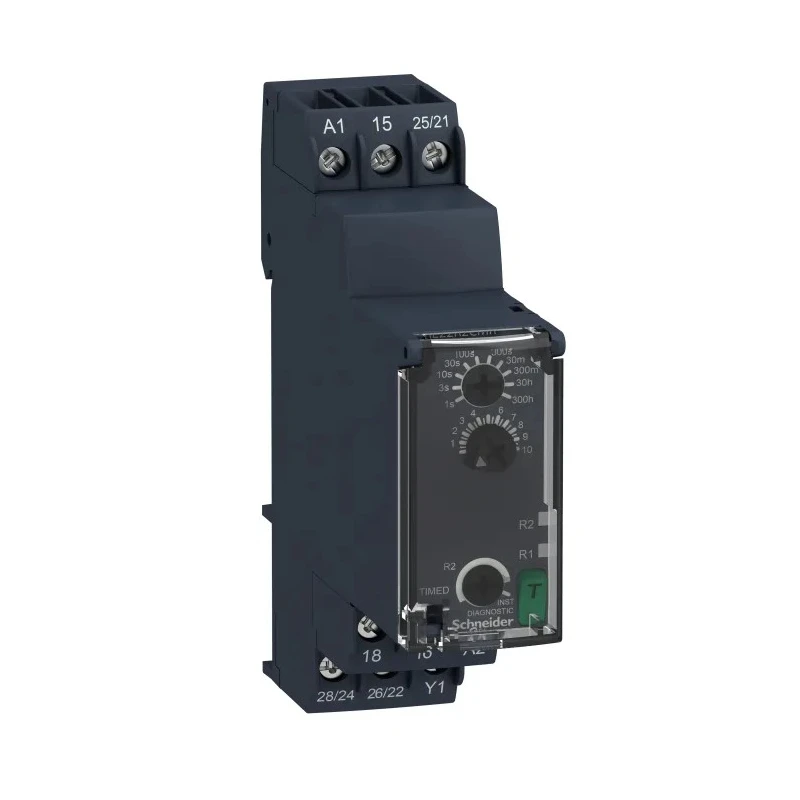

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V dc 24V ac, 240 V ac, 0.05 → 1 s RE22R2CMR

Schneider Electric RE22R2CMR Harmony Time Series DIN Rail Timer Relay delivers multifunctional timing delay capabilities ideal for industrial automation systems, supporting supply voltages of 240 V dc and 24/240 V ac with timing intervals from 0.05 to 1 second. Its compact design with DIN rail mounting fits seamlessly into control panels and sub-panels for efficient space usage.

This timer relay features 2 contacts arranged in a DPDT contact configuration, facilitating diverse switching needs. It operates in an OFF delay mode with a single timer function, offering precision and reliability within industrial environments. The device is equipped with screw-type terminals for secure and straightforward electrical connections.

The unit withstands operating temperatures from minus 20 degrees Celsius up to 60 degrees Celsius and complies with RoHS environmental standards as well as IEC 61812-1 and EN 61812-1 certifications. It is robustly designed with front IP50, housing IP40, and terminal block IP20 protection ratings, ensuring durability against dust and mechanical impacts. Shock and vibration resistance conform to IEC 60068 series standards augment its rugged industrial suitability.

Applications for this timer relay comprise lighting control, motor start sequencing, sensitive equipment management, conveyor belt timing, safety control, as well as HVAC and water system management. This makes it an essential component in manufacturing, industrial automation, commercial building automation, and water treatment sectors.

Installation is facilitated by its modular design enabling DIN rail mounting with clear wiring diagrams for ease of setup. The relay's diagnostic button, rotary knob, and external potentiometer support simple and efficient configuration adjustments.

The timer relay features 2 contacts with DPDT configuration for versatile switching. Mountable on DIN rail, ensuring quick installation and compact integration. Operation mode is OFF delay with precise adjustable timing.

The device supports a wide temperature range from -20°C to 60°C for reliable industrial use. Screw terminal connections provide secure and easy wiring. The compact unit measures 79.5 mm height, 22.9 mm length, and 90 mm width.

Compliance with RoHS and international standards ensures safety and environmental adherence. Ideal for applications like motor control, lighting circuits, conveyor sequencing, and HVAC. Durability is enhanced with protection ratings IP50 front, IP40 housing, and vibration/shock resistance per IEC standards.

Explore the full range of Schneider Electric Timer Relay solutions at EnvMart for optimized automation systems and reliable control panel integration.
