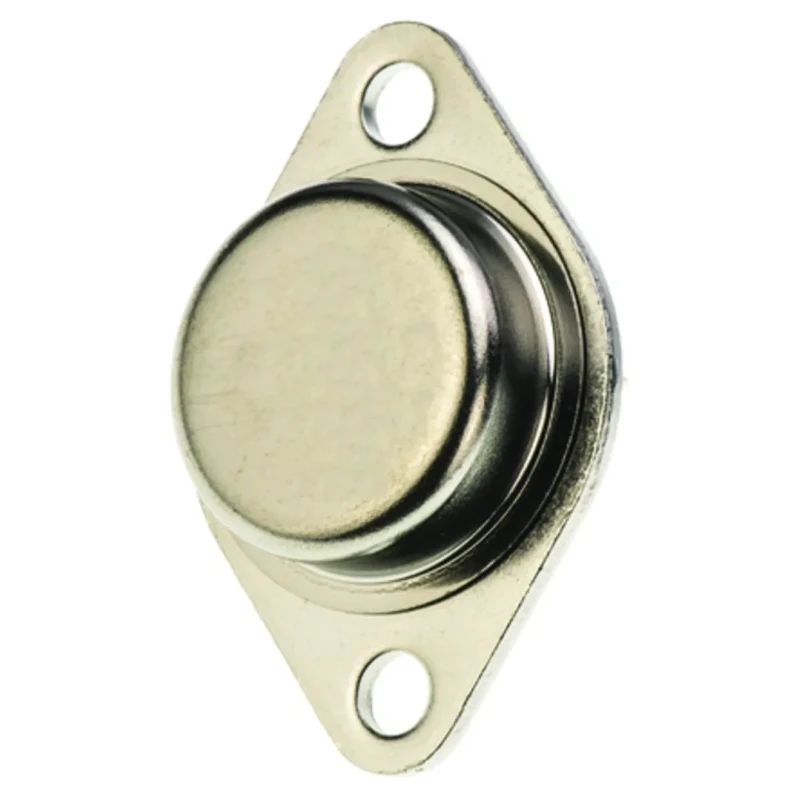

onsemi PNP Power Transistor MJ21193G, 16 A Maximum DC Collector Current, 250 V Collector Emitter Voltage, TO-204 Package

The onsemi MJ21193G is a PNP power transistor engineered for robust industrial and electronic applications requiring high current and voltage ratings. Featuring a maximum DC collector current of 16 A and maximum collector emitter voltage of 250 V, it is well-suited for power amplification and switching purposes in heavy-duty electronic circuits.

This transistor utilizes a TO-204 package which facilitates through-hole mounting, providing convenient integration into printed circuit boards. It supports a maximum power dissipation capacity of 250 W, allowing it to handle significant electrical loads without degradation.

Designed for versatility, this transistor operates reliably over a broad temperature range of -65°C to 200°C, making it ideal for demanding environments such as industrial machinery control, automotive systems (though not AEC-Q101 automotive qualified), power supply regulation, and HVAC equipment.

The transistor displays a minimum DC current gain (hFE) of 8 and can switch frequencies up to 4 MHz, which supports efficient performance in high-speed electronic devices and circuits. Its two-pin, single transistor configuration simplifies circuit design for power control applications.

Physical dimensions of 39.37 mm in length, 26.67 mm in width, and 20.7 mm in height are optimized for compact placement on device boards and systems. TO-204 package for through-hole mounting. Maximum DC collector current rating of 16 A.

Maximum collector emitter voltage rating of 250 V. Maximum power dissipation of 250 W. Operating temperature range from -65°C to 200°C. Minimum DC current gain of 8 for efficient transistor gain. Maximum transition frequency of 4 MHz.

Compact physical dimensions for versatile application.

This onsemi transistor is suitable for use in a wide range of industrial, laboratory, manufacturing, and power electronics applications. It is ideal for engineers and technicians designing power amplification, control, and switching systems requiring durable semiconductor components.
