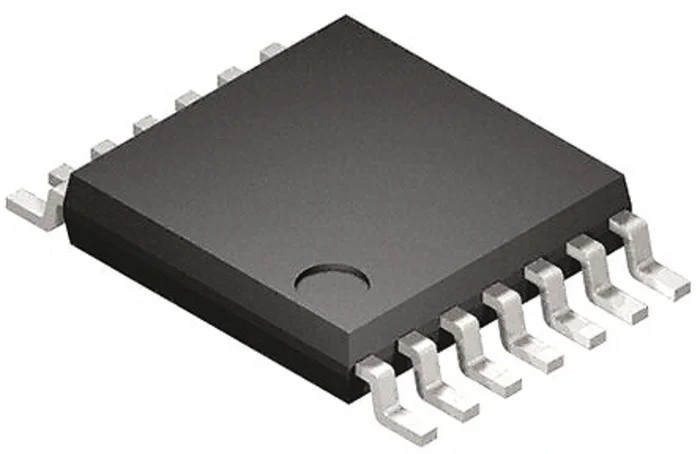

STMicroelectronics Operational Amplifier, 4-Channel, 1.3 MHz Gain Bandwidth, 14-Pin TSSOP Package, 3V to 30V Supply LM224APT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | LM224APT |
| Width | 4.48mm |
| Mount Type | Surface |
| Series | LM224 |
| Output Current | 70mA |
| Maximum Operating Temperature | 105°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 40 nA |
| Low supply current per amplifier | 375 μA |
Key Features
- This amplifier supports a supply voltage range of 3V to 30V, suitable for diverse applications.
- It features low input bias current and a low input offset voltage for precision performance.
- The device is surface mount type with a compact 5.1mm x 4.48mm x 1.05mm package size.
- The slew rate is 0.4 V/μs, with an output current capability of 70 mA for efficient signal amplification.
- Operating temperature ranges from -40°C to 105°C, ensuring reliability in harsh environments.
- The LM224APT series is RoHS compliant, adhering to environmental safety standards.
- Applications include industrial, laboratory, and electronic component systems requiring quad high-gain amplifiers.
Product Description
STMicroelectronics LM224APT is a low power quad operational amplifier featuring four independent high gain circuits with internal frequency compensation. It offers a wide gain bandwidth product of 1.3 MHz and supports a single power supply range from 3 V to 30 V, making it highly versatile for analog applications.
The amplifier’s input common-mode voltage range includes ground, allowing flexible design. It exhibits low input bias current of 200 nA and input offset voltage of 5 mV that enables precise signal amplification. The device also features a slew rate of 0.4 V/μs and can deliver up to 70 mA output current.
The LM224APT is housed in a compact 14-Pin TSSOP surface mount package with dimensions 5.1 mm length, 4.48 mm width, and 1.05 mm height, suitable for space-constrained layouts. It operates reliably in industrial temperature ranges from -40°C to 105°C and meets RoHS standards for environmental compliance.
This operational amplifier is widely used in electronic circuits demanding multiple amplifiers with low supply current and high gain, such as sensor conditioning, signal processing, instrumentation, and control systems.
This device is part of the LM124/LM224/LM324 series of low-power quad operational amplifiers. Its wide supply range and high gain make it suitable for industrial, laboratory, and manufacturing electronics. The surface mount package facilitates automated assembly and compact PCB designs.
Robust electrical characteristics provide stable, accurate analog signal amplification. The LM224APT is ideal for applications needing cost-effective, space-saving quad op amps. Explore more STMicroelectronics Operational Amplifiers and other semiconductor components in EnvMart’s electronics section for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM224APT is 1.3 MHz, making it suitable for various analog applications.
It supports a supply voltage range from 3V to 30V, allowing for versatility in different circuit designs.
This operational amplifier can deliver an output current of up to 70 mA, facilitating efficient signal amplification.
The LM224APT is housed in a TSSOP package with dimensions of 5.1 mm in length, 4.48 mm in width, and 1.05 mm in height.
It operates reliably within a temperature range of -40°C to 105°C, suitable for harsh environments.
The LM224APT features a low input bias current of 200 nA, which contributes to its precision performance.
The slew rate for this operational amplifier is 0.4 V/μs, allowing for effective signal processing.
The input offset voltage of the LM224APT is 5 mV, enabling accurate signal amplification.
Yes, the LM224APT is RoHS compliant, adhering to environmental safety standards.
It is widely used in industrial, laboratory, and manufacturing electronics, particularly in sensor conditioning and signal processing.
This operational amplifier features four independent channels, making it a quad op amp.
The LM224APT is a surface mount type, which is advantageous for compact PCB designs and automated assembly.
