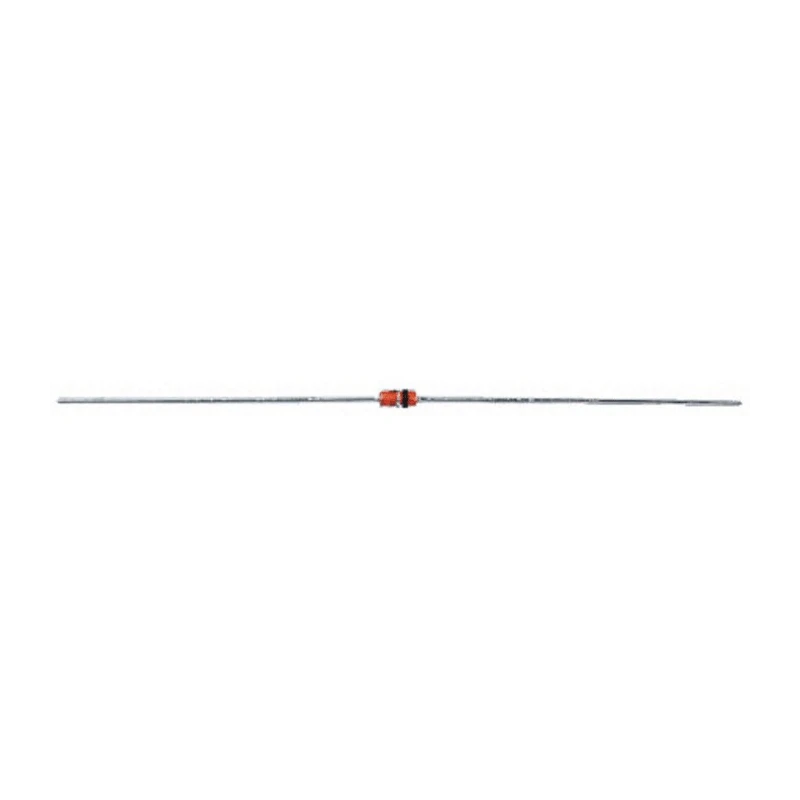

onsemi 3.3 V 500 mW General Purpose Zener Diode, Single, Through Hole, 2-Pin SOD-27 1N5226BTR

onsemi 1N5226BTR is a general purpose Zener diode designed for voltage regulation and voltage reference applications with a nominal zener voltage of 3.3 V and power dissipation rating of 500 mW. It features a single diode configuration in a through hole, 2-pin SOD-27 package that ensures easy PCB mounting and reliable operation.

This diode operates at a test current of 20 mA, with a maximum zener impedance of 28 ohms, which allows it to maintain a stable voltage under varying load conditions. It also withstands temperatures from -65°C to 200°C, making it suitable for a range of industrial and electronic equipment operating environments.

The maximum reverse leakage current is limited to 25 µA, aiding in efficient and low leakage current circuits. The diode does not adhere to automotive standards but is well suited for general electronics, power supplies, and voltage regulator circuits.

Physical dimensions include a length of 4.56 mm and height of 1.91 mm, providing a compact form factor for versatile circuit design. The device is part of the 1N52 diode series renowned for general purpose applications. Its 2-pin SOD-27 package supports through hole mounting for durability in assembly.

Suitable for use in industrial, electronic component assembly, and power management systems. Ensures robust zener voltage regulation with 5% tolerance and reliable performance. The component is ideal for circuit designers requiring stable voltage clamping and reference solutions.
