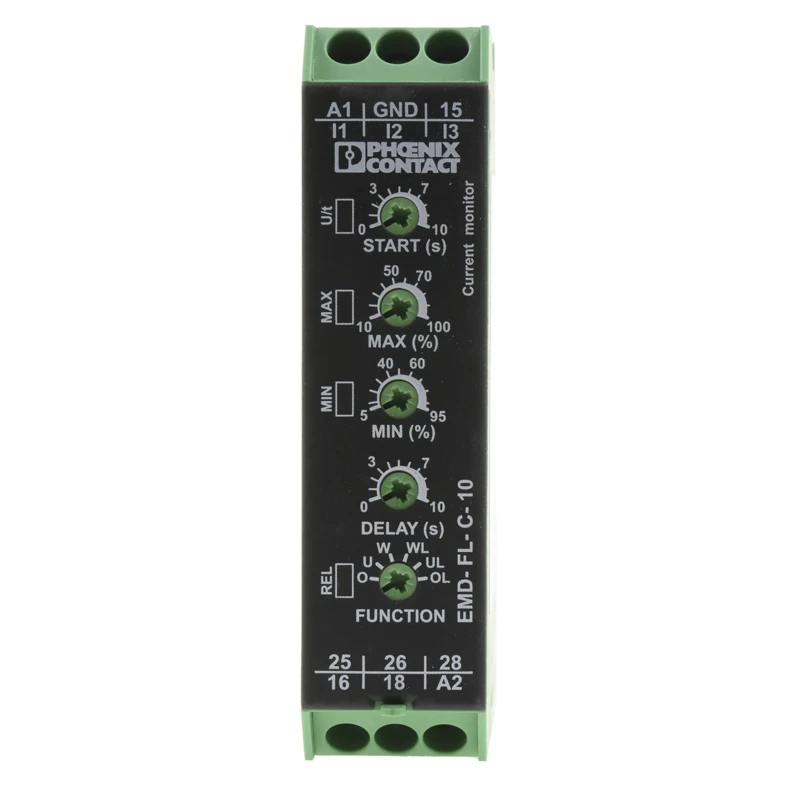

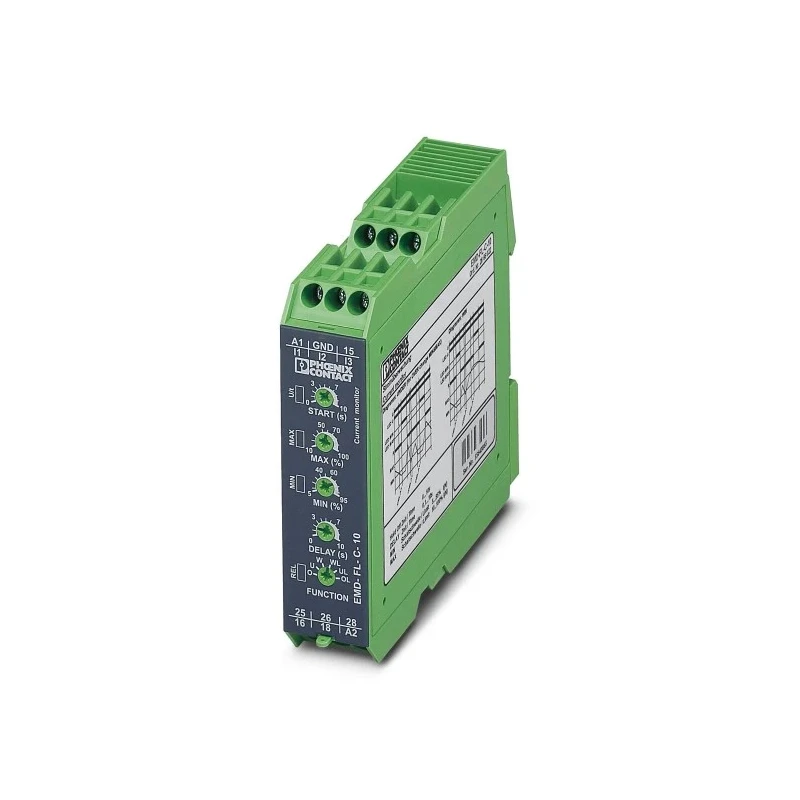

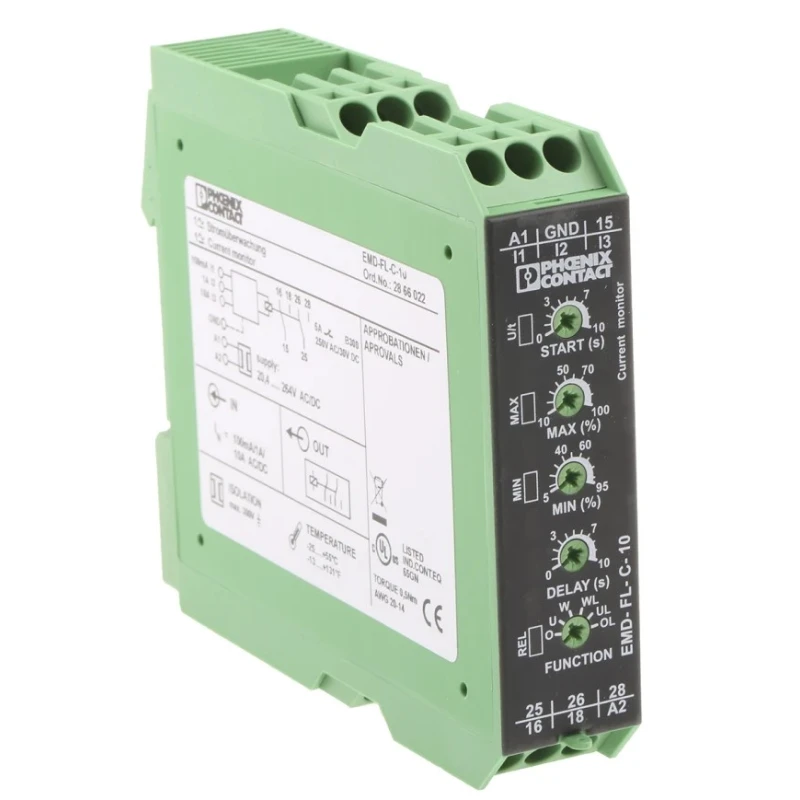

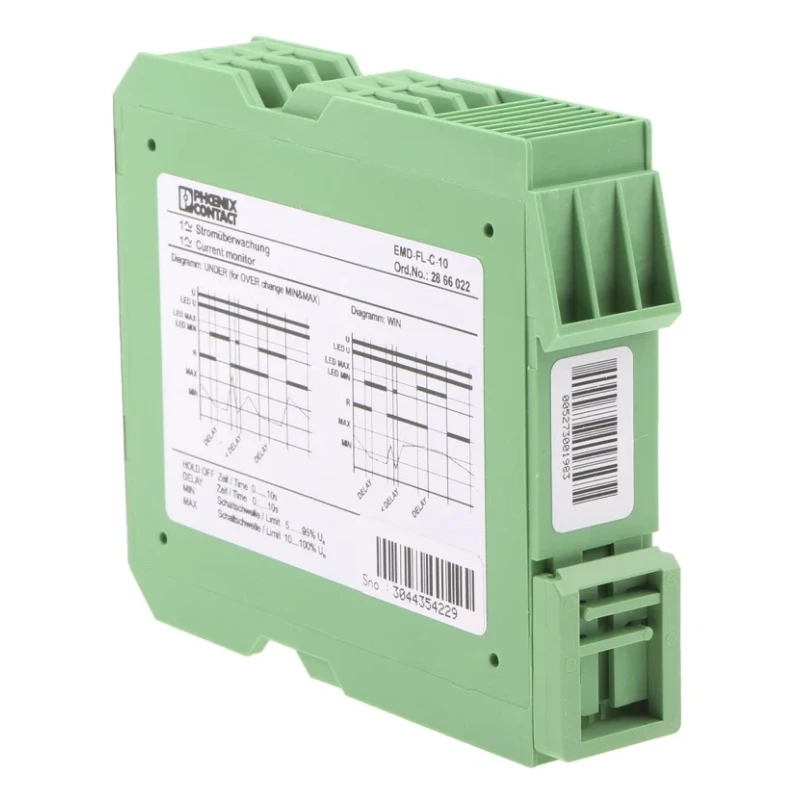

Phoenix Contact Monitoring Relay 1 Phase DPDT DIN Rail, 0A Min Current, 240 V DC 240 V AC 1.5 W Power 2866022

Phoenix Contact 2866022 Monitoring Relay is a high-performance device designed for reliable overcurrent and undercurrent detection in single-phase electrical installations. It features a dual-pole double-throw (DPDT) contact configuration and supports supply voltages of 240 V DC and 240 V AC, making it versatile for a wide range of industrial and commercial applications.

The relay's adjustable current sensing range starts at 0A, with a front potentiometer allowing easy tuning to meet system-specific requirements. It offers a selectable time delay from 0.1 to 10 seconds, providing optimal control over triggering behavior in sensitive monitoring scenarios.

Constructed for mounting on DIN rails, this compact relay measures 90 mm in height, 22.5 mm in width, and 113 mm in length. Its IP20 and IP40 rated housing provides protection against ingress of solid objects, ensuring reliable operation in demanding environments. Screw terminals guarantee secure and straightforward wiring during installation.

The unit operates efficiently with a power consumption of only 1.5 W and is rated for a long mechanical service life of up to 20 million cycles, ensuring durability and low maintenance. Its operating temperature range spans from -25°C to 55°C, supporting use in both cold and warm industrial conditions.

Equipped with LED indicators, the relay simplifies system status checks and troubleshooting, enhancing uptime and operational safety. Certified to UL 508 and CE standards, it is suitable for applications in electrical engineering, manufacturing processes, and automation systems requiring precise current monitoring.

Suitable for single-phase electrical systems with DPDT contact configuration. Operates with supply voltages of 240 V DC and 240 V AC. Low power consumption of 1.5 W ensures energy efficiency. Adjustable time delay from 0.1 to 10 seconds for precise response.

Robust DIN rail mount with screw terminal connections for secure installation. Compact dimensions of 90mm height, 22.5mm width, and 113mm length allow panel space optimization. Wide operating temperature range from -25°C to 55°C suitable for harsh environments.

High mechanical durability with 20 million operation cycles. LED indicators for easy status monitoring and troubleshooting. IP20 and IP40 rated housing protects against solid foreign objects and tools.

This monitoring relay by Phoenix Contact fulfills demanding industrial and commercial monitoring needs with reliable performance and flexible adjustment options. It supports applications in electrical engineering, industrial manufacturing, and automation for effective equipment protection and process safety.
