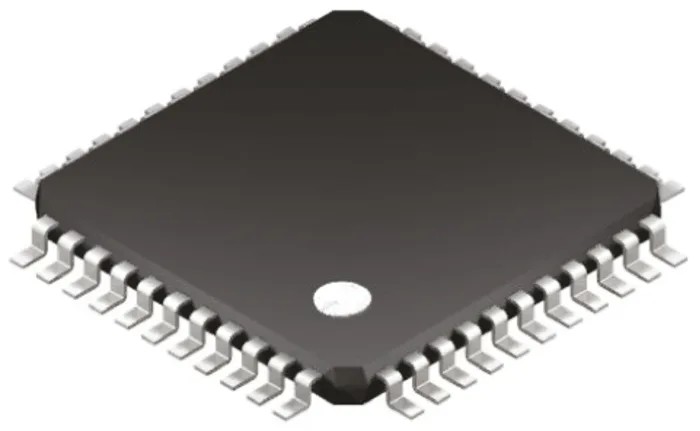

Microchip 16 bit Digital Signal Processor 60 MHz 512kB FLASH 44-Pin TQFP DSPIC33EP512GM304-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP512GM304-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 48kB |
| ADC Resolution | 19bit |
| Timer Resolution | 32bit |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 60MHz |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
| Number of PWM Channels | 12 |
Key Features
- Features a 16-bit data bus width for efficient processing.
- Includes 48kB RAM and FLASH program memory for extensive code storage.
- Operates within supply voltage range of 3V to 3.6V.
- Capable of delivering 70MIPS performance for demanding applications.
- Equipped with 2 ADCs and 12 PWM channels enhancing peripheral integration.
- Supports Harvard instruction set architecture for high-speed processing.
- Includes key microcontroller functionalities like IOCSP and ICD for debugging and programming.
- Operates within temperature range -40°C to 85°C with automotive standard AEC-Q100 compliance.
Product Description
Microchip DSPIC33EP512GM304-I/PT is a 16-bit digital signal processor designed for advanced embedded control applications. With a maximum clock frequency of 60 MHz, it delivers a robust 70 MIPS performance, suitable for industrial, automotive, and consumer electronics.
This DSP features a 16-bit data bus width and a large 512kB FLASH memory paired with 48kB RAM, enabling complex program execution and data handling. It employs a Harvard Architecture instruction set, optimizing instruction throughput and efficiency.
The device supports a 3V to 3.6V power supply, making it compatible with common embedded systems. The 44-pin TQFP package provides a compact footprint with dimensions of 10mm x 10mm and a height of 1.05mm, ideal for space-constrained designs.
Additional peripherals include 2 high-resolution ADCs with 19-bit resolution and 18 ADC channels, as well as 12 PWM channels across 1 PWM unit with 16-bit resolution, suitable for precise motor control and signal generation tasks.
Operating temperature ranges from -40°C to 85°C, meeting automotive grade AEC-Q100 standards, reinforcing its suitability for automotive and harsh industrial environments. Operates at 60 MHz max clock frequency to deliver high-speed processing.
Provides 512kB of FLASH program memory and 48kB of RAM for complex applications. Includes 2 ADCs and 12 PWM channels for versatile I/O capabilities. Packaged in a 44-pin TQFP surface mount package for compact integration.
Complies with automotive standard AEC-Q100 for reliability in harsh environments. Features Power-On Reset, Watchdog Timer, and In-Circuit Debugging for robust control and development.
This Microchip DSPIC33EP512GM304-I/PT device is ideal for industrial automation, automotive control systems, signal processing, and embedded system projects. It supports in-circuit serial programming and debugging, facilitating efficient development cycles.
Explore the comprehensive product and technical support available to optimize your design and development workflow. Enhancing your automation and embedded control capabilities with Microchip's reliable Digital Signal Processors is a strategic choice.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the DSPIC33EP512GM304-I/PT is 60 MHz.
It features a program memory size of 512kB FLASH, allowing for extensive code storage.
This model includes 2 ADCs and 12 PWM channels, enhancing its peripheral integration capabilities.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
It operates within a supply voltage range of 3V to 3.6V.
The TQFP package dimensions are 10mm x 10mm with a height of 1.05mm.
The ADCs in this unit have a resolution of 19 bits.
It employs a Harvard instruction set architecture, which optimizes instruction throughput.
This unit includes 1 timer with a resolution of 32 bits.
It complies with automotive standard AEC-Q100, ensuring reliability in automotive applications.
The DSPIC33EP512GM304-I/PT is capable of delivering 70 MIPS performance.
This model uses a surface mount type, specifically the TQFP package.
