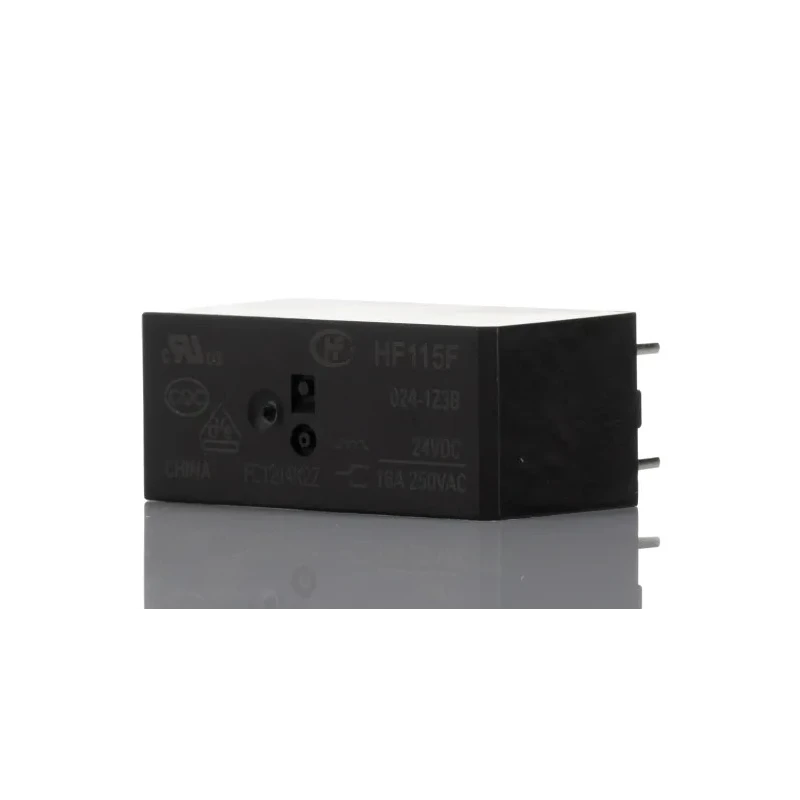

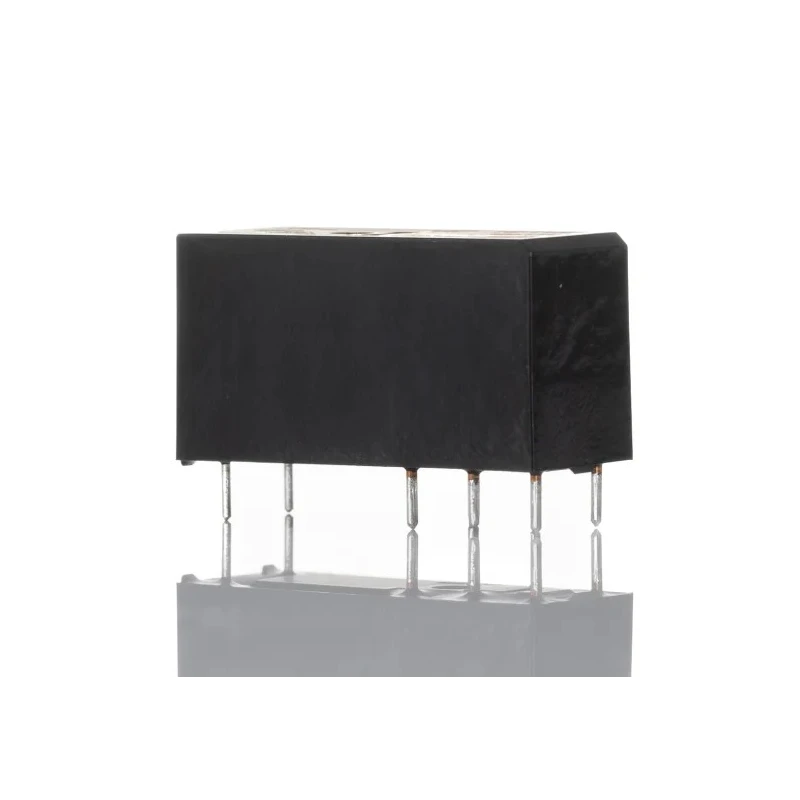

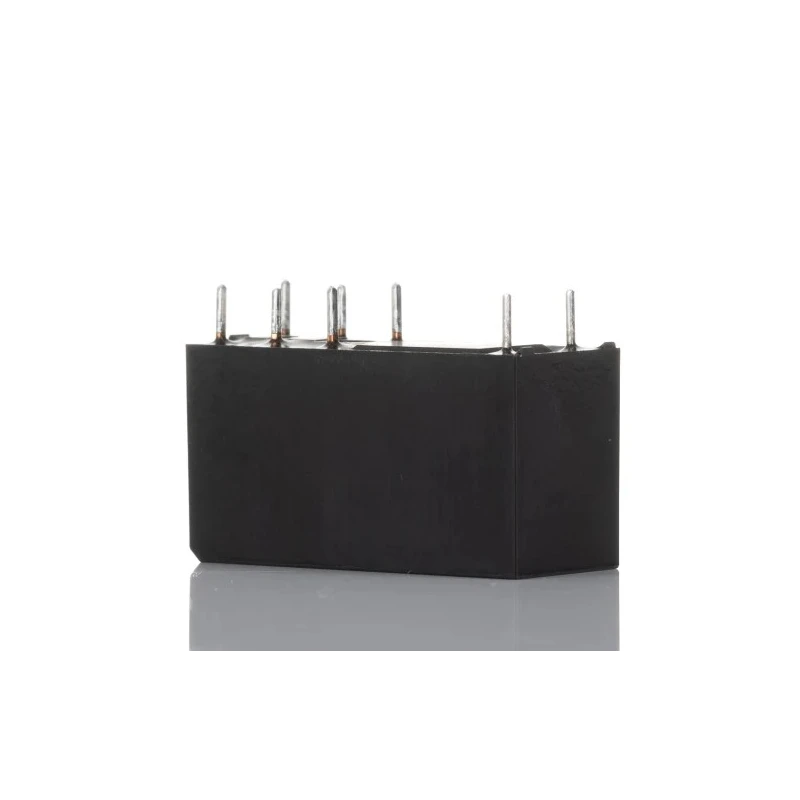

RS PRO PCB Power Relay 24V dc Coil 16A Switching Current SPDT 800-4445

RS PRO 800-4445 PCB Power Relay is a reliable high-inrush, non-latching Single Pole Double Throw (SPDT) relay designed for PCB mounting in industrial and commercial electrical applications. Operating with a 24V dc coil and low coil power consumption of 400mW, this relay efficiently switches currents up to 16A at maximum voltages of 300V dc and 440V ac.

The silver alloy contacts and low 100mΩ contact resistance deliver optimal electrical performance and durability under diverse load conditions. Its compact footprint with dimensions 29×15.7×15.7 mm makes it ideal for densely populated circuit boards where space is limited.

This relay withstands high inrush currents with a TV-5 rating of 80A at 125V ac, preventing damage during surge events. Suitable for use in automation systems, signal conditioning, and power control equipment, it ensures reliable switching over a wide temperature range from -40°C to 85°C with robust vibration resistance from 10Hz up to 150Hz.

The plastic sealed and flux-proofed enclosure offers excellent protection against moisture and environmental contaminants, enhancing long-term reliability in industrial and laboratory settings. It meets rigorous quality and safety standards like IEC 60335-1, UL, CUL, CQC, VDE, and is RoHS compliant, making it suitable for global applications requiring certification compliance.

RS PRO products are known for their professional quality, rigorously tested to meet stringent performance standards. This relay serves well in various use cases including home automation, manufacturing control panels, HVAC systems, and other electrical equipment requiring reliable power relay switching.

This relay features a Single Pole Double Throw (SPDT) contact configuration for versatile switching. It has a coil voltage rating of 24V dc and a coil power consumption of 400mW. Capable of handling a switching current of up to 16A with a maximum switching voltage of 300V dc and 440V ac.

Constructed with silver alloy contacts delivering low contact resistance of 100mΩ for reliable performance. The miniature design with dimensions 29mm length, 15.7mm width, and 15.7mm height suits space-critical PCB applications.

Offers high inrush capability of TV-5 80A at 125V ac to withstand surge currents. Rated for operating temperatures ranging from -40°C to 85°C with vibration resistance from 10Hz to 150Hz. The sealed plastic housing provides excellent moisture resistance for long-term reliability.

Complies with industry standards including IEC 60335-1, UL, CUL, CQC, VDE, and RoHS. Manufactured in China, this relay ensures consistent quality under the RS PRO brand. Explore the Electronics & Electricals category at EnvMart for additional Power Relays and related components to enhance your electrical systems and automation projects.
