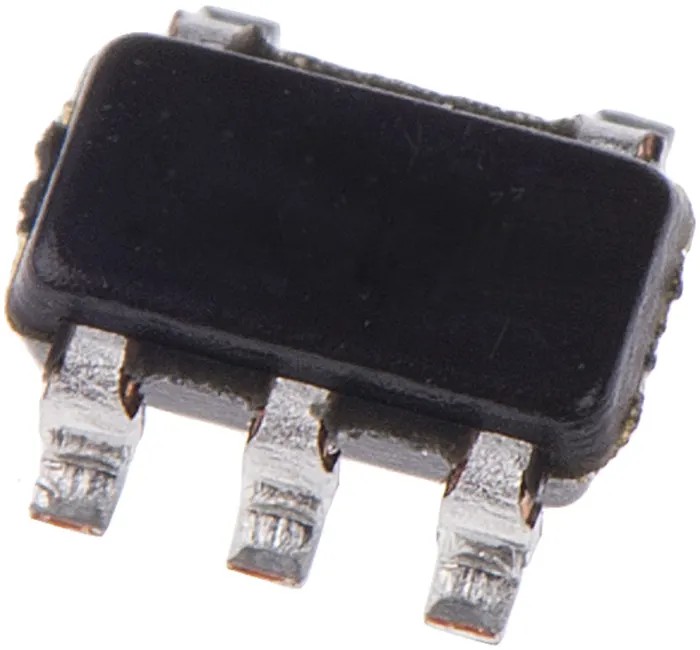

Texas Instruments Buffer & Line Driver Open Drain Non-Inverting 1 Channel TTL CMOS 5-Pin SOT-23 SN74LVC1G07DBVR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 3.05mm |
| Model | SN74LVC1G07DBVR |
| Width | 1.75mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | Open Drain |
| Series | SN74LVC1G07 |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 1 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74LVC |
| Logic Function | Buffer, Driver |
| Minimum Supply Voltage | 1.65V |
| Maximum Propagation Delay Time @ CL | 4.2ns |
| Supply Current | 10μA |
| Maximum Low Level Output Current | 32mA |
Key Features
- Operates within a low voltage range of 1.65 V to 5.5 V for flexible application.
- Features a maximum low-level output current of 32 mA for effective driving capability.
- Provides a fast propagation delay time of 4.2 ns at capacitive load.
- Designed for surface mount with compact 5-pin SOT-23 package dimensions.
- Suitable for automotive applications meeting AEC-Q100 standard.
- Wide operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
- Low supply current of 10 μA supports power-efficient circuit design.
- Input is compatible with LVTTL/TTL and single gate packaging simplifies board design.
Product Description
Texas Instruments SN74LVC1G07DBVR is a buffer and line driver integrated circuit designed to provide signal buffering with open drain output and non-inverting logic. This single-channel IC operates using low voltage CMOS technology within a broad supply range of 1.65 V to 5.5 V, making it highly adaptable for various industrial, automotive, and electronic applications.
The device is housed in a compact 5-pin SOT-23 surface-mount package with dimensions of approximately 3.05 mm length, 1.75 mm width, and 1.45 mm height. It supports TTL and CMOS input logic types and delivers an open drain output suitable for multiple driving applications.
The SN74LVC1G07DBVR features a maximum low-level output current capability of 32 mA with a fast propagation delay time of 4.2 ns at a given capacitive load, supporting efficient signal transmission and synchronization. Its supply current is exceptionally low at 10 μA, optimizing power consumption in integrated circuits.
Designed in compliance with automotive industry standard AEC-Q100, the device performs reliably over a wide temperature range from -40°C to 125°C. This makes it suitable for automotive electronics as well as other demanding commercial and industrial environments.
This buffer & line driver IC is well-suited for high-performance electronics, automotive systems, industrial equipment, and precision instrumentation. It ensures signal integrity in environments requiring open drain outputs, non-inverting logic, and low supply currents. The small footprint and surface-mount package further facilitate efficient PCB layouts and automated assembly.
Operates from 1.65 V to 5.5 V supply voltage range. Single channel buffer and driver functionality. Open drain non-inverting output supports versatile interfacing. Low operating current of 10 μA ensures power efficiency.
Meets automotive-grade standard AEC-Q100 for reliability. Explore more Texas Instruments semiconductor products and Line Interface ICs in EnvMart’s dedicated category for high-quality, reliable buffer and driver IC solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74LVC1G07DBVR operates within a voltage range of 1.65 V to 5.5 V.
It has a maximum low-level output current capability of 32 mA.
The device features a fast propagation delay time of 4.2 ns at a given capacitive load.
This model is housed in a compact 5-pin SOT-23 surface-mount package.
It is compatible with LVTTL and TTL input logic types.
The supply current is exceptionally low at 10 μA, optimizing power consumption.
It operates reliably over a wide temperature range from -40°C to 125°C.
It is designed in compliance with the automotive industry standard AEC-Q100.
The output type is open drain, which supports versatile interfacing applications.
The dimensions are approximately 3.05 mm in length, 1.75 mm in width, and 1.45 mm in height.
This model features a single channel for buffer and driver functionality.
