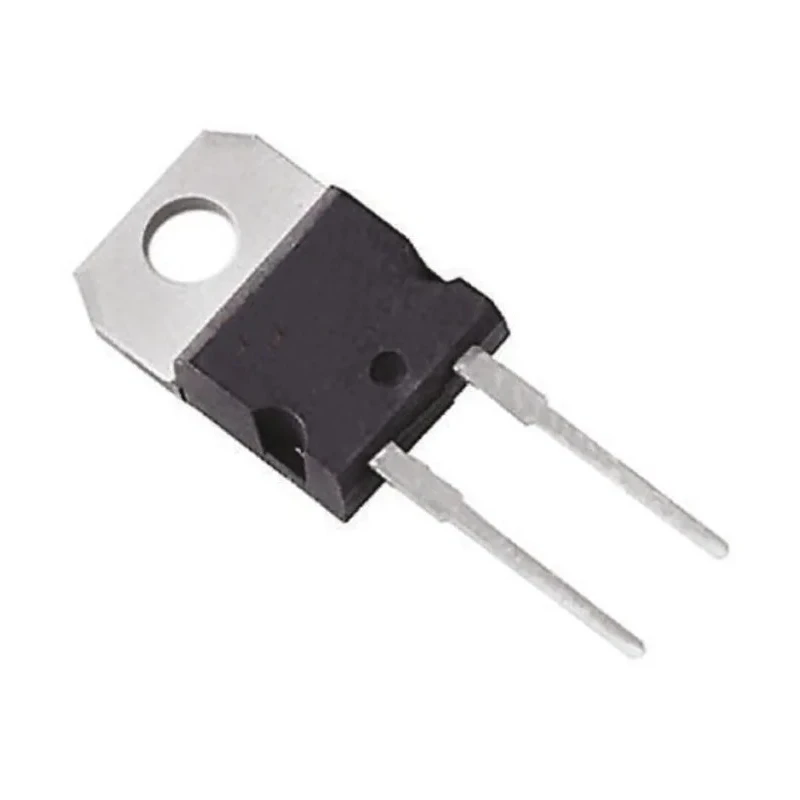

STMicroelectronics 1 kV 8 A Fast Recovery Single Diode 2-Pin Surface Mount TO-220AC STTH810D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.35mm |
| Length | 10.4mm |
| Model | STTH810D |
| Width | 4.6mm |
| Mount Type | Surface |
| Series | STTH810 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 2V |
| Peak Reverse Recovery Time trr | 85ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
Key Features
- This diode has a maximum forward voltage drop of 2 V.
- It features a very fast reverse recovery time of 85 ns for high efficiency.
- The device supports a peak non-repetitive forward surge current of 60 A.
- It operates reliably from -40°C to 175°C ambient temperature.
- The diode configuration is single with 2 pins suitable for surface mount applications.
- The compact TO-220AC package measures 10.4 mm length and 4.6 mm width.
- This component complies with RoHS standards for environmental safety.
- Peak reverse current is only 20 μA, ensuring minimal leakage.
Product Description
STMicroelectronics STTH810D is a fast recovery rectifier diode designed for high-efficiency power electronics and switching applications. It provides a peak repetitive reverse voltage of 1 kV and a maximum continuous forward current rating of 8 A.
This diode's fast reverse recovery time of 85 ns minimizes switching losses, making it ideal for industrial power supplies, motor drives, and power conversion circuits. The single diode configuration in a rugged TO-220AC surface mount package offers easy integration with efficient thermal dissipation.
The device supports surge currents up to 60 A, allowing transient voltage and current handling during switching events. Its low forward voltage drop of 2 V enhances energy efficiency, while the low 20 μA peak reverse current ensures minimal leakage and power dissipation during operation.
Rated for operation in a wide temperature range from -40°C to 175°C, the STTH810D is reliable in demanding industrial environments including manufacturing, power management, renewable energy systems, and automotive electronics (non-automotive certified).
The TO-220AC package dimensions are compact with a length of 10.4 mm, width of 4.6 mm, height of 9.35 mm, and pin count of two, allowing straightforward PCB mounting and heat sinking.
Fast recovery diode to reduce switching losses. 1 kV repetitive reverse voltage rating. 8 A continuous forward current capability. Low leakage peak reverse current of 20 μA. Wide operating temperature from -40°C up to 175°C.
Compact TO-220AC surface mount package. RoHS compliant for environmental safety.
This diode is suitable for industrial, power supply, manufacturing, and laboratory applications requiring reliable high-voltage switching components. Environmentally compliant with RoHS, it supports modern electronics manufacturing requirements.
Explore a broad range of Semiconductor Diodes and rectifiers from STMicroelectronics at EnvMart for your electronics design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics STTH810D has a peak repetitive reverse voltage rating of 1 kV.
This model supports a maximum continuous forward current rating of 8 A.
The diode features a maximum forward voltage drop of 2 V.
The peak reverse recovery time for this diode is 85 ns, which helps minimize switching losses.
It can handle a peak non-repetitive forward surge current of 60 A.
The TO-220AC package measures 10.4 mm in length, 4.6 mm in width, and 9.35 mm in height.
It operates reliably within a temperature range of -40°C to 175°C.
The peak reverse current is only 20 μA, ensuring minimal leakage during operation.
Yes, the STTH810D complies with RoHS standards for environmental safety.
This model features a single diode configuration suitable for surface mount applications.
It is suitable for industrial power supplies, motor drives, and power conversion circuits.
The diode has a pin count of 2, making it suitable for surface mount integration.
