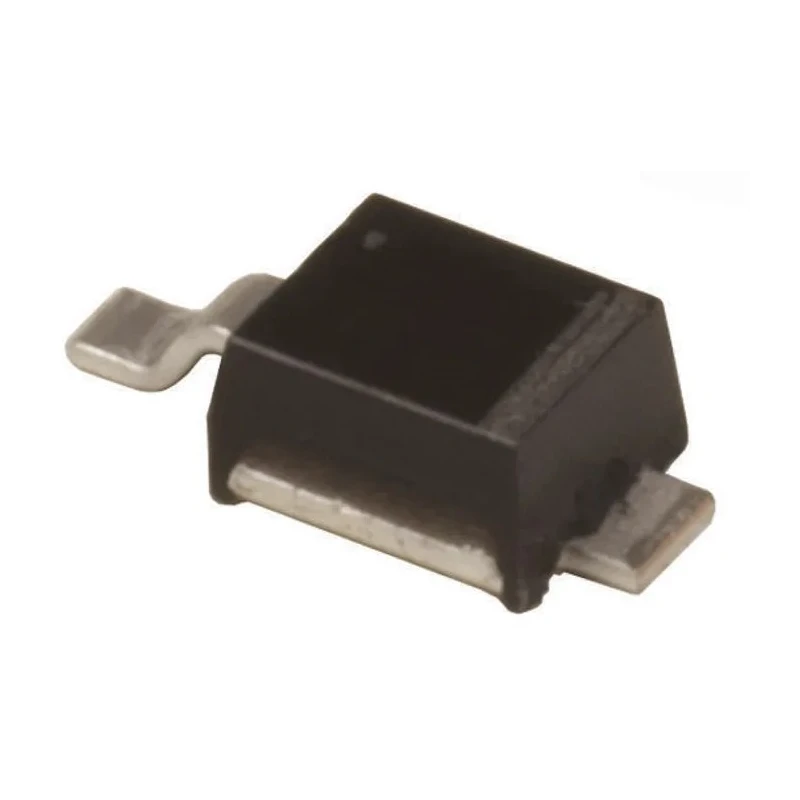

onsemi Schottky Diode 20 V 1 A 2-Pin Surface Mount POWERMITE MBRM120ET3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.18mm |
| Length | 2.05mm |
| Model | MBRM120ET3G |
| Width | 1.15mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | POWERMITE |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 530mV |
Key Features
- Designed for surface mount installation with POWERMITE package type.
- Maximum continuous forward current rated at 1 ampere.
- Peak reverse repetitive voltage of 20 volts.
- Peak non-repetitive forward surge current reaches 50 amperes.
- Maximum forward voltage drop is 530 millivolts ensuring efficient operation.
- Operating temperature range from -65°C to 150°C suitable for harsh environments.
- Compact dimensions with length 2.05 mm, width 1.15 mm, height 2.18 mm.
- AEC-Q101 automotive qualified ensuring reliability in automotive applications.
Product Description
onsemi MBRM120ET3G Schottky Diode is a high-performance 2-pin surface mount diode designed using Schottky barrier technology. It features a POWERMITE package that allows for compact and lightweight design ideal for automated PCB assembly.
This diode operates at a continuous forward current of 1 ampere with a peak reverse repetitive voltage of 20 volts, making it suitable for low voltage, high frequency rectification applications. It delivers a low forward voltage drop of 530 millivolts to improve efficiency and reduce power loss in power supply circuits.
Its robust thermal capability enables operation within a wide temperature range from -65°C up to 150°C, accommodating demanding industrial and automotive environments. The device supports a peak non-repetitive forward surge current of 50 amperes, providing reliability under transient surge conditions.
The small form factor with overall dimensions of 2.05 mm length, 1.15 mm width, and 2.18 mm height facilitates use where space is restricted. The diode is epoxy molded and Pb-free compliant, ensuring environmental friendliness and durability.
This component is AEC-Q101 qualified, confirming its suitability for automotive electronics requiring high reliability and stress protection. It is applicable in industrial, automotive, telecommunications, and power management systems where efficient, compact diode solutions are needed.
Designed for surface mount installation with POWERMITE package type. Maximum continuous forward current rated at 1 ampere. Peak reverse repetitive voltage of 20 volts. Peak non-repetitive forward surge current reaches 50 amperes.
Maximum forward voltage drop is 530 millivolts ensuring efficient operation. Operating temperature range from -65°C to 150°C suitable for harsh environments. Compact dimensions with length 2.05 mm, width 1.15 mm, height 2.18 mm.
AEC-Q101 automotive qualified ensuring reliability in automotive applications. Explore more semiconductor components and Schottky diodes in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is rated at 1 ampere.
The peak reverse repetitive voltage for this model is 20 volts.
This diode can handle a peak non-repetitive forward surge current of 50 amperes.
The dimensions of the POWERMITE package are 2.05 mm in length, 1.15 mm in width, and 2.18 mm in height.
The operating temperature range of this diode is from -65°C to 150°C.
The maximum forward voltage drop for the MBRM120ET3G is 530 millivolts.
Yes, this diode is AEC-Q101 automotive qualified, ensuring reliability in automotive applications.
This diode is designed for surface mount installation.
The peak reverse current for this diode is 1.6 milliamperes.
This diode is applicable in industrial, automotive, telecommunications, and power management systems.
The MBRM120ET3G has a single diode configuration.
The country of origin for this diode is India.
