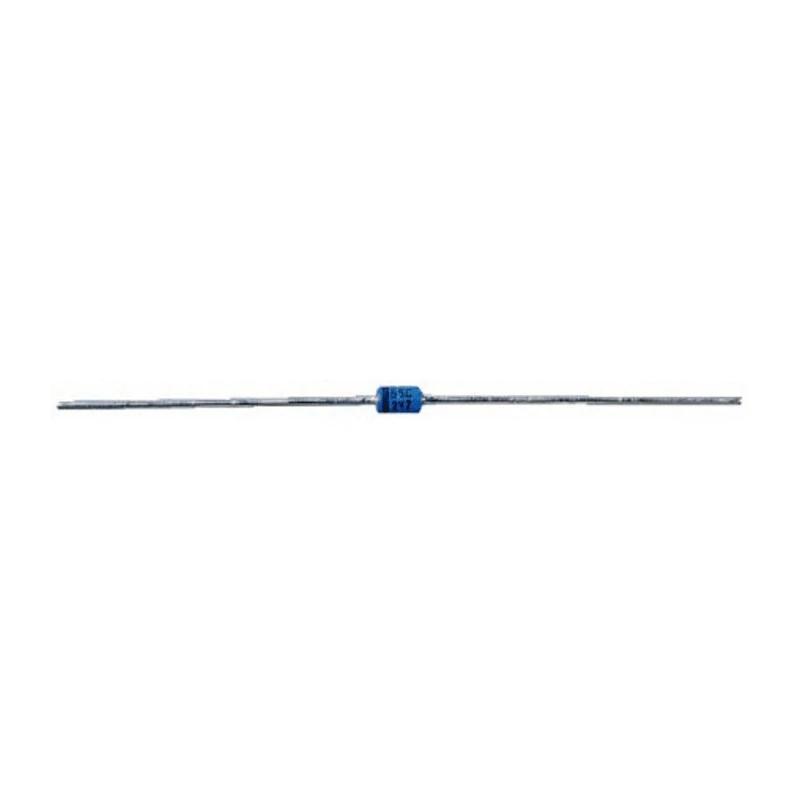

Taiwan Semiconductor 1N4756A 47 V Zener Diode Single 1 W 5% Through Hole 2-Pin DO-41
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4756A |
| Mount Type | Through Hole |
| Series | 1N4756A |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 5.5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |
Key Features
- This diode features a single diode configuration for voltage regulation applications.
- It is designed with a 2-pin through hole mount suitable for easy PCB insertion.
- The diode offers a nominal Zener voltage of 47 volts with ±5% tolerance.
- Maximum power dissipation is rated at 1 watt to handle moderate energy loads.
- The package is compact, with a length of 5.2 mm and height of 2.7 mm.
- Operating temperature ranges from -65°C to 200°C for versatile industrial use.
- It has a maximum Zener impedance of 80 Ohms and a maximum reverse leakage current of 5 microamperes.
- Test current for Zener voltage is 5.5 mA ensuring consistent voltage regulation.
Product Description
Taiwan Semiconductor 1N4756A Zener Diode is a precision voltage regulator component designed for industrial and electronic semiconductor applications. It is a single diode device that provides a stable nominal Zener voltage of 47 volts with a tolerance of 5%. The diode is housed in a robust DO-41 through-hole package with two pins, enabling easy installation and reliable electrical connections on printed circuit boards.
The diode's maximum power dissipation rating of 1 watt makes it suitable for moderate power regulation tasks in power supplies and electronic gadgets. The compact physical dimensions, including a length of 5.2 mm and a height of 2.7 mm, allow integration in dense circuit layouts.
Operating reliably over a temperature range from -65°C to 200°C, the 1N4756A diode is well-suited for harsh environments and industrial applications such as power management, signal conditioning, and circuit protection. It features a maximum Zener impedance of 80 ohms and a low reverse leakage current of 5 microamperes, ensuring stable performance over time.
The diode is tested at a Zener test current of 5.5 mA to meet its voltage regulation standards. Its single-element chip design ensures consistent electrical behavior required in precision electronic components.
This product is a single 47V Zener diode for voltage regulation. 1 W power dissipation rating enables moderate load handling. Compact DO-41 through-hole package with two pins. Wide operating temperature from -65°C to +200°C.
Maximum reverse leakage current is 5μA for stable operation. Test current is 5.5 mA for accuracy in voltage regulation. Voltage tolerance of ±5% ensures reliable circuit performance. Height of 2.7 mm and length of 5.2 mm for compact circuit designs.
Utilized in electronics, power management, and industrial circuits. Designed by Taiwan Semiconductor with model 1N4756A.
This 1N4756A diode is an essential component for electronics engineers and industries requiring durable and precise semiconductor diodes. Explore more related semiconductor products on EnvMart.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 47 volts with a tolerance of ±5%.
The maximum power dissipation rating of this model is 1 watt, suitable for moderate energy loads.
This diode has a length of 5.2 mm and a height of 2.7 mm, making it compact for circuit designs.
The operating temperature range for this diode is from -65°C to 200°C, allowing it to function in harsh environments.
This diode features a 2-pin configuration for easy installation on printed circuit boards.
The maximum reverse leakage current is 5 microamperes, ensuring stable operation over time.
It utilizes a through-hole mounting type, which is suitable for PCB insertion.
The maximum Zener impedance for this model is 80 ohms, contributing to its performance in voltage regulation.
The test current for achieving the Zener voltage is 5.5 mA, ensuring accurate voltage regulation.
The diode configuration is single, designed specifically for voltage regulation applications.
This diode is manufactured in India, as indicated by its country of origin.
This Zener diode is suitable for applications in power management, signal conditioning, and circuit protection.
