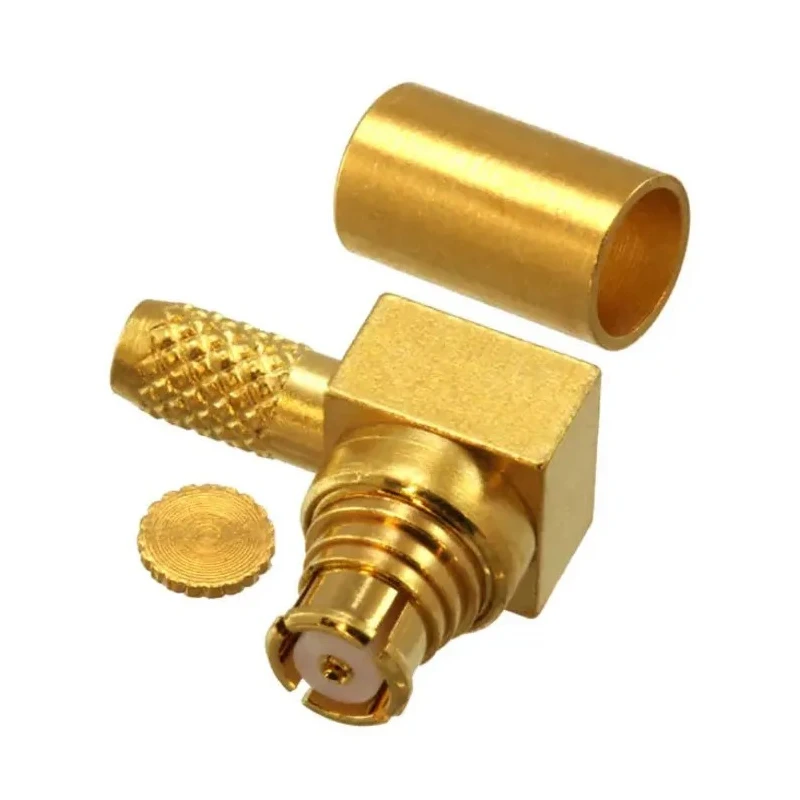

Molex 73415 Series Subminiature Right Angle PCB Female SMP Coaxial Connector 50 Ω 40 GHz 734155030
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | Molex |
| Orientation | Right Angle |
| Mount Type | PCB |
| Operating Frequency | 40GHz |
| Series | 73415 |
| Termination Type | Cable |
| Cable Type | RG-316, RG188, RG174 |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | EU RoHS China RoHS |
| Contact Plating | Gold Plated |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMP |
| Body Plating | Gold |
Key Features
- Gold plating enhances conductivity and corrosion resistance.
- Right angle orientation improves PCB layout by reducing cable strain.
- Compatible with RG-316, RG188, RG174 cable types for versatile use.
- Operates reliably at frequencies up to 40 GHz.
- Offers secure threaded mating to withstand vibration.
- Designed to support a maximum voltage of 335 Vrms at sea level.
- Compact subminiature size ideal for space-constrained environments.
- Suitable for RF communication, telecommunications, and test equipment.
Product Description
Molex 734155030 is a subminiature right angle PCB female SMP coaxial connector from the 73415 series engineered for precise and reliable high-frequency performance. It offers a 50 Ω impedance with a maximum operating frequency of 40 GHz, making it ideal for demanding electrical and mechanical industrial applications.
This connector features a gold-plated body and contact plating to ensure excellent conductivity and prevent corrosion over prolonged use. The right angle orientation aids in simplified PCB layout and reduces cable strain in compact or confined spaces. It supports cable types including RG-316, RG188, and RG174, providing versatile compatibility in RF communication, telecommunications, and measurement instrumentation.
The 734155030 model supports a threaded mating providing secure connection retention under vibration or movement. Rated for a maximum voltage of 335 Vrms at sea level, it satisfies stringent performance and safety requirements in laboratory, industrial, construction, and telecommunications environments.
The connector is compliant with EU RoHS and China RoHS directives, supporting sustainable manufacturing practices. Gold plating enhances conductivity and corrosion resistance. Right angle orientation reduces mechanical stress and facilitates compact PCB designs.
Operates up to 40 GHz frequency. Compatible with RG-316, RG188, and RG174 cable types. 50 Ω impedance for RF applications. Threaded mating ensures vibration resistance. Maximum voltage rating of 335 Vrms at sea level. Subminiature size optimized for tight spaces.
Suitable for telecommunications and test equipment applications. Meets EU RoHS and China RoHS environmental standards.
This Molex coaxial connector is an essential component for high-performance RF systems and compact PCB designs. Its robust construction and compliance certifications make it suitable for industrial, laboratory, and telecommunications use.
Explore more Coaxial Connectors and high-quality Molex products in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 734155030 operates reliably at frequencies up to 40 GHz.
This model is compatible with RG-316, RG188, and RG174 cable types, providing versatile use in various applications.
It has a 50 Ω impedance, making it suitable for RF applications.
The maximum voltage rating for the 734155030 is 335 Vrms at sea level.
This connector is designed for PCB mounting, making it suitable for various electronic applications.
The connector features a right angle orientation, which helps in reducing cable strain and facilitates compact PCB layouts.
The connector is compliant with EU RoHS and China RoHS directives, supporting sustainable manufacturing practices.
It features gold plating on both the body and contacts, enhancing conductivity and corrosion resistance.
This model is suitable for RF communication, telecommunications, and measurement instrumentation applications.
The Molex 734155030 is classified as a subminiature size, ideal for space-constrained environments.
It offers a threaded mating design, which provides secure connection retention under vibration or movement.
This connector is part of the 73415 series, designed for high-frequency performance in demanding applications.
