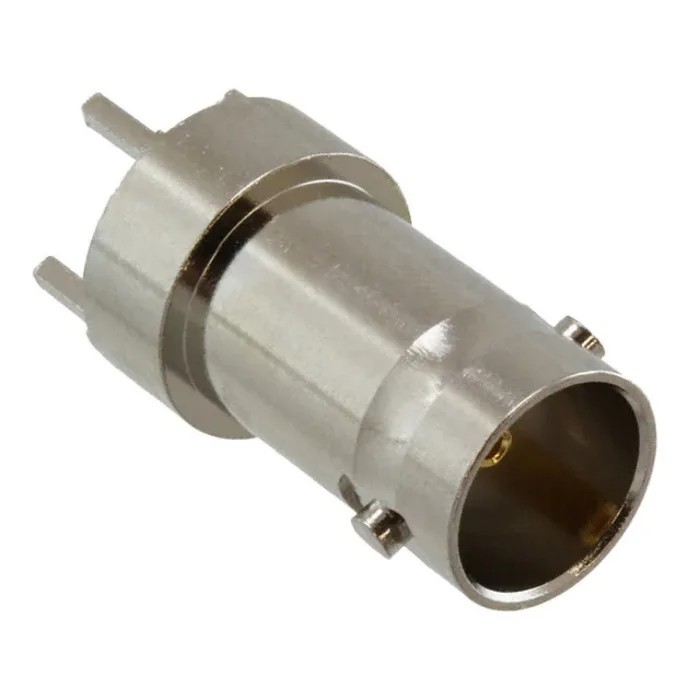

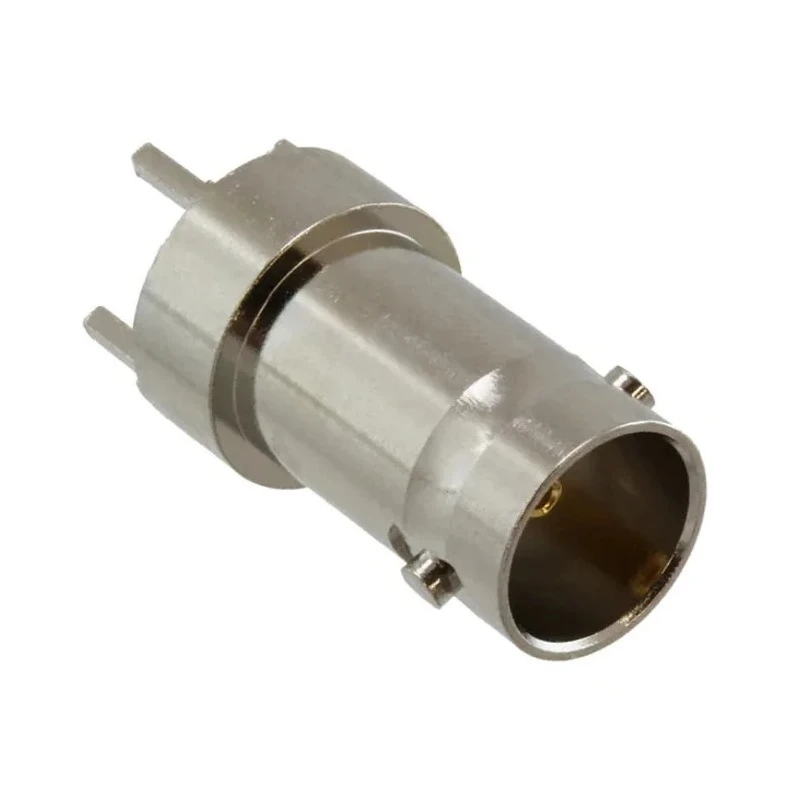

Molex 73171 Series Coaxial Connector Through Hole Female BNC, 75 Ω, 4GHz Frequency, Straight Orientation 731711900
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Miniature |
| Brand | Molex |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 4GHz |
| Series | 73171 |
| Termination Type | Through Hole |
| Polarity | Normal |
| Impedance | 75Ω |
| Standards/Approvals | EU RoHS China |
| Contact Plating | Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Designed for 75-ohm impedance to ensure optimal signal quality.
- Supports operating frequencies up to 4GHz for versatile RF applications.
- Through hole mounting enables robust mechanical assembly on PCBs.
- Nickel plating enhances corrosion resistance and electrical conductivity.
- Straight female BNC connector ideal for compact electronic designs.
- Compatible with standard RF cables requiring BNC jack connections.
- Rated for a maximum voltage capacity of 500 Vrms at sea level.
- Supports lead-free wave soldering for compliance with modern manufacturing processes.
Product Description
Molex 731711900 73171 Series Coaxial Connector is a precision female BNC connector designed for through-hole PCB mounting. It features a 75 Ω impedance to facilitate high-quality RF signal transmission up to 4GHz frequency. The straight orientation and miniature size provide ease of integration into compact electronic devices.
This connector incorporates nickel plating on both the body and contacts, offering enhanced durability and corrosion resistance for long-term reliability. Designed with normal polarity, it ensures consistent performance in various signal transmission applications.
Typical applications include telecommunications systems, video and audio transmission, measurement and instrumentation devices, as well as industrial automation systems requiring reliable RF connections. The connector is rated for operation at a maximum voltage of 500 Vrms at sea level, making it suited for demanding electronic environments.
Manufactured in Taiwan, this component supports contemporary lead-free wave soldering processes, aligning with environmental and regulatory standards such as EU RoHS and China compliance.
Designed for 75-ohm impedance to ensure optimal signal quality. Supports operating frequencies up to 4GHz for versatile RF applications. Through hole mounting enables robust mechanical assembly on PCBs. Nickel plating enhances corrosion resistance and electrical conductivity.
Straight female BNC connector ideal for compact electronic designs. Compatible with standard RF cables requiring BNC jack connections. Rated for a maximum voltage capacity of 500 Vrms at sea level. Supports lead-free wave soldering for compliance with modern manufacturing processes.
This Molex 73171 Series connector is a trusted solution in numerous industrial, telecommunications, laboratory, and manufacturing setups where reliable coaxial connections are critical. Explore EnvMart for additional Molex connectors and related RF connectivity products to find optimal components tailored to your project's demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a 75 Ω impedance rating, which is designed to ensure optimal signal quality for RF applications.
It supports operating frequencies up to 4GHz, making it suitable for versatile RF applications.
This connector is designed for through-hole mounting, enabling robust mechanical assembly on PCBs.
It is rated for a maximum voltage capacity of 500 Vrms at sea level, suitable for demanding electronic environments.
Both the body and contacts of this connector are nickel plated, which enhances corrosion resistance and electrical conductivity.
It features a straight orientation, which is ideal for compact electronic designs.
Yes, it complies with EU RoHS and China standards, supporting lead-free wave soldering processes.
It has a female connector gender, making it compatible with standard RF cables requiring BNC jack connections.
This connector is manufactured in Taiwan.
Typical applications include telecommunications systems, video and audio transmission, and measurement devices requiring reliable RF connections.
It is classified as a miniature size, facilitating integration into compact electronic devices.
This model supports normal polarity, ensuring consistent performance in various signal transmission applications.
