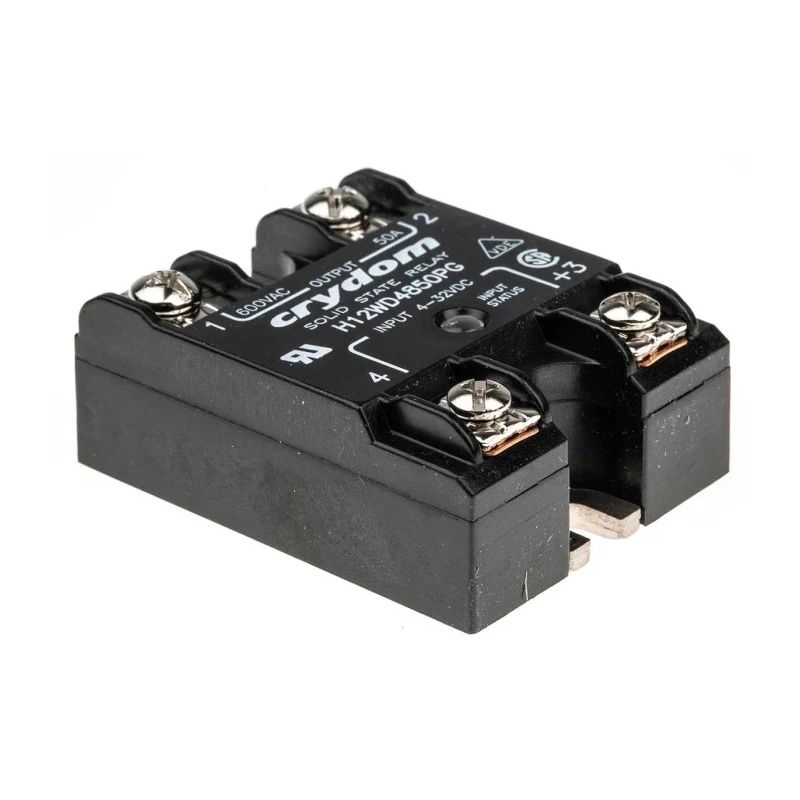

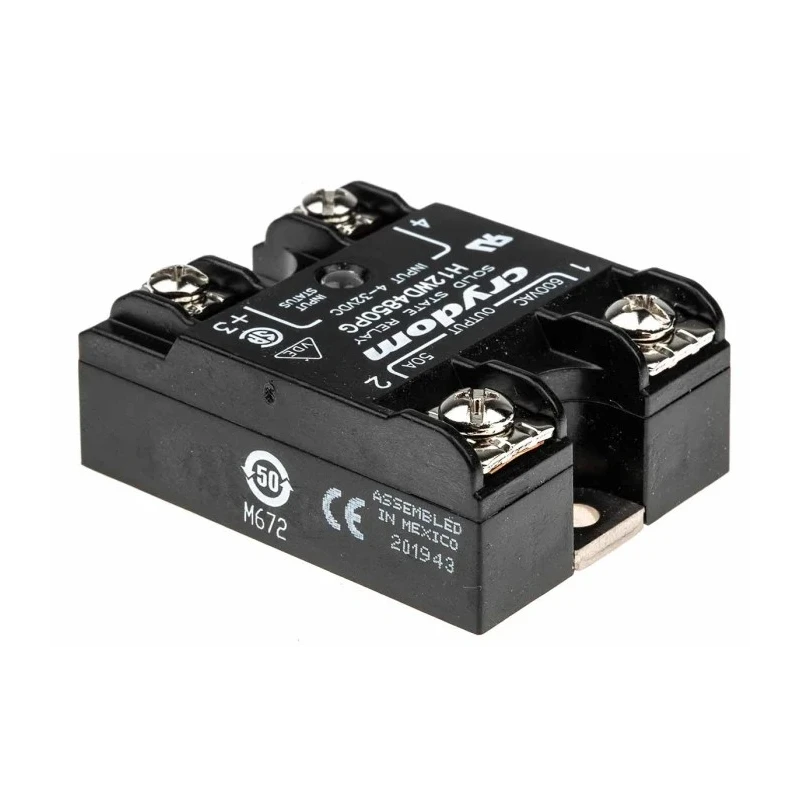

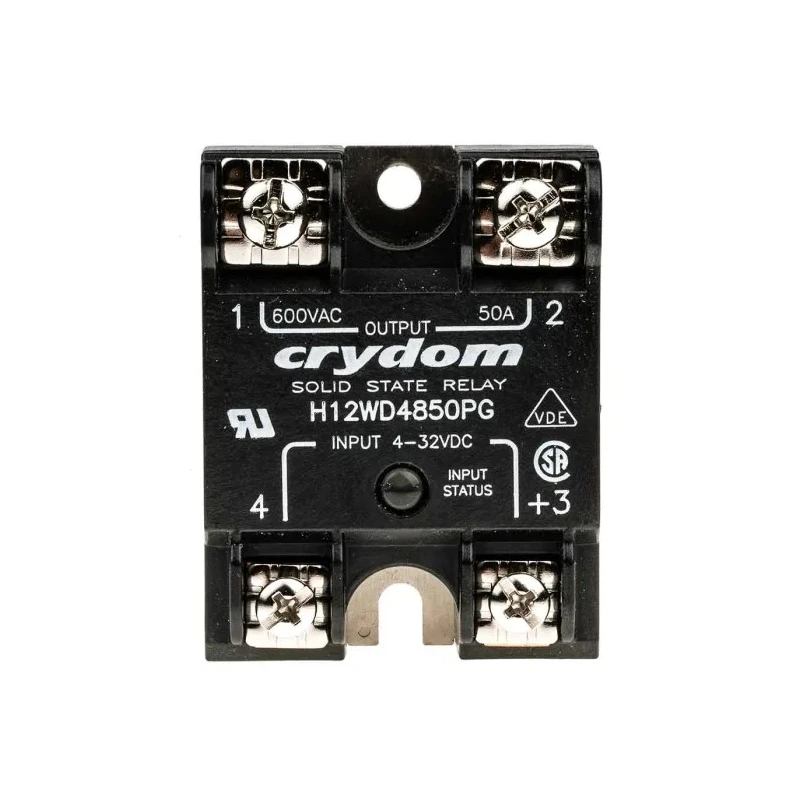

Crydom Solid State Relay Panel Mount, 50 A Load Current, 660 V AC Load, 32 V Control Voltage H12WD

Free Delivery in India | Lowest Global Shipping Charges

Crydom Solid State Relay Panel Mount, 50 A Load Current, 660 V AC Load, 32 V Control Voltage H12WD

Name: Crydom Solid State Relay Panel Mount, 50 A Load Current, 660 V AC Load, 32 V Control Voltage H12WD
Brand: Crydom
SKU: 285425
Price: 104.03 USD
Availability: InStock



Category Solid State Relay Brand Crydom Condition New

Specifications

Country of Origin	India
Brand	Crydom
Height	22.9mm
Length	58.4mm
Model	H12WD
IP Rating	IP20
Width	22.6mm
Mount Type	Panel
Output type	SCR
Series	H12WD
Maximum Operating Temperature	80°C
Capacitance	8pF
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross
Maximum Load Current	50A
Standards/Approvals	UR, CSA, RoHS
Maximum Load Voltage	660V ac
Minimum Load Voltage	48V ac
Minimum Control Voltage	4V
Maximum Control Voltage	32V
Off State Leakage Current	1mA

Key Features

This solid state relay supports a maximum load voltage of 660 V AC and a load current of 50 A.
It features zero cross switching to reduce electrical noise and enhance load control efficiency.
The relay includes an LED status indicator for easy monitoring of the switching state.
Compact dimensions of 58.4 mm length, 22.6 mm width, and 22.9 mm height enable installation in tight spaces.
Operating temperature range from -40°C to 80°C suits demanding industrial environments.
Built with SCR output type and screw terminal connection for secure wiring.
Has IP20 rating providing protection against solid object intrusion.
Includes overvoltage protection and ceramic DBC substrate for superior thermal performance.

Product Description

Crydom H12WD4850PG is a high-performance solid state relay designed for panel mount applications, capable of handling 50 A load current with a maximum load voltage of 660 V AC. Its zero cross switching function reduces electrical noise, making it ideal for precise control in industrial environments.

The relay operates with a control voltage range from 4 V to 32 V, providing excellent flexibility in control applications. Its compact form factor of 58.4 mm length, 22.6 mm width, and 22.9 mm height facilitates efficient use of panel space. The device operates reliably over a wide temperature range of -40°C to 80°C, ensuring suitability for harsh conditions.

The solid state relay incorporates a screw terminal type connection for secure and stable wiring, with overvoltage protection to safeguard circuits against voltage surges. The use of a ceramic DBC substrate enhances thermal dissipation and reliability, promoting long product life and consistent operation.

Installation is straightforward using included SEMS screws and washers, and anti-rotation housing barriers prevent loosening due to vibrations. Accessories such as protective covers, heat sinks, and thermal pads can be added to further optimize performance and safety.

This relay is widely used in lighting controls, heating systems, and other industrial automation applications requiring reliable on/off switching with minimal maintenance. It carries certifications from UR, CSA, and conforms to RoHS standards, emphasizing quality and compliance.

This solid state relay supports a maximum load voltage of 660 V AC and a load current of 50 A. Zero cross switching reduces electrical noise and enhances system reliability. LED indicator facilitates straightforward operational monitoring.

Compact design allows fitting in space-constrained panel environments. Wide operating temperature range from -40°C to 80°C for harsh environments. Screw terminal connections provide secure and stable wiring. IP20 rated for protection against solid object ingress.

Ceramic DBC substrate improves thermal performance for extended reliability. Application in lighting, heating, and industrial process controls. Certified to UR, CSA, and RoHS standards for compliance and safety.
