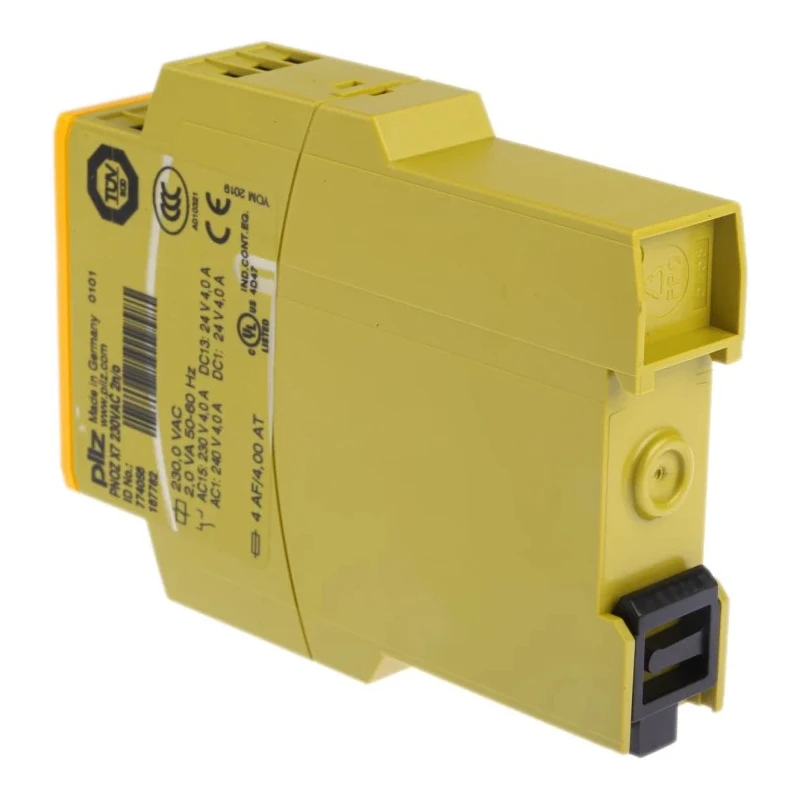

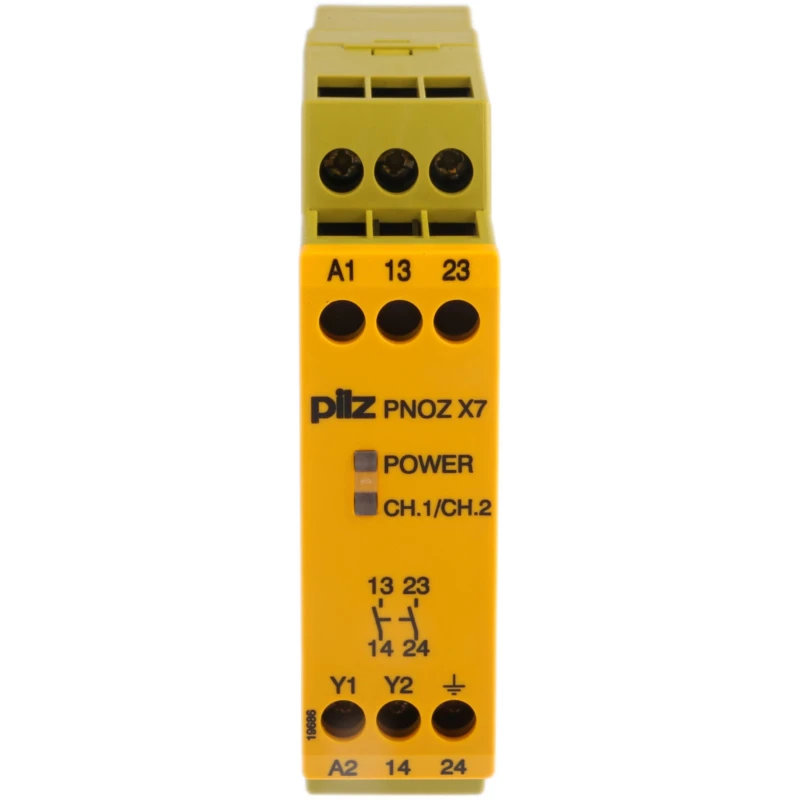

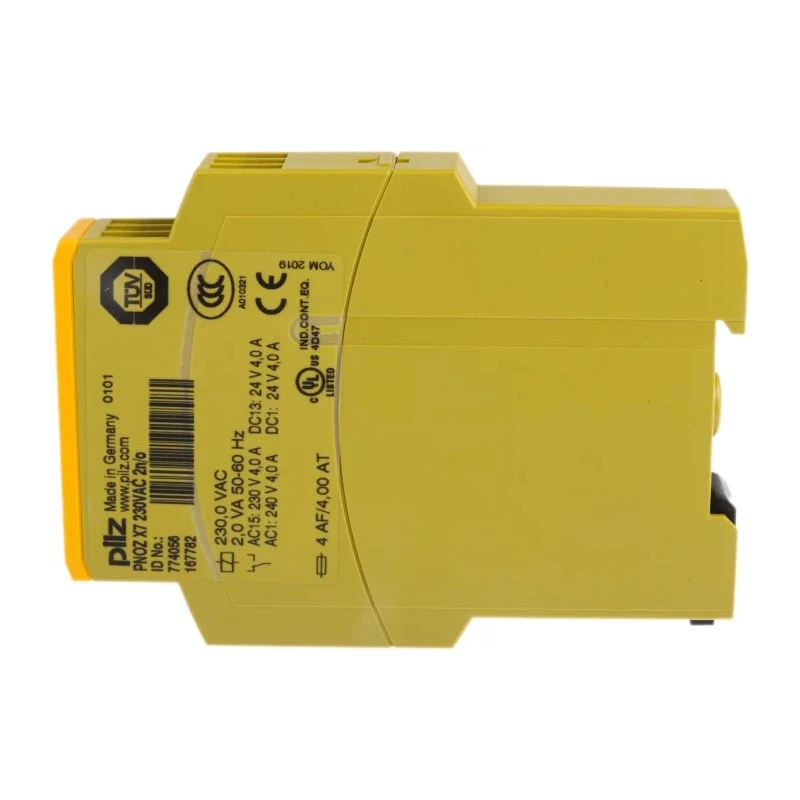

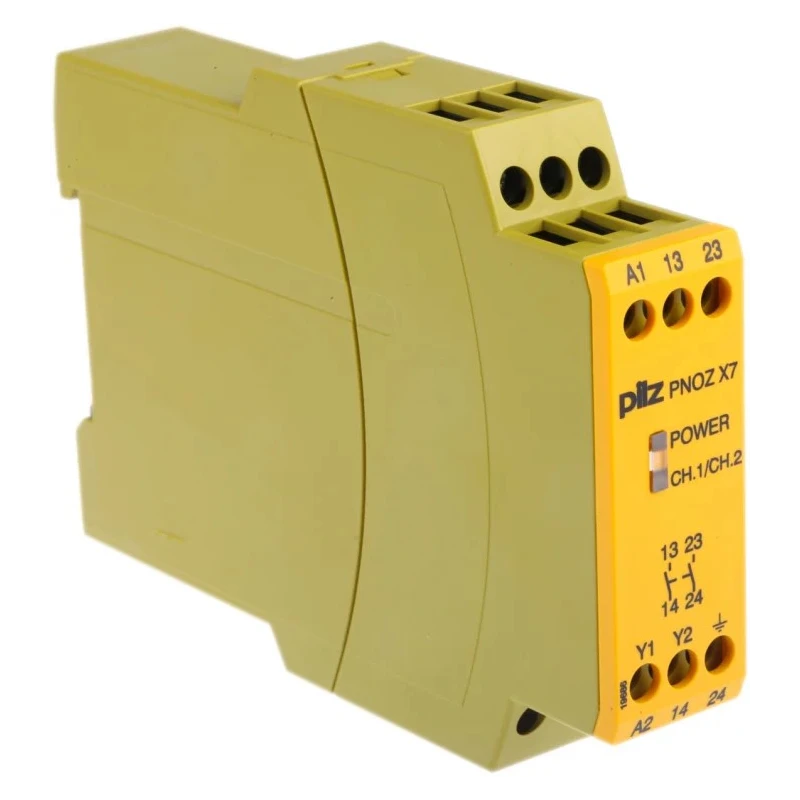

Pilz Safety Relay PNOZ X7, 230V AC, 2 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount 774056

Free Delivery in India | Lowest Global Shipping Charges

Pilz Safety Relay PNOZ X7, 230V AC, 2 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount 774056

Name: Pilz Safety Relay PNOZ X7, 230V AC, 2 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount 774056
Brand: PILZ
SKU: 285337
Price: 250.83 USD
Availability: InStock



Category Safety Relay Brand PILZ Condition New

Specifications

Country of Origin	India
Brand	Pilz
Height	121mm
Length	87mm
Model	774056
IP Rating	IP40, IP54, IP20
Width	22.5mm
Mount Type	DIN Rail
Series	PNOZ X7
Maximum Operating Temperature	55°C
Contact Configuration	2 NO
Minimum Operating Temperature	-10°C
Safety Category	EN 954-1, CAT 2
Terminal type	Screw
Coil Voltage	230V ac
Switching DC Voltage	24V dc
Switching AC Voltage	240V ac
Contact Current	6A
Safety Contacts	2
Number of Auxiliary Contacts	1
Pilz PNOZ X1, 24V ac/dc Safety Relay, 3 Safety Contacts, 1Brand	Pilz

Key Features

Equipped with 2 normally open safety contacts for secure operation.
Features 1 auxiliary contact with screw terminal type for reliable connections.
Supports DIN rail mounting with compact dimensions of 121mm height, 87mm length and 22.5mm width.
Includes built-in self-monitoring and automatic testing at each power cycle for enhanced safety.
Suitable for hazardous industrial environments with IP ratings IP20, IP40, and IP54.
Conforms to multiple international standards including EN 61000-6-2 and IEC 60204-1 for safety compliance.
Operating temperature range from -10°C to 55°C for varied industrial conditions.
LED status indication provided as standard for monitoring supply voltage and device status.

Product Description

Pilz 774056 Safety Relay PNOZ X7 230V AC is a high-quality safety relay designed for industrial automation systems requiring reliable safety interruption in potentially hazardous environments. This single-channel relay features 2 normally open safety contacts and one auxiliary contact, allowing rapid and safe power cut-off to protect personnel and equipment.

The relay is engineered with redundancy and self-monitoring capabilities to ensure safety functions remain effective even during component failures. It automatically tests itself upon each power-up, guaranteeing consistent operation. LED indicators offer visual status for supply voltage and device conditions.

With a compact form factor of 121mm height, 87mm length, and 22.5mm width, the safety relay mounts easily on standard DIN rails. Its robust construction meets IP20, IP40, and IP54 protection classes, making it suitable for harsh industrial environments such as manufacturing plants, warehouses, and automation facilities.

Equipped with 2 normally open safety contacts for fail-safe operation. One auxiliary contact with screw terminal type ensuring secure wiring connections. Compliant with multiple safety and electrical standards including EN 61000-6-2, EN 954-1 CAT 2, IEC 60204-1, and EN 60947 series.

Operating temperature range from -10°C up to 55°C suitable for varying industrial conditions. Built-in redundancy with self-monitoring and automatic testing for enhanced reliability. LED status indication provides clear operational feedback.

Designed primarily for applications such as emergency stop buttons, reset buttons, and external relay monitoring.

Ideal for use in industrial, manufacturing, and automation safety systems requiring rapid, reliable safety relay solutions. The PNOZ X7 Safety Relay provides peace of mind through stringent safety features and compliance with international safety standards.

Explore the wide range of Pilz products for automation safety and control on EnvMart for reliable, certified industrial components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features 2 normally open (NO) safety contacts, ensuring secure operation for safety interruptions.

The safety relay has compact dimensions of 121mm in height, 87mm in length, and 22.5mm in width, making it suitable for DIN rail mounting.

It operates effectively within a temperature range of -10°C to 55°C, accommodating various industrial conditions.

This unit supports DIN rail mounting, allowing for easy installation in control panels and industrial setups.

The coil voltage for this safety relay is 230V AC, suitable for standard industrial applications.

Yes, it includes one auxiliary contact with a screw terminal type for reliable connections.

The relay is rated IP20, IP40, and IP54, making it suitable for various hazardous industrial environments.

It conforms to multiple international standards including EN 61000-6-2, EN 954-1 CAT 2, IEC 60204-1, and EN 60947 series for safety compliance.

The contact current rating for the safety contacts is 6A, allowing for effective control of connected equipment.

It is equipped with built-in self-monitoring and automatic testing at each power cycle to ensure consistent operation and safety.

This model is designed primarily for applications such as emergency stop buttons, reset buttons, and external relay monitoring in industrial automation systems.

The maximum switching voltage for the PNOZ X7 is 240V AC, enabling it to control a variety of electrical loads.
