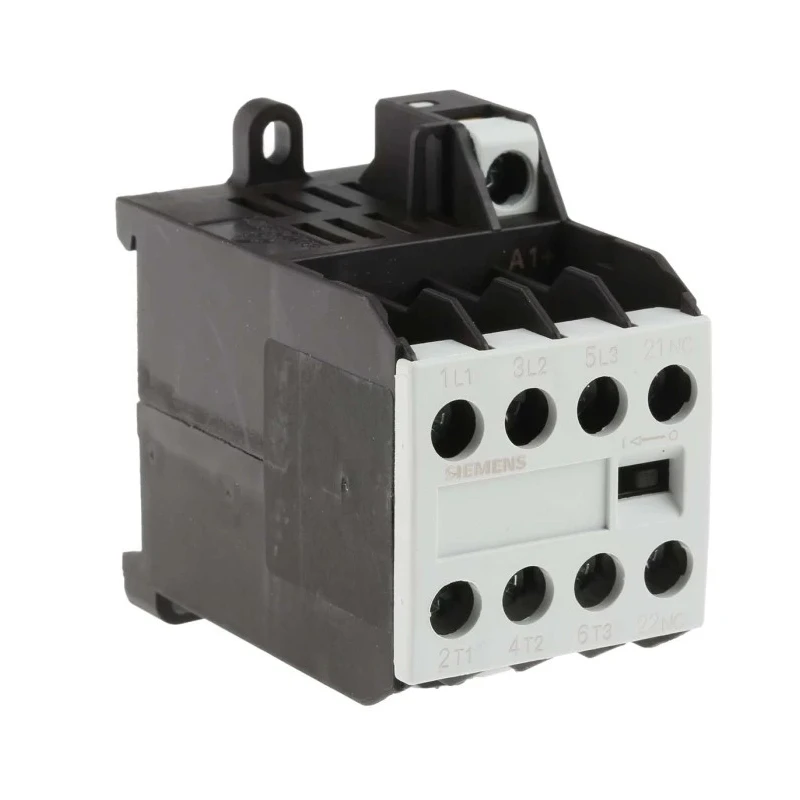

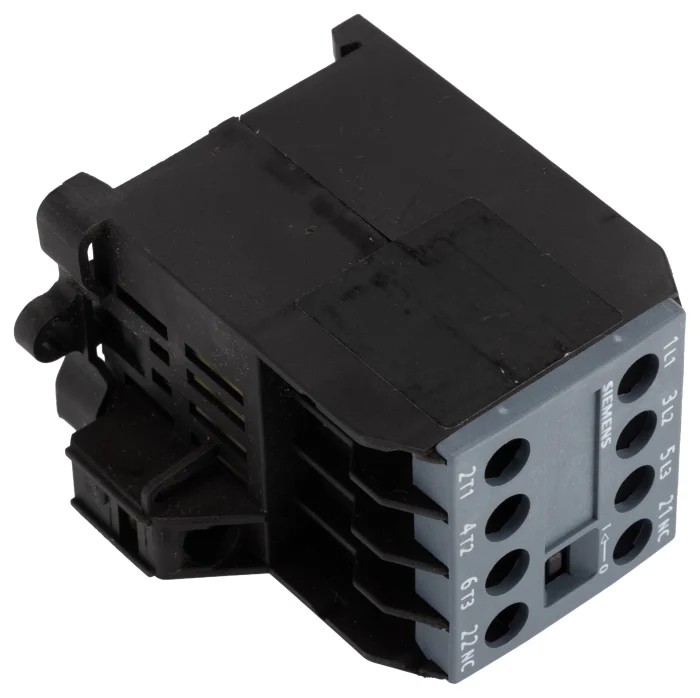

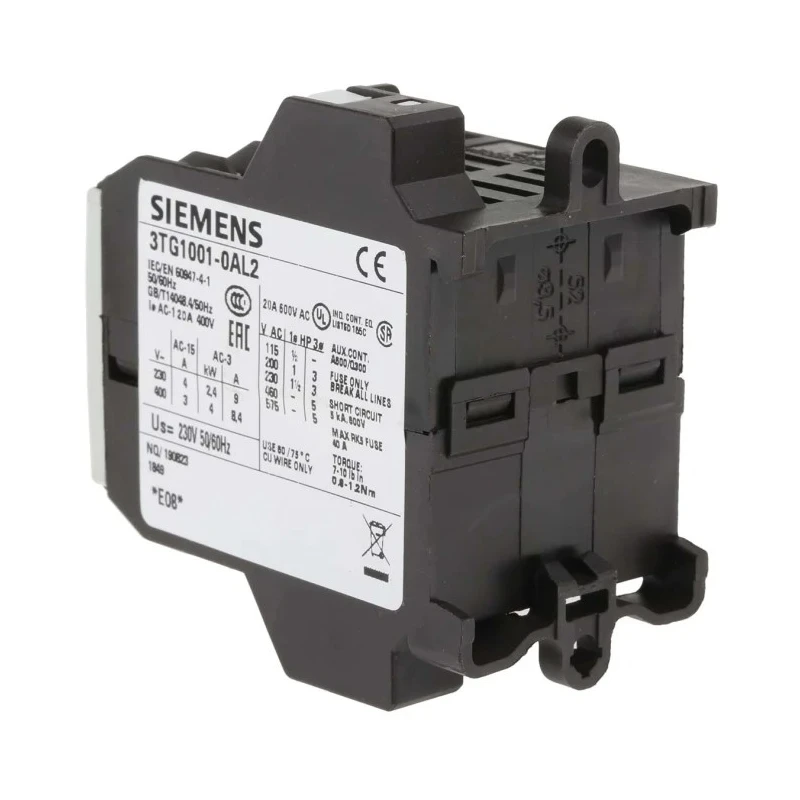

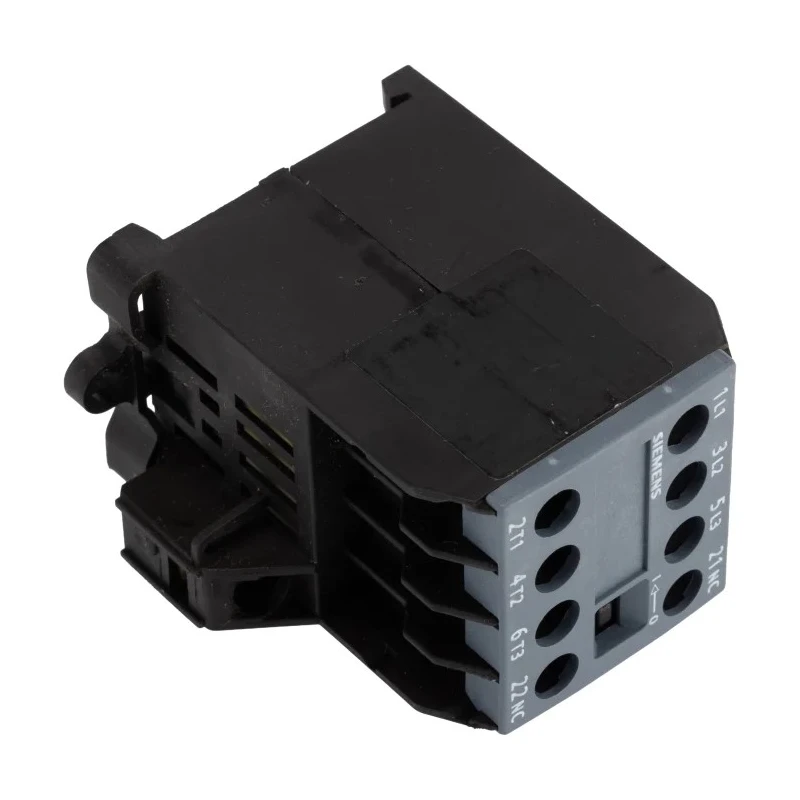

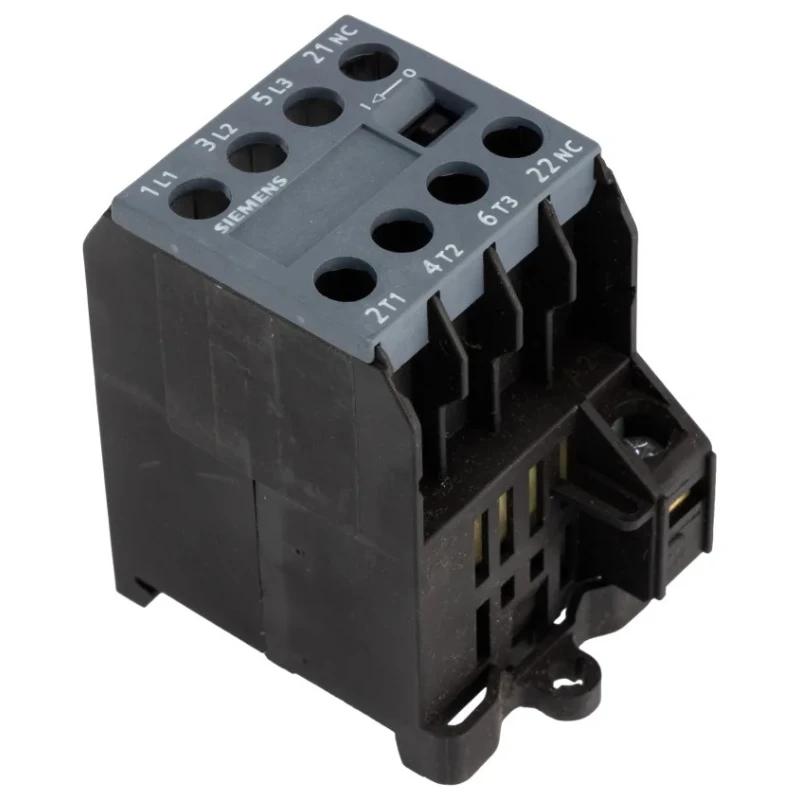

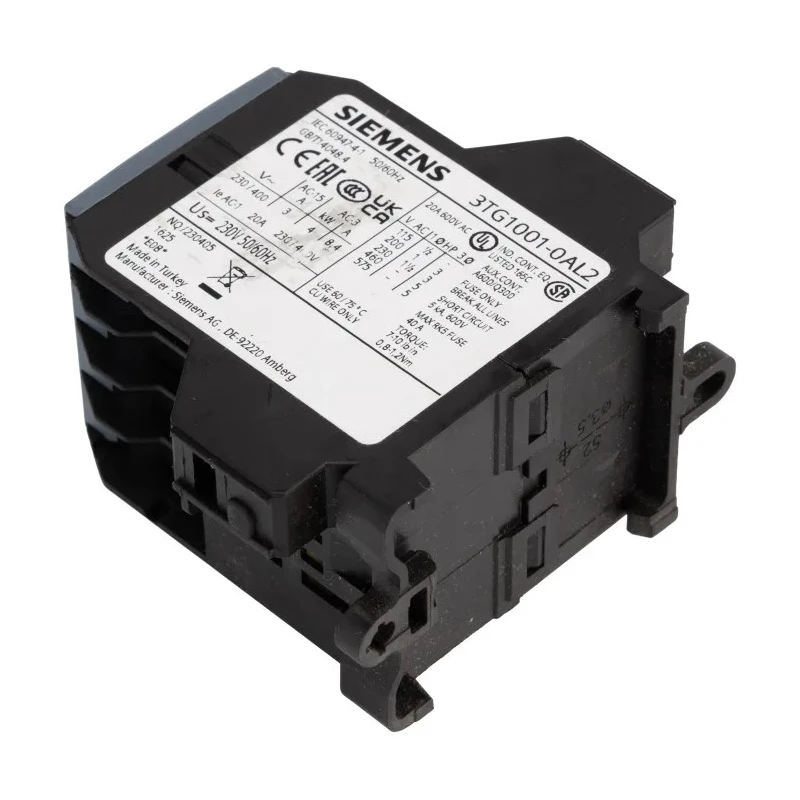

Siemens 3TG1 Power Relay 230V AC Coil 4-Pole 20A 4kW 400V AC 3 NO/1 NC 3TG1001-0AL2

Free Delivery in India | Lowest Global Shipping Charges

Siemens 3TG1 Power Relay 230V AC Coil 4-Pole 20A 4kW 400V AC 3 NO/1 NC 3TG1001-0AL2

Name: Siemens 3TG1 Power Relay 230V AC Coil 4-Pole 20A 4kW 400V AC 3 NO/1 NC 3TG1001-0AL2
Brand: Siemens
SKU: 284287
Price: 70.79 USD
Availability: InStock



Category Power Relay Brand Siemens Condition New

Specifications

Country of Origin	Turkey
Brand	Siemens
Function	Motor Control
Length	62mm
Model	3TG1001-0AL2
Depth	60mm
Width	36mm
Mount Type	DIN Rail
Series	3TG1
Power Rating	4kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw Clamp
Number of Poles	4
Standards/Approvals	CSA, UL, UKCA, RoHS, CCC, CE, EAC
Contact Voltage	400V ac
Coil Voltage	230V ac
Normal State Configuration	3 NO/1 NC
Contact Current	20A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	20A
Control Circuit Voltage Uc	230V ac
Contactor Application	Motor Control
Pole and Throw Configuration	3P
Siemens Contactor Relay, 400 V Coil, 3-Pole, 8.4 A, 4 kW, 3NOBrand	Siemens

Key Features

Operates with a coil voltage of 230V AC for reliable switching.
Equipped with 4 poles supporting a contact current of 20A at 400V AC.
Power rating of 4kW suitable for substantial industrial tasks.
Includes 3 normally open and 1 normally closed contacts plus one auxiliary contact.
Screw clamp terminals ensure secure and easy wiring installation.
DIN rail mount type enables standardized mounting in control panels.
Designed for motor control with robust performance and operational current of 20A.
Durable operation from -25°C to 55°C allowing use in varied environments.

Product Description

Siemens 3TG1001-0AL2 is a high-performance 3TG1 series power relay designed for motor control and industrial automation applications. It features a coil voltage of 230V AC and supports contact currents up to 20A at 400V AC, providing a power rating of 4kW. The relay includes four poles, arranged as 3 normally open and 1 normally closed contact, plus one auxiliary contact for enhanced circuit control.

This relay is ideally suited for controlling motors, industrial machinery, HVAC systems, and electrical panels requiring reliable circuit protection and switching. It features screw clamp terminals for secure wiring and DIN rail mounting for easy installation in standard electrical enclosures.

Constructed to operate in temperatures ranging from -25°C to 55°C, it ensures dependable performance across various industrial environments. The compact dimensions (62mm length, 60mm depth, 36mm width) facilitate integration within constrained spaces.

Compliant with major international standards including CSA, UL, UKCA, RoHS, CCC, CE, and EAC, this Siemens power relay guarantees safety and quality in industrial applications. Operates at 230V AC coil voltage with 4-pole contact configuration.

Supports 20A contact current rated at 400V AC. Power capacity up to 4kW for substantial industrial loads. Includes 3 normally open and 1 normally closed contact plus an auxiliary contact. Screw clamp terminals facilitate secure electrical connections.

DIN rail mount ensures standardized and secure mounting. Reliable motor control with stable operational current at 20A. Wide operating temperature range from -25°C to 55°C. Compact dimensions allow easy fitting in control panels.

Certified to international electrical safety and performance standards.

This Siemens 3TG1 Power Relay is essential in industrial control panels for managing electrical circuits safely and efficiently. It supports a variety of industrial use cases including manufacturing automation, HVAC systems, motor controls, and lighting control systems. Suitable for electrical engineers and industrial maintenance applications, it ensures operational safety and robustness within control gear assemblies.

Explore more industrial relays and contactors on EnvMart to optimize your electrical control systems with trusted Siemens quality and performance.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The coil voltage of this relay is 230V AC, which is essential for its operation in motor control applications.

It supports a maximum contact current of 20A at 400V AC, making it suitable for substantial industrial tasks.

This model features a 4-pole configuration, with 3 normally open and 1 normally closed contact.

The power rating of the Siemens 3TG1 Power Relay is 4kW, allowing it to handle significant loads in industrial settings.

The relay has compact dimensions of 62mm in length, 60mm in depth, and 36mm in width, facilitating easy integration into control panels.

It operates effectively within a temperature range of -25°C to 55°C, suitable for various industrial environments.

This model is designed for DIN rail mounting, ensuring standardized and secure installation in control panels.

It features screw clamp terminals, which provide secure and easy wiring connections.

This relay is compliant with several international standards including CSA, UL, UKCA, RoHS, CCC, CE, and EAC, ensuring safety and quality.

It is ideally suited for motor control, industrial machinery, HVAC systems, and electrical panels requiring reliable circuit protection and switching.

The Siemens 3TG1 Power Relay includes one auxiliary contact, which enhances its circuit control capabilities.

The normal state configuration consists of 3 normally open contacts and 1 normally closed contact, providing versatile circuit control options.
