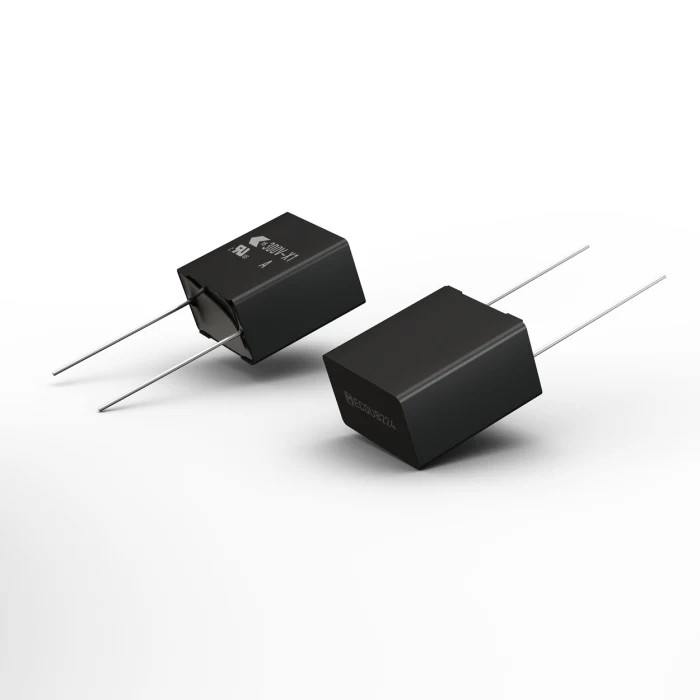

Panasonic ECQUB Polypropylene Film Capacitor ±20% 47 nF 300V AC Through Hole ECQUBAF473V2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 11.5mm |
| Length | 18.5mm |
| Model | ECQUBAF473V2 |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | ECQUB |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±20 % |
| Capacitance | 47nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Crimped Lead |
| Dissipation Factor | 0.1% |
| Lead Length | 20mm |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 300V ac |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed using metallized polypropylene film for reliable non-inductive performance.
- Features crimped lead terminals with a lead pitch of 15mm for secure connection.
- Operates within a temperature range of -40°C to 110°C, suitable for harsh environments.
- Complies with automotive standard AEC-Q200 and safety standards EN 60384-14, CSA E60384-14, UL 60384-14.
- Encased in flame-retardant plastic, offering safety and moisture resistance up to 85°C and 85% humidity.
- Ideal for interference suppression in electronic equipment applications.
Product Description
Panasonic ECQUBAF473V2 polypropylene film capacitor delivers robust performance with a capacitance of 47 nF and a rated AC voltage of 300V AC. This through-hole mounted component features metallized polypropylene film construction ensuring low dissipation factor of 0.1% and high safety standards compliance, including EN 60384-14 and AEC-Q200 automotive certification.
The capacitor operates reliably across a wide temperature range from -40°C to 110°C, making it suited for industrial electronics, automotive, and general interference suppression in electronic equipment. Its flame-retardant plastic case and non-combustible resin casing provide enhanced safety and durability in demanding environments.
With dimensions optimized for compact PCB layouts - 18.5mm length, 11.5mm height, 7mm width - and 15mm lead pitch, it ensures ease of mounting and integration. Leads are crimped for secure attachments, with 0.6mm diameter and 20mm length leads facilitating robust mechanical and electrical connections.
This capacitor is RoHS compliant and built in China, designed to meet stringent industrial quality and safety standards. Constructed using metallized polypropylene film for reliable performance. Rated capacitance of 47 nF with ±20% tolerance ensures precise capacitance value.
Flame-retardant plastic case provides enhanced safety and moisture resistance. Wide operating temperature range from -40°C to 110°C suits various applications. Compliant with automotive and international safety standards including AEC-Q200 and UL 60384-14.
Through-hole mount with 15mm lead pitch for secure and easy PCB integration. Low dissipation factor of 0.1% reduces energy loss and improves efficiency.
This Panasonic polypropylene film capacitor is ideal for industrial, automotive, electronics manufacturing, and HVAC applications, providing reliable interference suppression and circuit stability. Explore EnvMart’s comprehensive range of Film Capacitors and electronic components for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 47 nF with a tolerance of ±20%.
The rated AC voltage for this capacitor is 300V AC.
It operates reliably within a temperature range of -40°C to 110°C.
The lead pitch for this model is 15mm.
The dimensions are 18.5mm in length, 11.5mm in height, and 7mm in width.
It features crimped lead terminals with a lead diameter of 0.6mm and a lead length of 20mm.
Yes, it complies with automotive standard AEC-Q200 and safety standards EN 60384-14, CSA E60384-14, and UL 60384-14.
The dissipation factor for this model is 0.1%.
It is constructed using metallized polypropylene film and encased in flame-retardant plastic.
This capacitor is suitable for industrial electronics, automotive applications, and general interference suppression in electronic equipment.
This product is manufactured in China.
This capacitor uses a through-hole mounting type for easy PCB integration.
