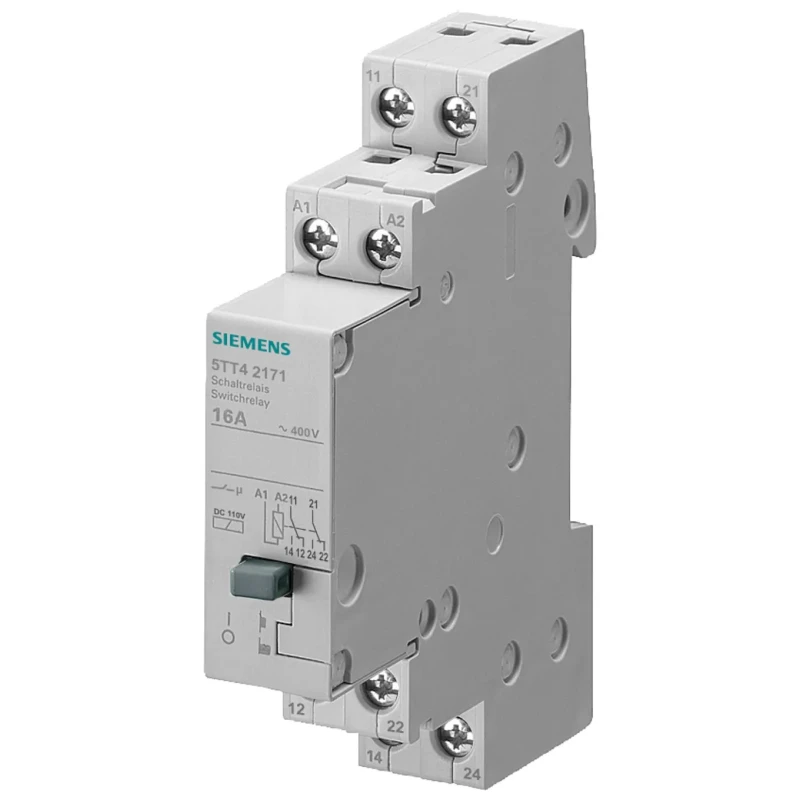

Siemens DIN Rail Relay, 110V DC Coil, 16A Switching Current, DPDT, Screw Terminal, 1.2kW Switching Power 5TT4217-1
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Siemens |
| Height | 60mm |
| Length | 30mm |
| Model | 5TT4217-1 |
| Width | 70mm |
| Mount Type | DIN Rail |
| Series | 5TT4217 |
| Maximum Operating Temperature | 40°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 16A |
| Terminal type | Screw |
| Standards/Approvals | RoHS, CE |
| Coil Voltage | 110V dc |
| Coil Power | 1.7W |
| Switching Power | 1.2kW |
Key Features
- The relay features a DIN rail mounting design for easy installation.
- It supports a switching power capacity of 1.2 kW with screw terminals.
- Operates reliably within a temperature range from -10°C to 40°C.
- Provides up to 50,000 switching cycles and is IP20 rated for conductor protection.
- Coil power consumption is low at 1.7W, enhancing energy efficiency.
- The device meets RoHS and CE standards ensuring compliance and quality assurance.
Product Description
Siemens 5TT4217-1 DIN Rail Relay with 110V DC coil voltage and 16A switching current is designed for industrial and electrical automation usage. Featuring a Double Pole Double Throw (DPDT) contact configuration and screw terminal connections, this relay offers robust switching capability with a power rating of 1.2 kW.
Its compact dimensions (30mm length, 70mm width, 60mm height) allow seamless integration into DIN rail-mounted assemblies, ensuring efficient space usage. The relay operates reliably from a minimum temperature of -10°C to a maximum of 40°C, making it suitable for various environment conditions.
The product is rated IP20 for protection with connected conductors and supports a high surge voltage resistance of 4 kV. It is capable of performing up to 50,000 switching cycles, emphasizing its durability and long-term operational stability.
The coil power is economical at 1.7W, helping to reduce energy consumption in control circuits. Siemens ensures quality and safety compliance through RoHS and CE certifications. Manufactured in Romania, this relay is suitable for industrial, laboratory, automation, and electrical control applications requiring reliable power relay solutions.
The relay features a DIN rail mounting design for easy installation. It supports a switching power capacity of 1.2 kW with screw terminals. Operates reliably within a temperature range from -10°C to 40°C. Provides up to 50,000 switching cycles and is IP20 rated for conductor protection.
Dimensions are compact with length 30mm, width 70mm, and height 60mm. Coil power consumption is low at 1.7W, enhancing energy efficiency. The device meets RoHS and CE standards ensuring compliance and quality assurance. Explore more from Siemens in the Relays & Contactors category at EnvMart for high-quality industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 16A.
The coil voltage for this model is 110V DC.
The maximum switching power of this relay is 1.2 kW.
It features a Double Pole Double Throw (DPDT) contact configuration.
The dimensions are 30mm in length, 70mm in width, and 60mm in height.
The relay operates within a temperature range of -10°C to 40°C.
This relay uses screw terminals for connections.
It is capable of performing up to 50,000 switching cycles.
The coil power consumption is 1.7W.
This relay meets RoHS and CE standards for compliance and quality assurance.
It is manufactured in Romania.
This relay is designed for DIN rail mounting.
