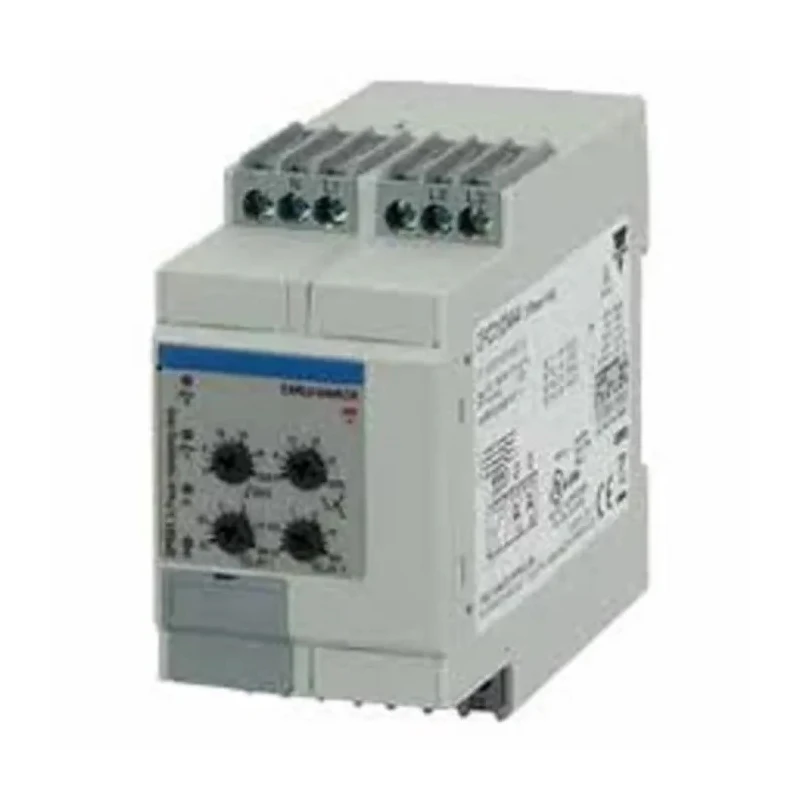

Carlo Gavazzi Monitoring Relay 3 Phase 208/480 V AC Monitor Range SPDT DIN Rail DPC01DM44

Carlo Gavazzi DPC01DM44 Monitoring Relay is a precise 3 Phase electrical monitoring solution designed for industrial and commercial applications requiring voltage supervision within 208/480 V AC ranges. It features a Single Pole Double Throw (SPDT) contact configuration and is engineered for DIN Rail mounting systems, ensuring robust integration into control panels.

This relay efficiently monitors critical parameters such as phase loss, phase sequence correctness, overvoltage, undervoltage, voltage asymmetry, and voltage tolerance, crucial for protecting sensitive equipment in manufacturing, automation, electrical distribution, and HVAC systems.

It supports both 3P and 3P+N systems and derives power supply directly from the monitored mains, simplifying installation without the need for additional power sources. Two independent delay timers, adjustable up to 30 seconds, allow for tailored response times to voltage anomalies, reducing false alarms in fluctuating environments.

Output and LED status indicators provide real-time monitoring feedback, enhancing clarity during diagnostics and system checks. The relay’s ultra-high harmonic immunity assures stable performance even in environments with significant electrical noise, typical in industrial facilities.

Adjustable parameters including voltage levels, asymmetry limits, tolerance thresholds, and time delays make it versatile for varied operational requirements. Constructed with IP20 rated housing and secure screw terminals, it conforms to relevant safety and performance standards such as RoHS, CE, CSA, CCC, and UL.

Dimensions of 99.5mm length, 45mm width, and 80mm height facilitate compact mounting in control panels. Originating from Italy, the DPC01DM44 model exemplifies quality manufacturing and adherence to international standards.

The relay monitors phase loss, sequence, and voltage anomalies. Dual delay functions up to 30 seconds enhance alarm accuracy. Power supply from monitored mains simplifies connections. LED indicators provide operational status insights.

Excellent harmonic immunity suited for industrial settings. Adjustable monitoring settings enable tailored voltage supervision. Robust DIN Rail mounting with IP20 rating and screw terminals. Ideal for industrial automation, electrical distribution, HVAC systems, and manufacturing process monitoring. Discover more industrial monitoring solutions and relays on EnvMart.
