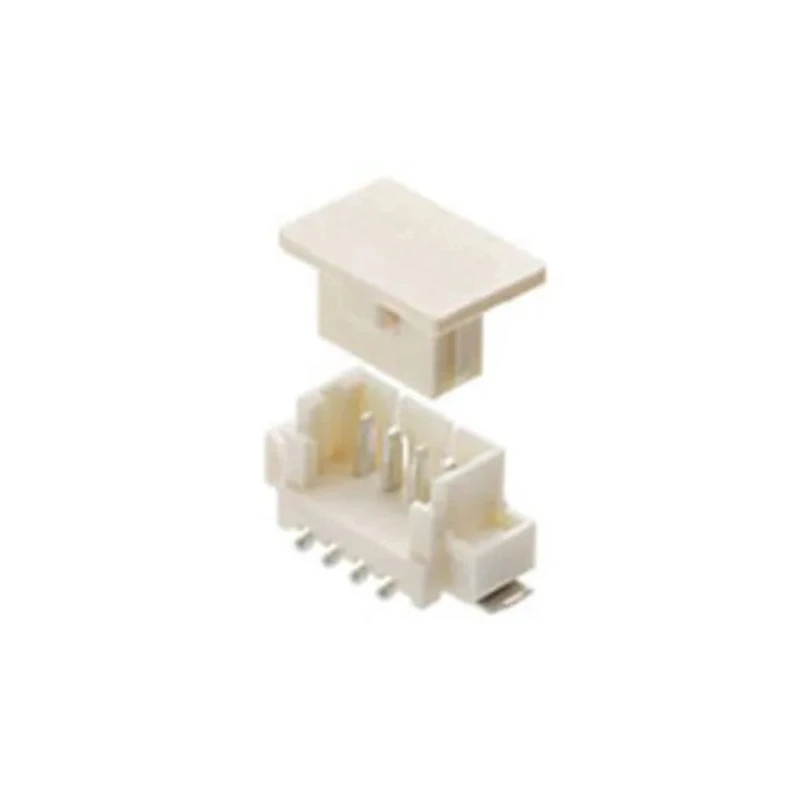

Molex PicoBlade Series Vertical Surface PCB Header 4 Contact 1.25 mm Pitch 1 Row Shrouded 533980467
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Standards/Approvals | UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | PicoBlade Connector System |
| Tail Pin Length | 0.6mm |
Key Features
- This PCB header features a vertical orientation with a 1 row design.
- Constructed with nylon housing for durability.
- Contacts are made of phosphor bronze with tin plating ensuring reliable conductivity.
- Rated for 1A current and 125V voltage for safe and efficient performance.
- Operating temperature ranges from -40°C to 85°C for versatile applications.
- Shrouded design enhances connection security and protection.
- Surface mount type supports easy PCB integration.
- Tail pin length is 0.6 mm for optimal soldering and connection.
Product Description
Molex 533980467 PicoBlade Series Vertical Surface PCB Header is a high-quality connector designed for surface-mount applications. It features 4 contacts arranged in a single row with a pitch of 1.25 mm and vertical orientation, making it suitable for compact PCB layouts.
The header housing is made from durable nylon material, while the contacts are crafted from phosphor bronze with tin plating to provide excellent electrical performance and corrosion resistance. Rated at 1A current and 125V voltage, it supports a broad range of electronic devices requiring secure and reliable connections.
This shrouded header ensures protection and secure mating with the corresponding connectors. Its operating temperature range from -40°C to 85°C enables usage in various industrial, commercial, and electronic manufacturing environments.
The surface mount termination facilitates automated PCB assembly processes, with a tail pin length of 0.6 mm optimized for soldering. Compliance with UL E29179 certification guarantees adherence to recognized safety standards.
Typical applications include instrumentation, telecommunications, and embedded electronic systems where compact, reliable, and robust connectors are essential. This PCB header features a vertical orientation with a 1 row design.
Constructed with nylon housing for durability. Contacts are made of phosphor bronze with tin plating ensuring reliable conductivity. Rated for 1A current and 125V voltage for safe and efficient performance. Operating temperature ranges from -40°C to 85°C for versatile applications.
Shrouded design enhances connection security and protection. Surface mount type supports easy PCB integration. Tail pin length is 0.6 mm for optimal soldering and connection. UL E29179 standard approved for safety and quality assurance.
Manufactured in Malaysia under strict quality guidelines. Explore more PCB Headers and related connectors in the Electronics & Electricals category at EnvMart for quality and trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for 1A current and 125V voltage, ensuring safe and efficient performance in electronic applications.
The operating temperature range for this model is from -40°C to 85°C, making it suitable for various industrial and commercial environments.
The housing is made from nylon, while the contacts are crafted from phosphor bronze with tin plating, providing reliable conductivity and corrosion resistance.
This model features 4 contacts arranged in a single row, designed for compact PCB layouts.
The tail pin length is 0.6 mm, optimized for soldering and connection during PCB assembly.
This model uses a surface mount type, which facilitates easy integration into PCBs and supports automated assembly processes.
Yes, it complies with the UL E29179 certification, ensuring adherence to recognized safety standards.
This PCB header features a vertical orientation, suitable for various compact applications.
It belongs to the PicoBlade Connector System, designed for reliable connections in electronic devices.
Typical applications include instrumentation, telecommunications, and embedded electronic systems, where compact and reliable connections are essential.
The pitch size of the contacts is 1.25 mm, which is standard for many PCB layouts.
This model is manufactured in Malaysia under strict quality guidelines, ensuring consistent quality.
