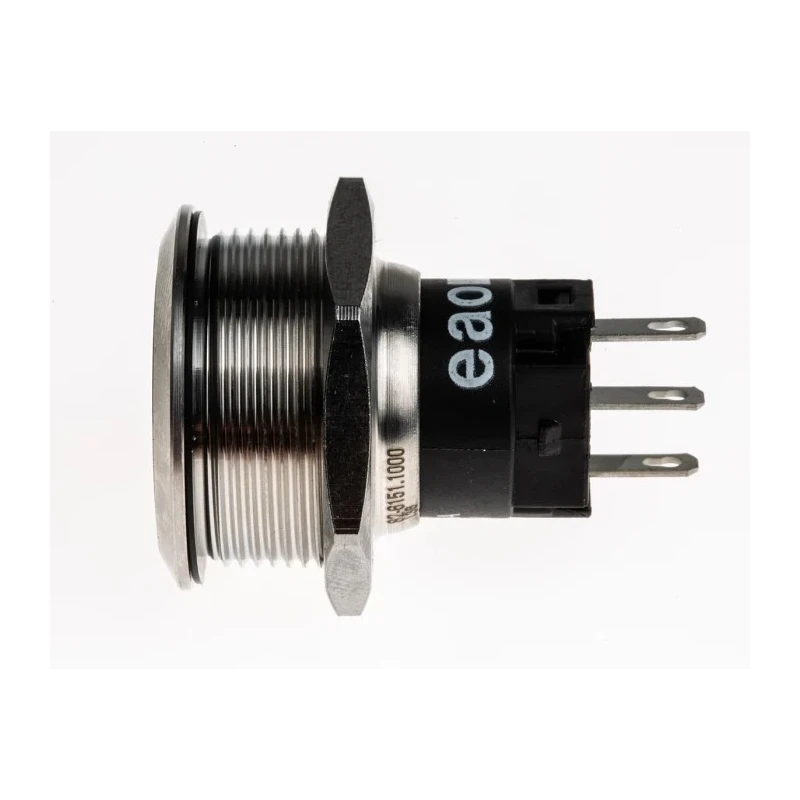

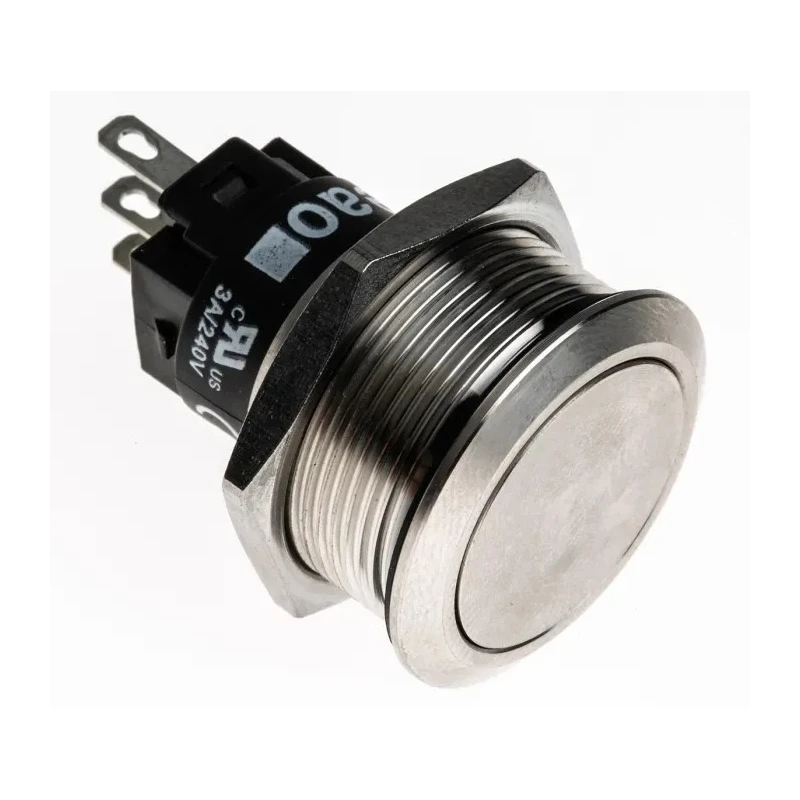

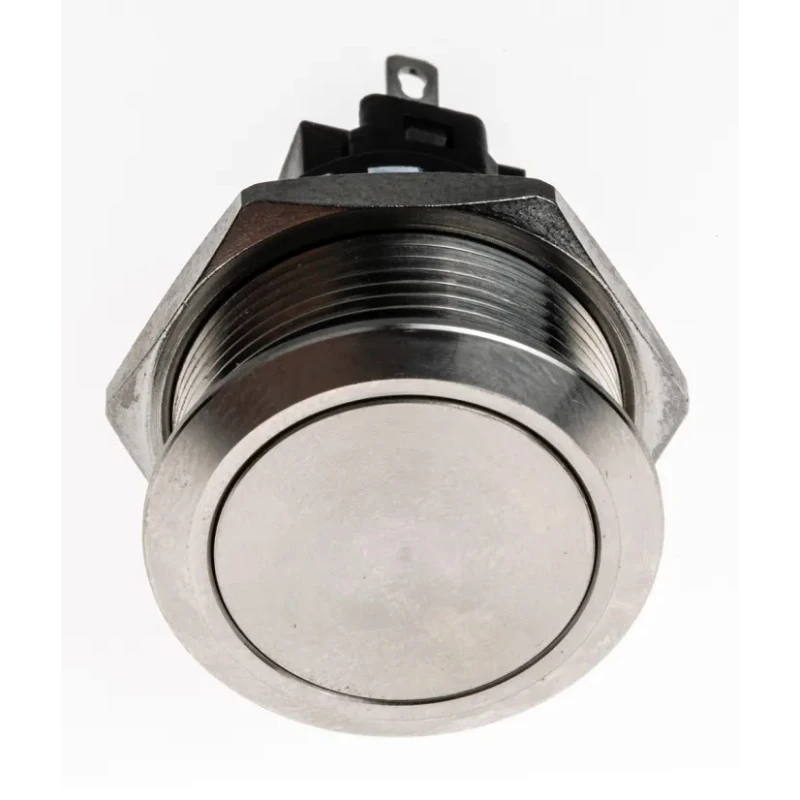

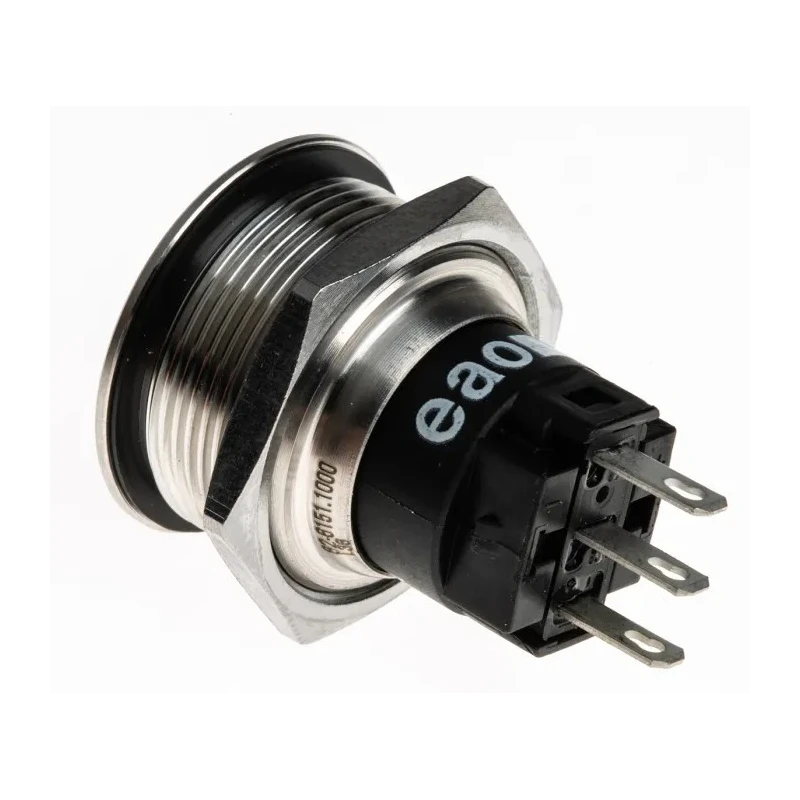

EAO Stainless Steel Push Button Switch Panel Mount Momentary SPDT 22.3 mm Cutout IP65 IP67 240 V AC/DC 82-6151.1000



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch features a silver actuator colour with a round style for ergonomic pressing.
It operates with a snap-action momentary mechanism for quick response.
Designed for robust industrial use with IK10 vandal resistance and front protection.
Rated for operation in temperatures from -30°C to 70°C ensuring reliability in harsh environments.
It supports switching voltages of up to 240 V AC and DC with a contact current rating of 3A.
Mounts flush on panels with a compact 22.3 mm cutout to optimize panel space.
Constructed from stainless steel for impact resistance and corrosion protection.
IP65 and IP67 ratings guarantee dust-tight construction and water immersion protection up to 1 meter for 30 minutes.

Product Description

EAO 82-6151.1000 stainless steel push button switch is a momentary SPDT type switch designed for panel mounting with a precise 22.3 mm cutout diameter. It is rated for both 240V AC and DC operation, meeting IP65 and IP67 standards for ingress protection.

This switch's actuator is silver, round, and non-illuminated, providing a tactile, snap-action mechanism for reliable momentary operation. Made from robust stainless steel, the switch is highly resistant to impact and corrosion, suitable for harsh industrial, construction, and manufacturing environments.

It offers excellent vandal resistance meeting IK10 standards with frontal protection, making it ideal for exposed public applications and hygienic environments requiring frequent cleaning. The device withstands operating temperatures from -30°C to 70°C and supports a maximum contact current of 3 amperes, ensuring dependable electrical performance.

Its compact mounting cutout minimizes panel space usage while providing flush panel mounting to prevent accidental actuation. The switch is suitable for a broad range of applications including machinery and factory equipment, construction machinery, audio and video equipment, and building management systems.

The 82 Series push button switch is manufactured in Switzerland, assuring high quality and reliability. Mounting cutout size is 22.3 mm which allows efficient panel integration. Features IP65 and IP67 ratings, providing dust and water ingress protection.

Switch contact configuration is SPDT with a CO switch configuration. Switch contact current is rated at 3A for moderate power loads. Motion is momentary, with a silver actuator color and round style. Robust stainless steel construction offers enhanced durability and vandal resistance.

Operates safely within -30°C to 70°C temperature range.

This push button switch from EAO's 82 Series is well-suited for industrial, automation, electrical, and control panel applications requiring a high-quality, reliable momentary switch. It integrates seamlessly within demanding environments requiring stringent ingress protection and mechanical robustness.
