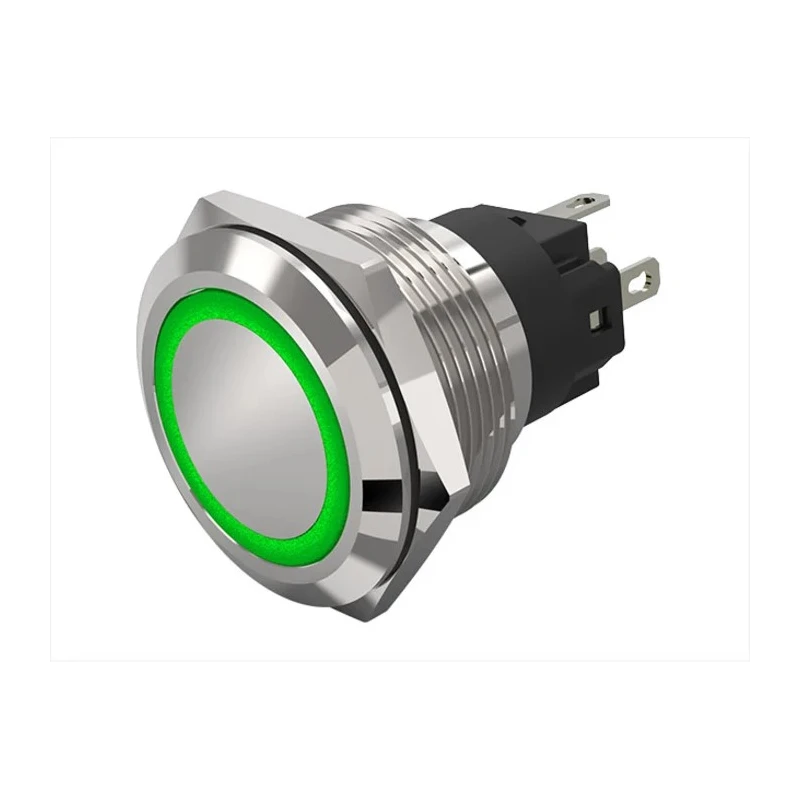

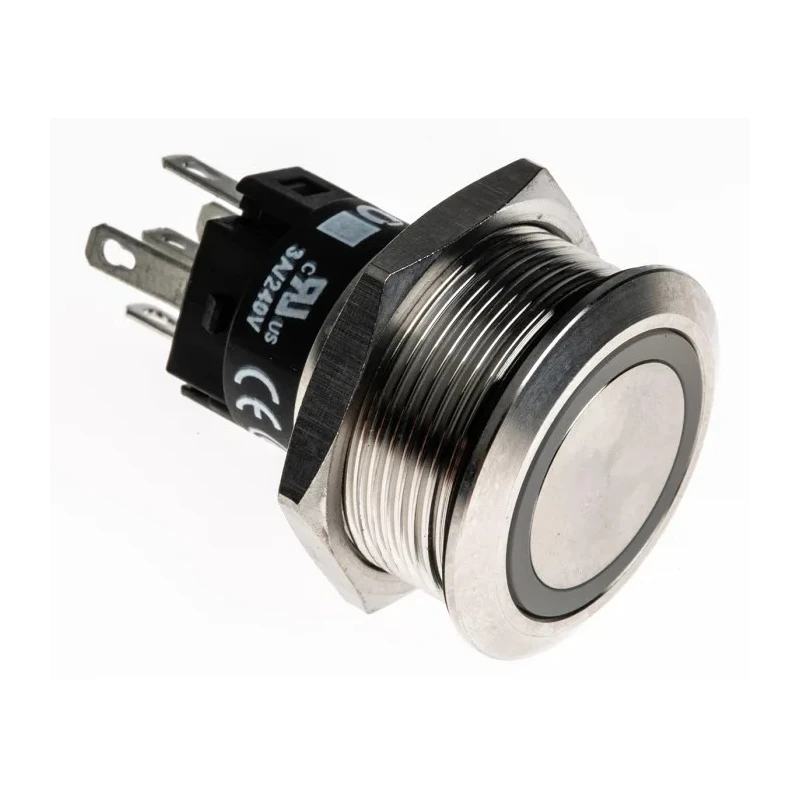

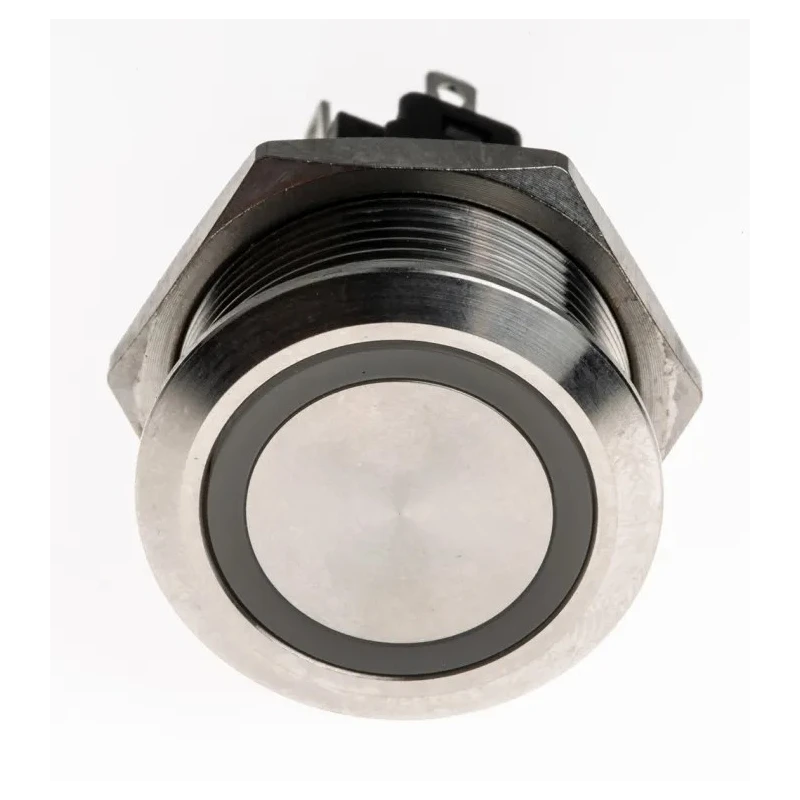

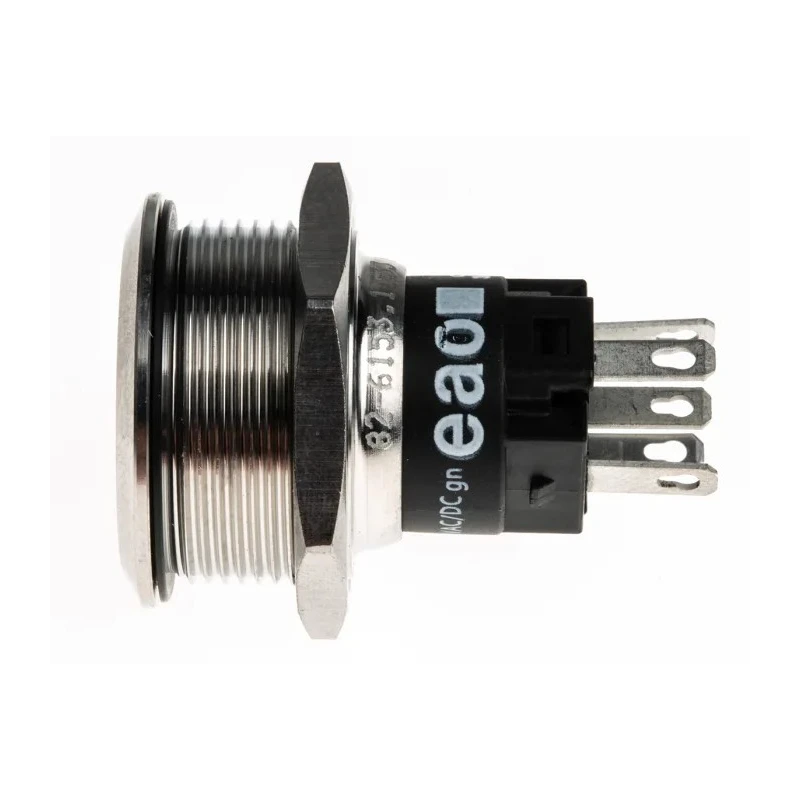

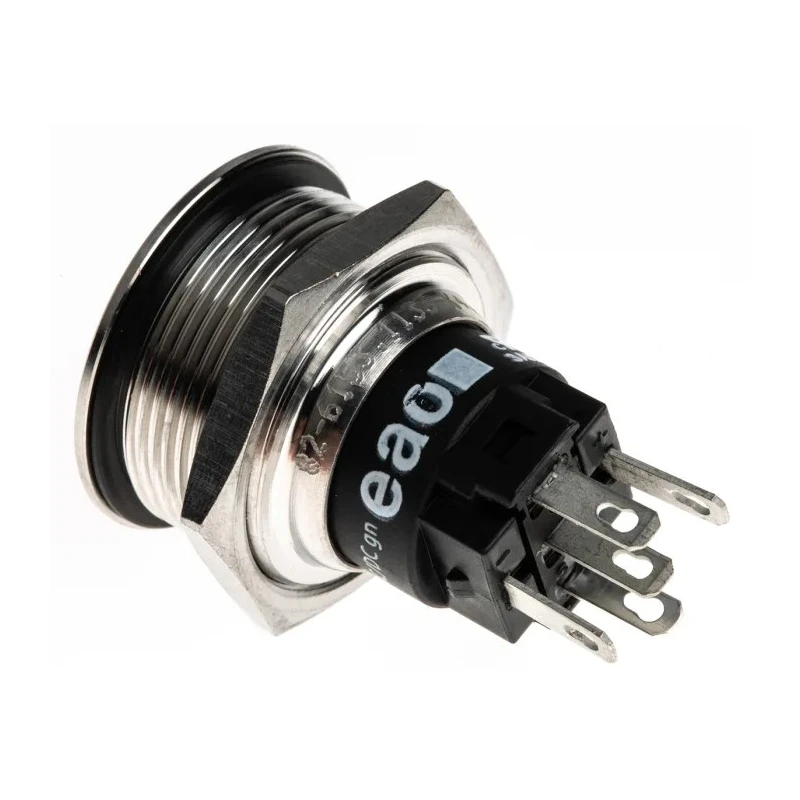

EAO Illuminated Push Button Switch Panel Mount Momentary SPDT Green LED IP65 IP67 240V 24V 82-6153.1133



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	24V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

Stainless steel construction provides corrosion and impact resistance.
Flush mounting design prevents accidental activation.
Gold-plated silver contacts ensure efficient and durable switching.
IP67 rating permits submersion up to 1 meter for 30 minutes.
Round actuator with silver color and green illuminated LED.
Suitable for 22.3 mm panel cutout size and panel mounting.
Supports SPDT (single pole double throw) contact configuration.
Operates with contact DC voltage up to 240V and AC voltage 24V.

Product Description

EAO 82-6153.1133 Illuminated Push Button Switch is a high-quality, momentary push button designed for panel mounting with a 22.3 mm cutout. Featuring a robust stainless steel body and vandal-resistant design, this switch is ideal for industrial, medical, automotive, and factory machinery applications requiring durable and reliable operation.

The green illuminated LED ring enhances visibility in varied lighting conditions, while the flush mounting reduces accidental activation risks. This push button switch offers SPDT contact configuration with gold-plated silver contacts for superior conductivity and corrosion resistance. It supports a contact DC voltage rating of 240 V and AC voltage rating of 24 V, with a current rating of 3 A.

With an IK10 impact resistance level and IP67 ingress protection, the switch is dust-tight and waterproof for use in harsh or exposed environments. The switch requires a low actuating force between 4 and 7 newtons, providing crisp tactile feedback over 1 million operating cycles.

Stainless steel housing for robust vandal resistance and corrosion protection. Flush mount panel installation for sleek and safe operation. Green LED illumination for clear signaling. SPDT gold-plated contacts for reliable switching performance.

IP65 and IP67 rated for dust and water ingress protection. Suitable for industrial, medical, automotive, and machinery equipment. Certified standards include CB, CCC, cUL, and UL for quality assurance.

This Push Button Switch is manufactured in Switzerland and designed to meet demanding industrial and commercial environments. Browse the Electronics & Electricals category at EnvMart for more switches, push button components, and industrial controls to complete your equipment setup.
