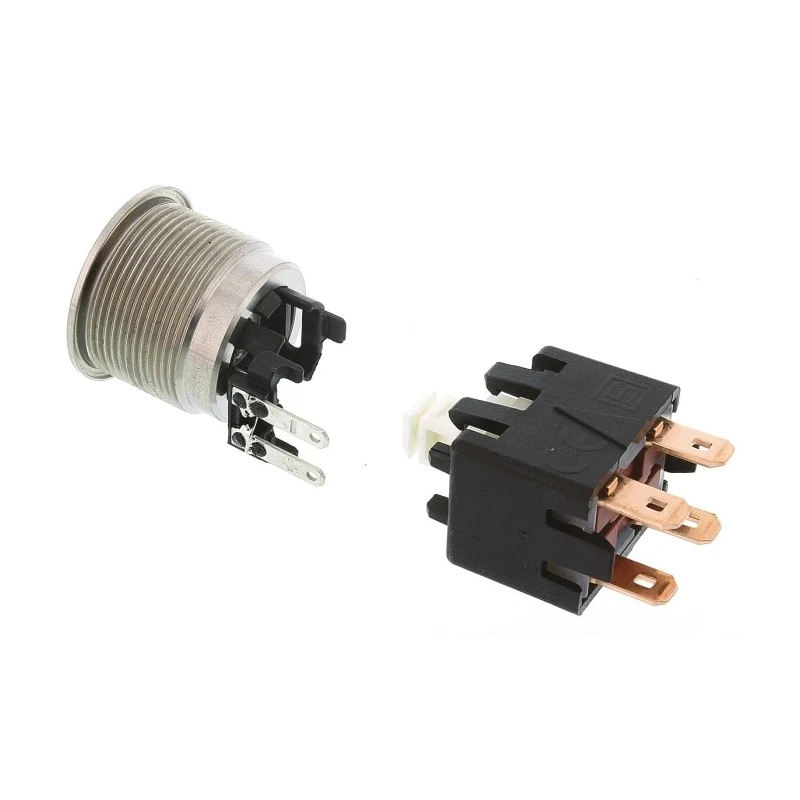

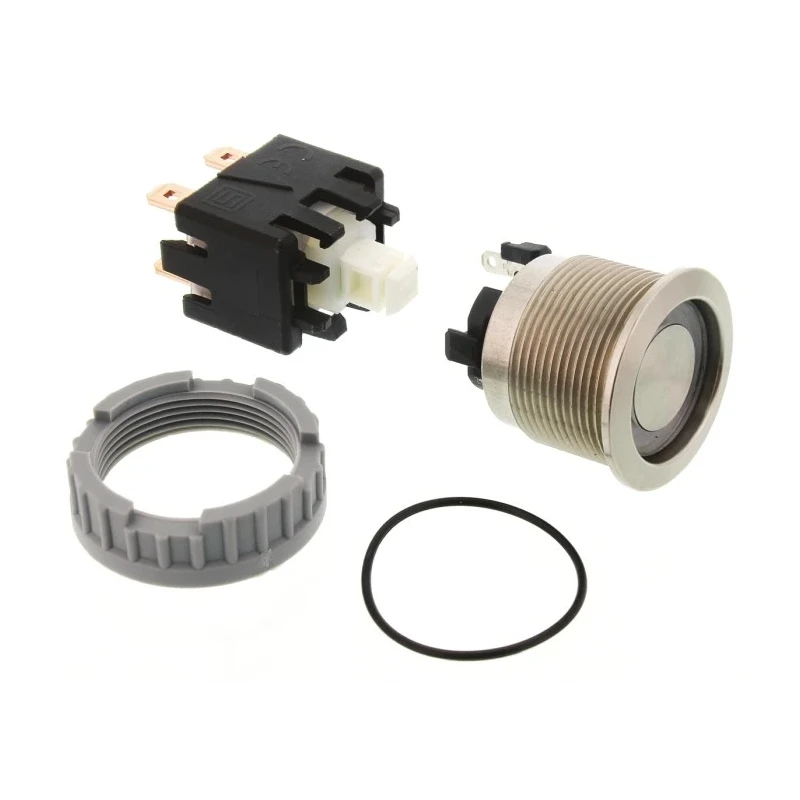

Schurter MSM LA 22 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Red 1241.6834.1121000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, RoHS, IEC, CSA |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a natural color actuator and red LED illumination for clear visual status indication.
- Designed for a 22 mm panel cutout with DPDT contact configuration.
- Suitable for use within temperature ranges from -20°C to 85°C.
- Provides high contact current rating of 12A at 125V dc and 250V ac voltages.
- Constructed with IP00/IP64 rated housing ensuring protection against dust and splashing water.
- Offers long mechanical life with up to 150,000 operations and robust IK07 shock resistance.
- Quick connect terminals allow for efficient and reliable wiring installation.
- Compliant with UL, RoHS, IEC, and CSA standards and approvals.
Product Description
Schurter 1241.6834.1121000 MSM LA 22 Series Illuminated Push Button Switch is a robust, panel-mount device optimized for industrial, electrical, and automation control applications. This latching switch incorporates a 22 mm diameter panel cutout and a DPDT contact configuration suited for versatile switching needs.
The actuator features a natural color with a red LED illumination that provides visible switching status with a wide viewing angle of 180°. Designed to operate in harsh environments, this switch complies with IP00/IP64 ingress protection ratings, giving dust and splash protection for reliable performance.
Operating temperature ranges from -20°C up to 85°C allow for deployment in diverse climatic conditions. It supports contact voltages of 125V dc and 250V ac with a high contact current rating of 12A, making it suitable for medium-power circuits.
This push button switch also boasts an IK07 shock resistance rating (according to DIN EN 50102) ensuring mechanical robustness against impacts. It features a mechanical lifetime of up to 150,000 cycles with a tactile actuator travel of 4.5 mm and operating force of 10N. The quick connect tab terminals enable fast and secure connections.
Natural color actuator with red LED illumination for clear status display. Panel cutout size of 22 mm with latching switch operation. Durable IP00/IP64 rated stainless steel housing suitable for harsh environments. Supports 125V dc and 250V ac contact voltages with 12A contact current.
Mechanical life of up to 150,000 operations with IK07 shock resistance. Quick connect terminals for easy installation and maintenance. Certified to international standards including UL, RoHS, IEC, and CSA.
Ideal for industrial automation, electrical panels, equipment control, and manufacturing applications where reliability and visual feedback are critical. This Schurter illuminated push button switch ensures durability and operational safety in demanding environments.
Explore more Push Button Switches and related electrical components on EnvMart for diverse industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this switch is 85°C, making it suitable for various climatic conditions.
It has a contact current rating of 12A, which is suitable for medium-power circuits.
This switch supports contact voltages of 125V dc and 250V ac, accommodating different electrical systems.
The switch has an IP00/IP64 ingress protection rating, providing protection against dust and splashing water.
It boasts a mechanical life of up to 150,000 operations, ensuring longevity in use.
The required panel cutout size for this switch is 22 mm, designed for standard panel mounting.
It uses quick connect tab terminals, allowing for efficient and reliable wiring installation.
The actuator is natural in color and has a button style, providing clear visual feedback when activated.
This model is compliant with UL, RoHS, IEC, and CSA standards, ensuring it meets international safety and quality requirements.
The minimum operating temperature for this switch is -20°C, allowing it to function in colder environments.
It is ideal for industrial automation, electrical panels, equipment control, and manufacturing applications where visual feedback is critical.
