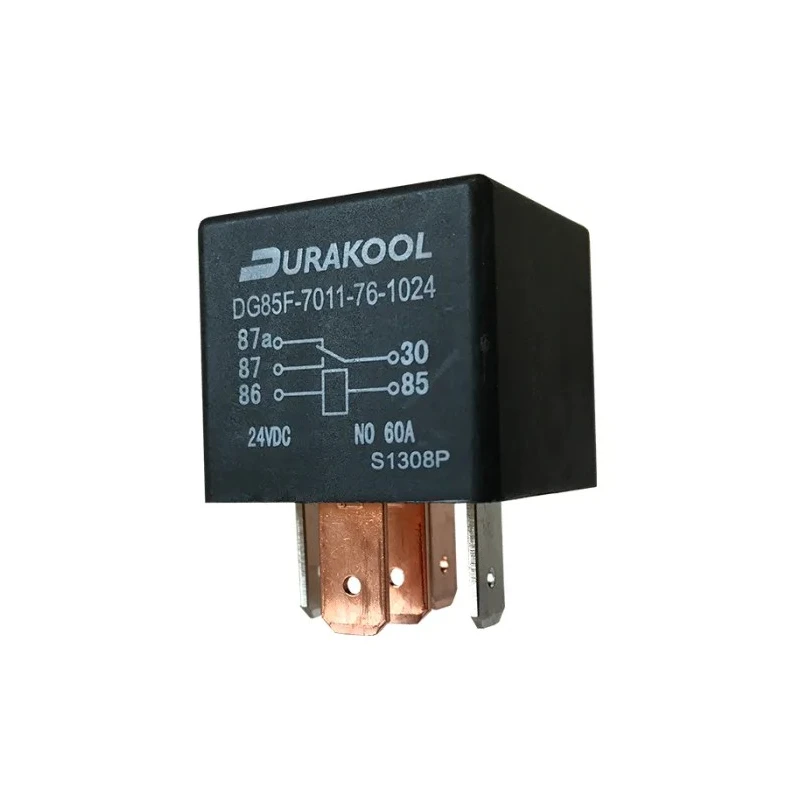

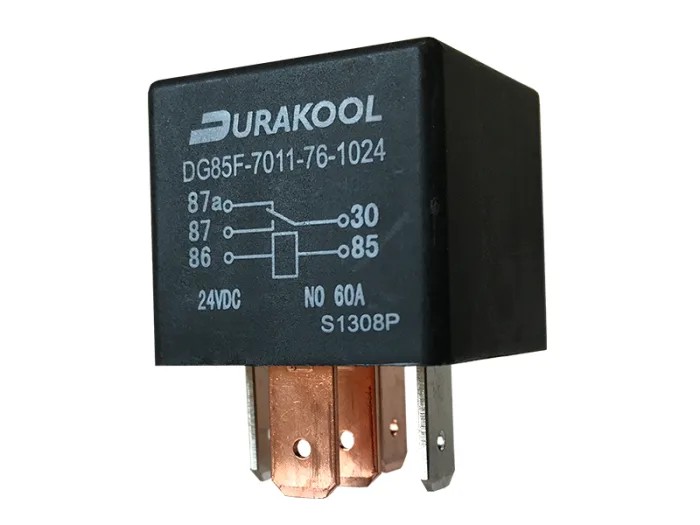

Durakool Power Relay 24V DC Coil 60A Switching Current SPDT DG85F-7011-76-1024-DR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 25mm |
| Length | 28.3mm |
| Model | DG85F-7011-76-1024-DR |
| Width | 28.3mm |
| Contact Material | Silver Tin Oxide Indium |
| Series | DG85F |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 60A |
| Terminal type | Quick Connect |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 250Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 2.3W |
Key Features
- Miniature automotive relay with high expected life cycle.
- Non-latching coil design enables reliable switching.
- High resistance to inrush current ensures durability.
- Supports switching voltage of 24V DC and 24V AC.
- Standard footprint ideal for DC motor control applications.
- Coil power consumption is 2.3W for efficient operation.
- Silver Tin Oxide Indium contact material offers low contact resistance.
- Operating temperature range from -40°C to 125°C for various environments.
Product Description
Durakool DG85F-7011-76-1024-DR power relay is a robust and reliable miniature automotive relay designed for demanding DC motor control and switching applications. Featuring a 24V DC coil voltage with a switching current capability of 60A, this single-pole double-throw (SPDT) relay offers excellent performance with a non-latching coil and a high expected lifecycle.
The relay has a high resistance to inrush current and a high continuous DC current capacity, making it ideal for industrial and automotive environments requiring dependable switching under heavy loads. It supports switching voltages of 24V DC and 24V AC and is compliant with the RoHS directive, ensuring environmental safety and regulatory compliance.

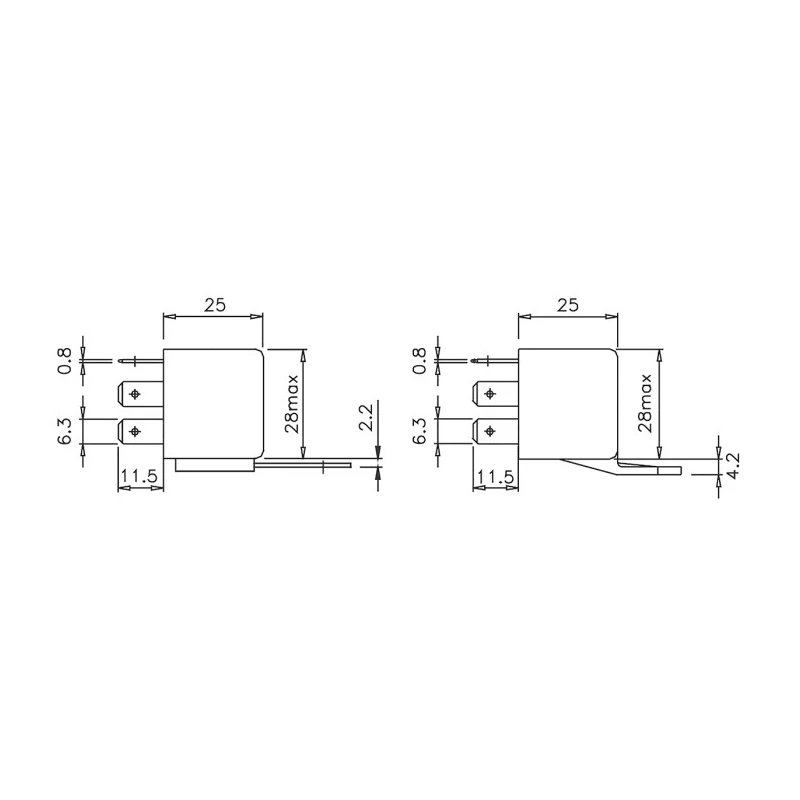

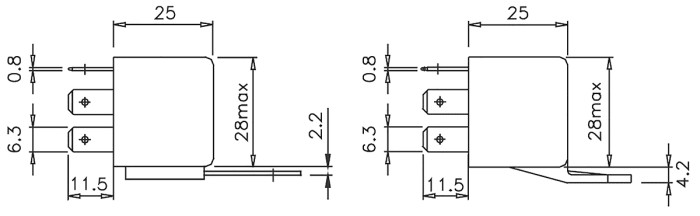

Constructed with Silver Tin Oxide Indium contacts, the relay delivers low contact resistance of 100 milliohms, which enhances switching efficiency and reduces power losses. The coil resistance is 250 ohms, drawing a coil power of just 2.3 watts. The compact dimensions of length 28.3 mm, width 28.3 mm, and height 25 mm conform to industry-standard footprints, facilitating easy integration into control panels and circuit boards.
Operating temperature ranges from -40°C minimum up to a maximum of 125°C, allowing use in harsh environments typical in industrial, automotive, and manufacturing applications. The relay’s quick connect terminal type offers ease of installation and secure electrical connections.
Miniature automotive relay with high expected life cycle. Non-latching coil design enables reliable switching. High resistance to inrush current ensures durability. Supports switching voltage of 24V DC and 24V AC. Standard footprint ideal for DC motor control applications.
Coil power consumption is 2.3W for efficient operation. Silver Tin Oxide Indium contact material offers low contact resistance. Operating temperature range from -40°C to 125°C for various environments.
This product is suitable for use in industrial automation, automotive electrical systems, HVAC control, manufacturing machinery, and other commercial electrical applications requiring reliable power switching. Durakool power relays are known for quality, durability, and excellent performance in rigorous duty cycles.
Explore more Power Relays and electrical components in the Electronics & Electricals category at EnvMart to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 60A, making it suitable for high-load applications.
The relay operates with a coil voltage of 24V DC, which is essential for its functionality in various applications.
The dimensions of this unit are 28.3 mm in length, 28.3 mm in width, and 25 mm in height, conforming to standard footprints for easy integration.
It features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching capabilities.
The operating temperature range is from -40°C to 125°C, making it suitable for use in various harsh environments.
The contact material is Silver Tin Oxide Indium, which provides low contact resistance of 100 milliohms for efficient switching.
The coil resistance is 250 ohms, which is important for determining the relay's power consumption.
The coil power consumption is 2.3 watts, ensuring efficient operation during use.
It supports switching voltages of both 24V DC and 24V AC, allowing for flexibility in application.
It features a quick connect terminal type, facilitating easy installation and secure connections.
Yes, this relay is compliant with the RoHS directive, ensuring it meets environmental safety and regulatory standards.
This model is suitable for industrial automation, automotive electrical systems, HVAC control, and manufacturing machinery, among other applications.
